ISZ520N20NM6

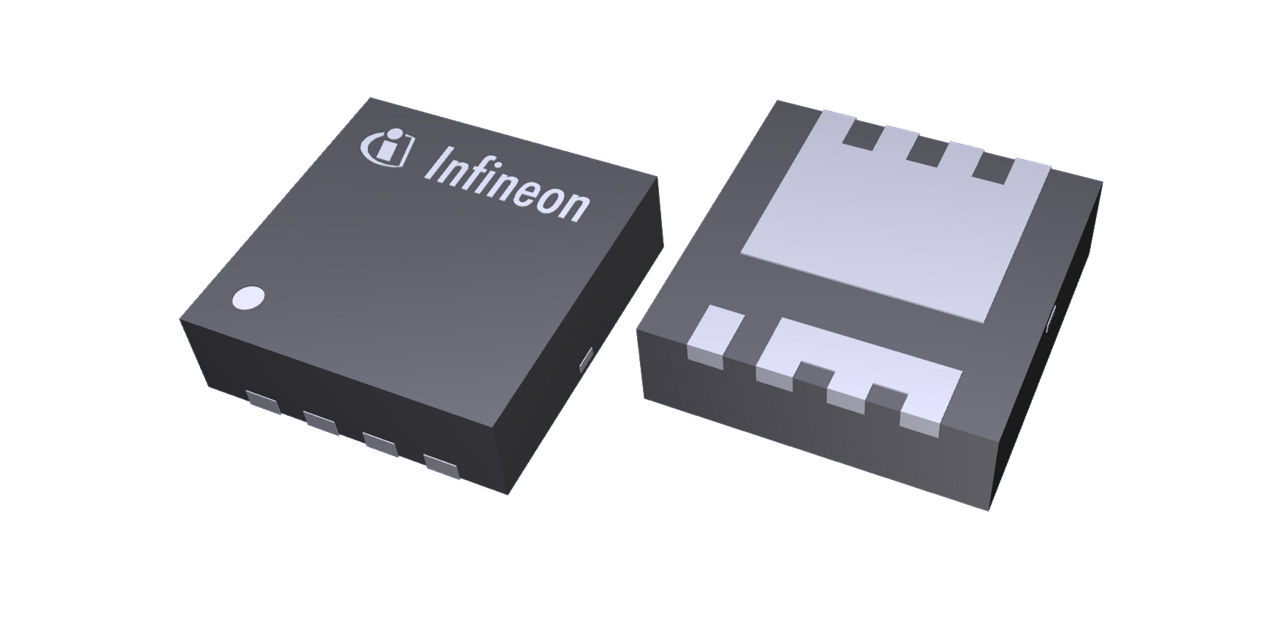

OptiMOS™ 6 power MOSFET 200 V in PQFN 3.3x3.3 package
データシート
パッケージ
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISZ520N20NM6
ISZ520N20NM6
EA.
データシート

Product details

  • ID (@25°C) max
    26 A
  • QG (typ @10V)
    9.9 nC
  • RDS (on) (@10V) max
    52 mΩ
  • VDS max
    200 V
  • VGS(th)
    3.7 V
  • Package
    PQFN 3.3 x 3.3 Fused Lead
  • Budgetary Price €/1k
    0.69
  • Operating Temperature
    -55 °C to 175 °C
  • Polarity
    N
推奨
OPN
ISZ520N20NM6ATMA1
製品ステータス active and preferred
インフィニオンパッケージ
PG-TSDSON-8
パッケージ名 PQFN 3.3 x 3.3
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー No
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
PG-TSDSON-8
パッケージ名 PQFN 3.3 x 3.3
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
ISZ520N20NM6 OptiMOS™ 6 200 V is setting the new technology standard. It addresses the need for high power density, high efficiency, and high reliability. The OptiMOS™ 6 200 V technology was designed for optimal performance in motor drive applications such as LEV, forklifts, and drones. due to the industry-leading RDS(on), improved switching behavior, and improved current sharing the new OptiMOS™ 6 enables higher power density, less paralleling, and better EMI behavior. The improved switching behavior makes it also an ideal choice for any type of switching application such as telecom, server, solar, or audio. Additionally, the combination of wide SOA and industry-leading RDS(on) result in a perfect fit for static switching applications such as BMS.

機能

  • 42 % lower RDS(on)
  • Excellent EMI & Switching behavior due to:
  • 45% lower QRR(typ)
  • 42% lower QOSS(typ)
  • More than 3 times softer diode
  • Improved capacitance linearity
  • Tight VGS(th) and low transconductance for ease of paralleling
  • Improved SOA to enhance robustness

利点

  • Low conduction losses
  • Low switching losses
  • Stable operation with improved EMI
  • Less paralleling required
  • Better current sharing when paralleling
  • RoHS compliant, lead free
  • MSL 1 classified according to J-STD-020
