IRF6715M

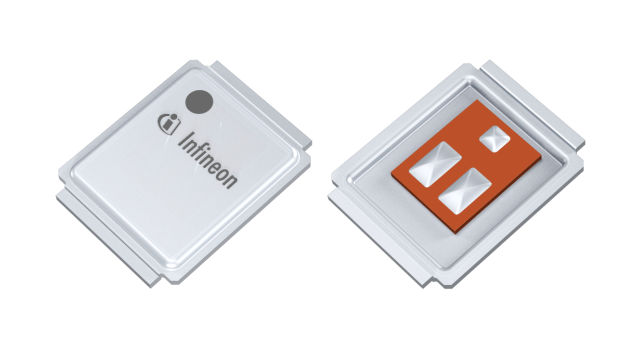

25V Single N-Channel StrongIRFET™ Power MOSFET in a DirectFET™ MX package
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRF6715M
IRF6715M
データシート

Product details

  • ID (@25°C) max
    180 A
  • Ptot max
    78 W
  • Ptot (@ TA=25°C) max
    2.8 W
  • Qgd
    12 nC
  • QG (typ @4.5V)
    40 nC
  • RDS (on) (@10V) max
    1.6 mΩ
  • RDS (on) (@4.5V) max
    2.7 mΩ
  • RthJC max
    1.6 K/W
  • Tj max
    150 °C
  • VDS max
    25 V
  • VGS(th)
    1.9 V
  • VGS max
    20 V
  • Package
    DirectFET (M)
  • Micro-stencil
    IRF66MX-25
  • Moisture Sensitivity Level
    1
  • Budgetary Price €/1k
    1.07
  • Operating Temperature
    -40 °C to 150 °C
  • Mounting
    SMD
  • Polarity
    N
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

機能

  • Optimized for broadest availability from distribution partners
  • Product qualification according to JEDEC standard
  • High-current rating
  • Dual-side cooling capability
  • Low package height of 0.7mm
  • Low parasitic (1-2 nH) inductance package
  • 100% lead-free (No RoHS exemption)

利点

  • Wide availability from distribution partners
  • Industry standard qualification level
  • High current carrying capability
  • Optimum thermal performance
  • Compact form factor
  • High efficiency
  • Environmentally friendly

用途
