IPP60R520C6
IPP60R520C6
データシート

製品仕様情報

  • ID (@25°C) (最大)
    8.1 A
  • ID (最大)
    8.1 A
  • IDpuls (最大)
    22 A
  • Ptot (最大)
    66 W
  • QG
    23.4 nC
  • QG (typ @10V)
    23.4 nC
  • RDS (on) (最大)
    520 mΩ
  • RDS (on) (@10V) (最大)
    520 mΩ
  • RthJA (最大)
    62 K/W
  • RthJC (最大)
    1.9 K/W
  • Rth
    1.9 K/W
  • VDS (最大)
    600 V
  • VGS(th) 範囲
    2.5 V～3.5 V

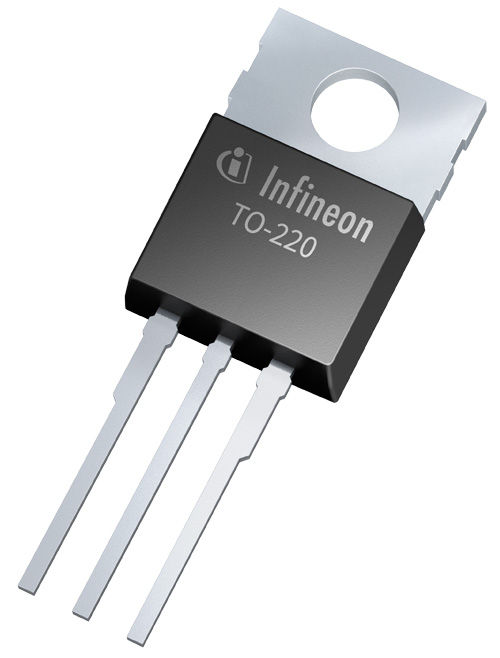

  • パッケージ
    TO-220
  • 動作温度 (最小)
    -55 °C
  • 実装
    THT
  • 極性
    N
OPN
製品ステータス
インフィニオン パッケージ
パッケージ名
梱包サイズ
梱包形態
MSL (湿度感受性レベル)
防湿梱包
鉛フリー
ハロゲンフリー
RoHS対応
Infineon stock last updated:
CoolMOS™ C6 combines Infineon's experience as the leading superjunction MOSFET supplier with best-in-class innovation. The C6 devices provide all benefits of a fast switching superjunction MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler. 600V CoolMOS™ C6 is replacement for 600V CoolMOS™ C3650V CoolMOS™ C6 is replacement for 650V CoolMOS™ C3

特長

  • Easy control of switching behavior
  • Extremely low losses due to very low Figure of Merit (R DS(on)* Q g and E oss)
  • Very high commutation ruggedness
  • Easy to use
  • Better light load efficiency compared to C3
  • Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
  • Better price performance in comparison to previous CoolMOS™ generations
  • More efficient, more compact, lighter and cooler

利点

  • Improved power density
  • Improved reliability
  • General purpose part can be used in both soft and hard switching topologies
  • Better light load effciency
  • Improved effciency in hard switching applications
  • Improved ease-of-use
  • Reduces possible ringing due to pcb layout and package parasitic effects
