IPAW60R360P7S

Optimized superjunction MOSFETs merging high energy efficiency with ease-of-use
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPAW60R360P7S
IPAW60R360P7S
データシート

Product details

  • ID (@25°C) max
    9 A
  • ID max
    9 A
  • IDpuls max
    26 A
  • Ptot max
    22 W
  • Qgd
    4 nC
  • QG
    13 nC
  • QG (typ @10V)
    13 nC
  • RDS (on) max
    360 mΩ
  • RDS (on) (@10V) max
    360 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    5.61 K/W
  • Rth
    5.61 K/W
  • VDS max
    600 V
  • VGS(th)
    3.5 V

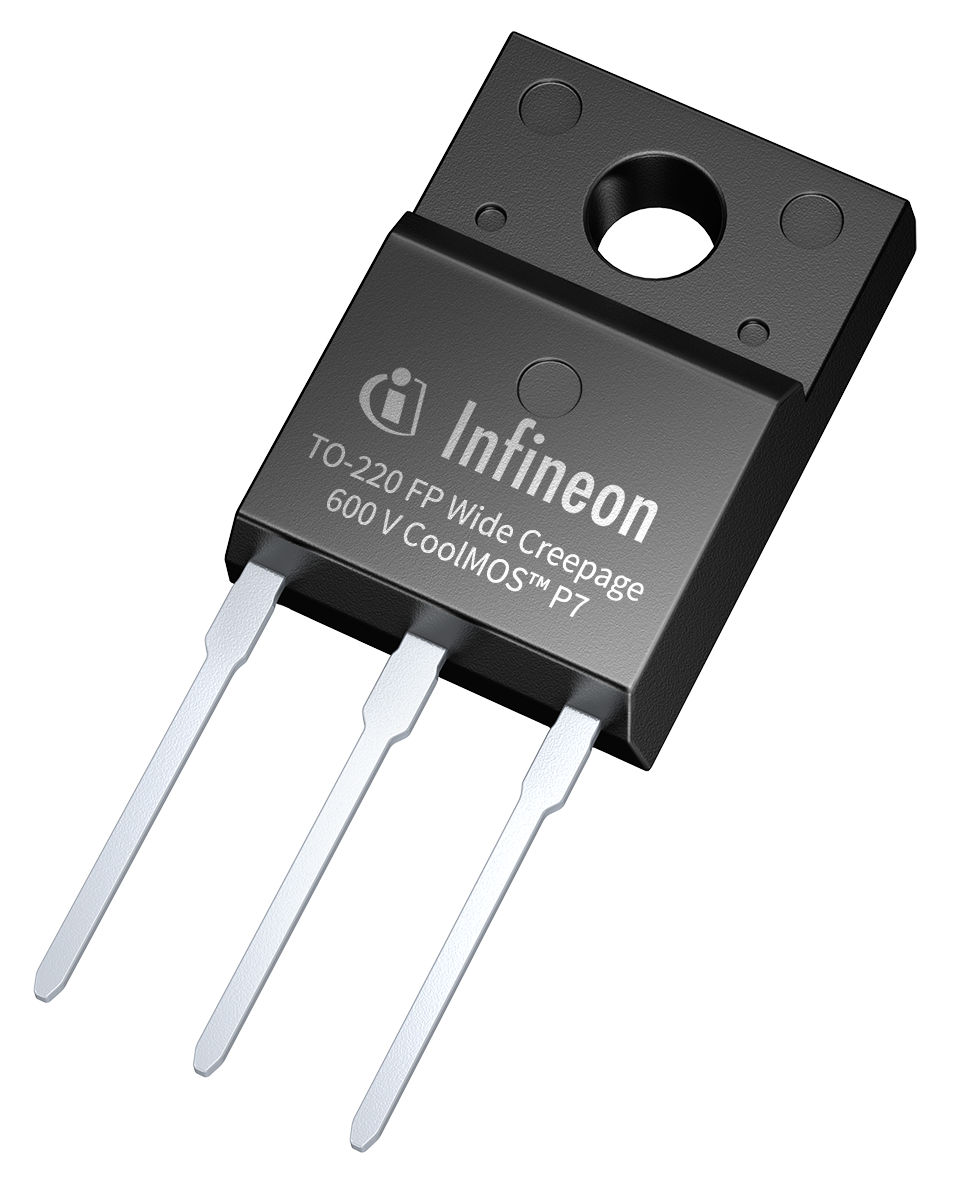

  • Package
    TO220 FullPAK wide creepage
  • Pin Count
    3 Pins
  • Budgetary Price €/1k
    0.4
  • Operating Temperature
    -40 °C to 150 °C
  • Mounting
    THT
  • Polarity
    N
  • Special Features
    price/performance
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
The 600V CoolMOS™ P7 superjunction (SJ) MOSFET is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class R onxA and the inherently low gate charge (Q G) of the CoolMOS™ 7th generation platform ensure its high efficiency.

機能

  • 600V P7 enables excellent FOM R DS(on)xE oss andR DS(on)xQ G
  • ESD ruggedness of ≥ 2kV (HBM class 2)
  • Integrated gate resistor R G
  • Rugged body diode
  • Wide portfolio in through hole and surface mount packages
  • Both standard grade and industrial grade parts are available

利点

  • Excellent FOMs R DS(on)xQ G/R DS(on)xE oss enable higher efficiency
  • Ease-of-use
  • Ease-of-use in manufacturing environments by stopping ESD failures occurring
  • Integrated R G reduces MOSFET oscillation sensitivity
  • MOSFET is suitable for both hard and resonant switching topologies such as PFC and LLC
  • Excellent ruggedness during hard commutation of the body diode seen in LLC topology
  • Suitable for a wide variety of end applications and output powers
  • Parts available suitable for consumer and industrial applications
