アクティブで優先
RoHS準拠
鉛フリー

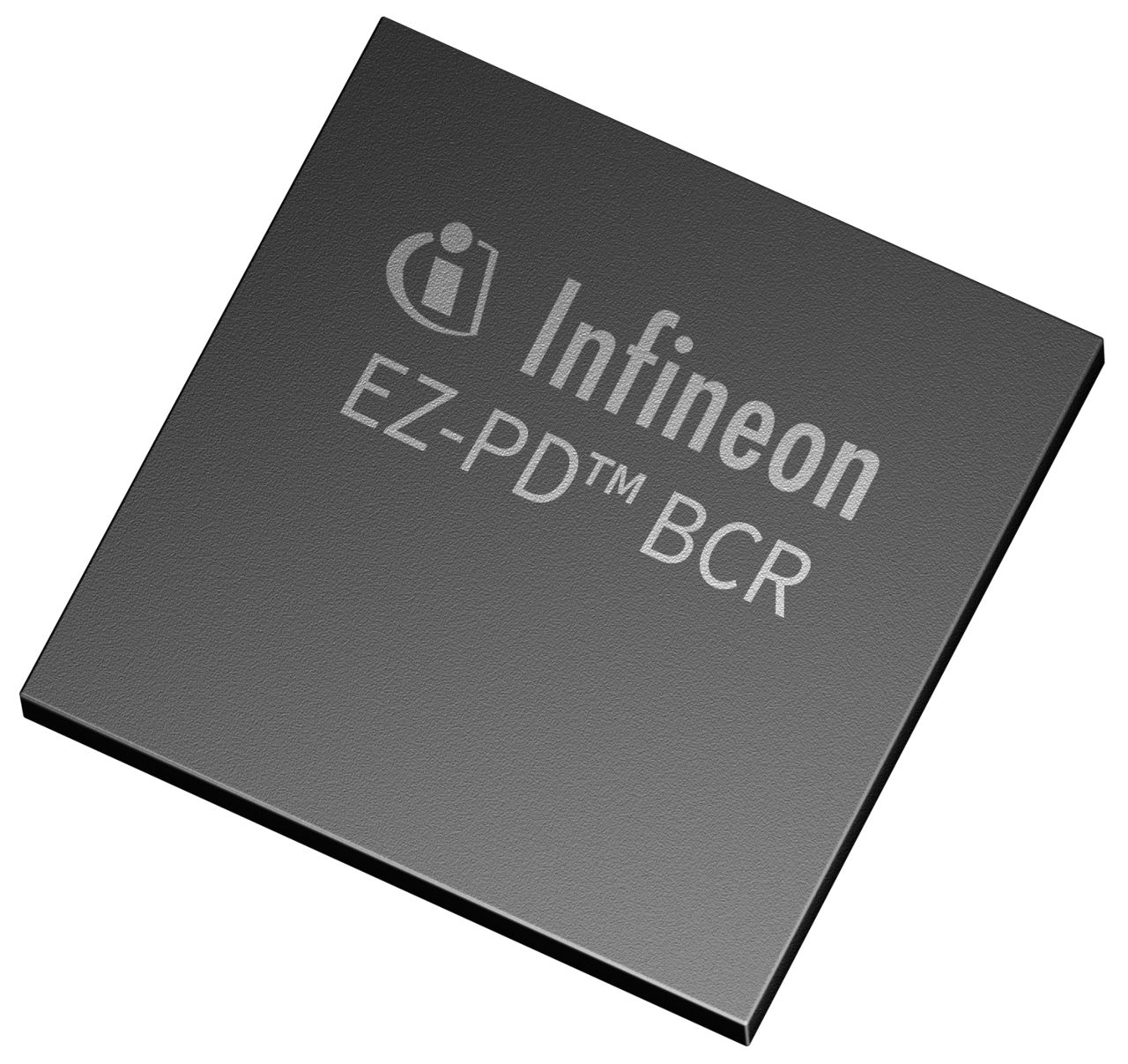

CYPD3176-24LQXQ

EZ-PD™ Barrel Connector Replacement Plus (BCR-Plus) in tray package
データシート
パッケージ
ボード
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPD3176-24LQXQ
CYPD3176-24LQXQ
EA.
データシート

Product details

  • USB Standard
    USB-PD 3.1
  • VBUS Short Protection
    Y
  • VCONN FET
    N
  • Applications
    Rechargeable devices, VR headsets, Personal care products, Power tools, Smart speakers
  • Package Type
    24-pin QFN
  • Peak Reflow Temp
    260 °C
  • Family
    EZ-PD™ BCR-plus
  • Processor Type
    ARM® Cortex®-M0
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    3 V to 24.5 V
  • Temperature grade
    Extended Industrial
  • Product Description
    USB Type-C Port Controller for Power Sinks
  • Product Category
    Charging port controller
推奨
OPN
CYPD3176-24LQXQ
製品ステータス active and preferred
インフィニオンパッケージ
PG-VQFN-24
パッケージ名 QFN-24 (002-16934)
包装サイズ 4900
包装形態 TRAY
水分レベル 3
モイスチャーパッキン DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
PG-VQFN-24
パッケージ名 QFN-24 (002-16934)
包装サイズ 4900
包装形態 TRAY
水分レベル 3
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
 EZ-PD™ Barrel Connector Replacement-Plus (BCR-Plus) CYPD3176-24LQXQ is the tray packing option of the EZ-PD™ BCR-Plus family of highly-integrated pre-programmed USB-C port controllers for power sink applications. It has the ability to support ports with or without USB data capability, and it mainly targets electronic devices that have legacy barrel connectors (up to 100 W) or USB micro-B connectors for power input such as drones, smart speakers, power tools, and other rechargeable devices. EZ-PD™ BCR-Plus complies with USB Type-C and USB 3.1 Power Delivery (PD) standards and enables users to quickly convert their devices from being powered through a barrel connector to being powered via the USB-C connector with few external components and no additional firmware development. The EZ-PD™ BCR-Plus CYPD3176 device ships with pre-programmed firmware; additional configuration changes are possible with the EZ-PD™ Configuration Utility. EZ-PD™ BCR-Plus integrates a complete USB-C transceiver, USB PD policy manager, a load switch controller with a soft start, all termination resistors required for a USB-C port, and system-level ESD protection. It is available in a 24-pin QFN package.

機能

  • USB Type-C charging (5 V @ 0.5 A, 0.9 A, 1.5 A, 3 A) up to 15 W
  • USB Power Delivery (5 V, 9 V, 12 V, 15 V, 20 V, up to 5 A) up to 100 W
  • Legacy charging standards (BC1.2 & others)
  • Programmable Power Supply (PPS)
  • Integrated fault protection: VBus-to-CC short, OVP, OCP
  • Integrated ESD protection: IEC61000-4-2 level 4C
  • Integrated 24.5 V LDO, VBus gate driver, VBus discharge FET
  • Easy configuration through Host Programming Interface (HPI)
  • Customization through EZ-PD™ Configuration Utility
  • Extended industrial temperature range: -40°C to +105°C
  • Packing type: tray

利点

  • Easily covert incompatible power connectors to USB-C
  • No firmware development required
  • No expert knowledge of USB-C Power Delivery required
  • Interoperable with any USB-C chargers or charging ports

Getting started:

  1. Download the EZ-PD™ BCR-Plus datasheet
  2. Order the EZ-PD™ BCR-Plus CY4534 evaluation kit
  3. Watch the online training to understand everything you need to know about powering electronic devices with EZ-PD™ BCR
