TSL111A CHZ1M512B0Q
Active and preferred
RoHS対応

TSL111A CHZ1M512B0Q

AIROC™ UWB for Automotive — Low power consumption: provable security and cost optimized sensing.
製品概要
パッケージ

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TSL111A CHZ1M512B0Q
TSL111A CHZ1M512B0Q
製品概要


製品仕様情報

  • NVM (不揮発性メモリ)
    512 kByte
  • PHY Layer
    IEEE 802.15.4z HRP and AIROC™ Low Power Mode
  • RAM
    64 kByte
  • Sensing
    Yes
  • Tx and Rx
    1Tx and 1Rx
  • パッケージ
    VQFN-40 with wettable flank
  • 標準
    CCC
  • 温度 範囲
    -40 °C～105 °C
  • 認定
    AECQ 100 Grade 2

推奨
OPN
製品ステータス active and preferred
インフィニオン パッケージ
PG-VQFN-40
パッケージ名 POLARIS Package
梱包サイズ 4000
梱包形態 TAPE & REEL
MSL (湿度感受性レベル) N/A
防湿梱包 DRY
鉛フリー No
ハロゲンフリー Yes
RoHS対応 Yes

製品ステータス
Active
インフィニオン パッケージ
PG-VQFN-40
パッケージ名 POLARIS Package
梱包サイズ 4000
梱包形態 TAPE & REEL
MSL (湿度感受性レベル) -
防湿梱包 DRY
鉛フリー
ハロゲンフリー
RoHS準拠
The AIROC™ TSL111A integrates UWB ranging and sensing in a single device, featuring a dual-PHY architecture (IEEE 802.15.4z and AIROC™ Low Power) that supports a range of automotive applications, including secure vehicle access, in-cabin child presence detection, smart trunk opening, and intrusion detection. For more information on AIROC™ Low Power Mode, please contact our sales team for more information AIROC™ Low Power Mode, please contact our sales team.

特長

  • Dual PHYs - HRP and AIROC™ low-power mode
  • Very low power consumption
  • High receiver sensitivity
  • Provable security
  • High First Path Dynamic Range (FPDR) for NLoS scenario
  • Channel 8, 9, 10 and 12
  • UWB Radar mode
  • Complete solution with CCC MAC

利点

  • Extended keyfob battery lifetime due to minimum power usage
  • Very accurate distance measurements, extended usage area & minimum multipath effect due to higher receiver sensitivity and high FPDR
  • Highest FiRa/CCC security levels (32- and 48 bit) even in challenging NLOS conditions (e.g., back pocket scenarios)
  • Future proof design with front-end designed for Channel 12
  • Cost optimized RF architecture for radar sensing

アプリケーション

図

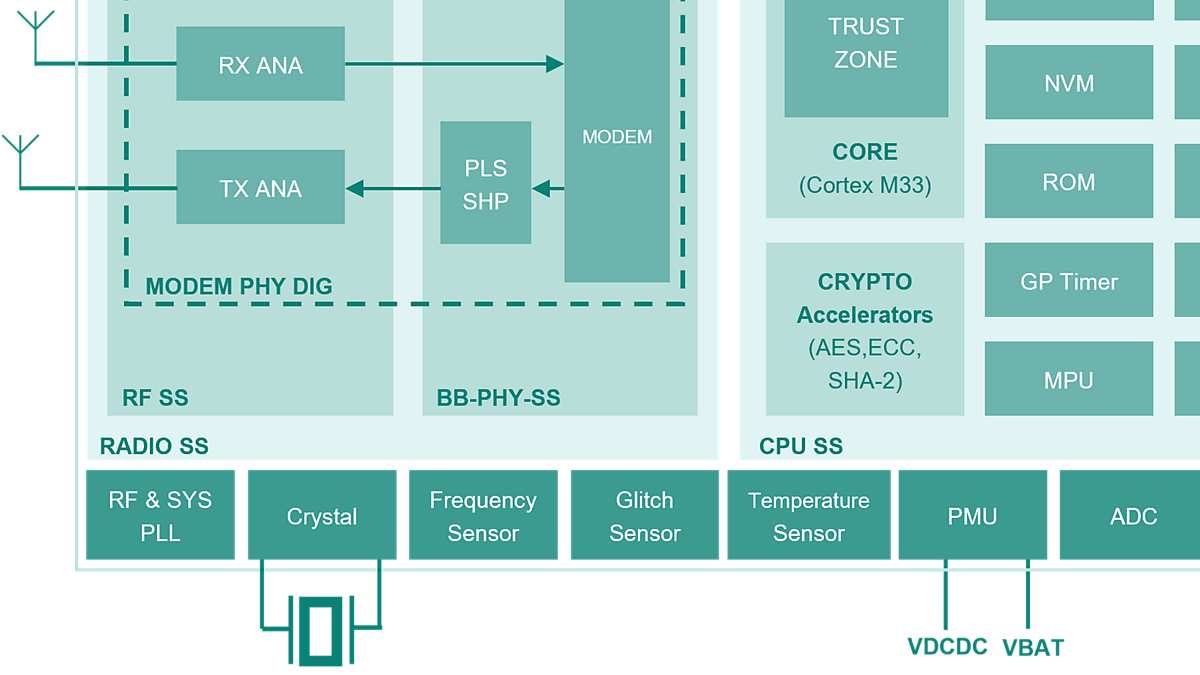

AIROC™ UWB Block diagram
AIROC™ UWB Block diagram
AIROC™ UWB Block diagram AIROC™ UWB Block diagram AIROC™ UWB Block diagram
×
