TSL111A CHZ1M512B0Q
Active and preferred
RoHS Compliant

TSL111A CHZ1M512B0Q

AIROC™ UWB for Automotive — Low power consumption: provable security and cost optimized sensing.
Product Brief
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TSL111A CHZ1M512B0Q
TSL111A CHZ1M512B0Q
Product Brief


Product details

  • NVM
    512 kByte
  • Package
    VQFN-40 with wettable flank
  • PHY Layer
    IEEE 802.15.4z HRP and AIROC™ Low Power Mode
  • Qualification
    AECQ 100 Grade 2
  • RAM
    64 kByte
  • Sensing
    Yes
  • Standard
    CCC
  • Temperature range
    -40 °C to 105 °C
  • Tx and Rx
    1Tx and 1Rx

Recommended
OPN
Product Status active and preferred
Infineon Package
PG-VQFN-40
Package Name POLARIS Package
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes

Product Status
Active
Infineon Package
PG-VQFN-40
Package Name POLARIS Package
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The AIROC™ TSL111A integrates UWB ranging and sensing in a single device, featuring a dual-PHY architecture (IEEE 802.15.4z and AIROC™ Low Power) that supports a range of automotive applications, including secure vehicle access, in-cabin child presence detection, smart trunk opening, and intrusion detection. For more information on AIROC™ Low Power Mode, please contact our sales team for more information AIROC™ Low Power Mode, please contact our sales team.

Features

  • Dual PHYs - HRP and AIROC™ low-power mode
  • Very low power consumption
  • High receiver sensitivity
  • Provable security
  • High First Path Dynamic Range (FPDR) for NLoS scenario
  • Channel 8, 9, 10 and 12
  • UWB Radar mode
  • Complete solution with CCC MAC

Benefits

  • Extended keyfob battery lifetime due to minimum power usage
  • Very accurate distance measurements, extended usage area & minimum multipath effect due to higher receiver sensitivity and high FPDR
  • Highest FiRa/CCC security levels (32- and 48 bit) even in challenging NLOS conditions (e.g., back pocket scenarios)
  • Future proof design with front-end designed for Channel 12
  • Cost optimized RF architecture for radar sensing

Applications

Diagrams

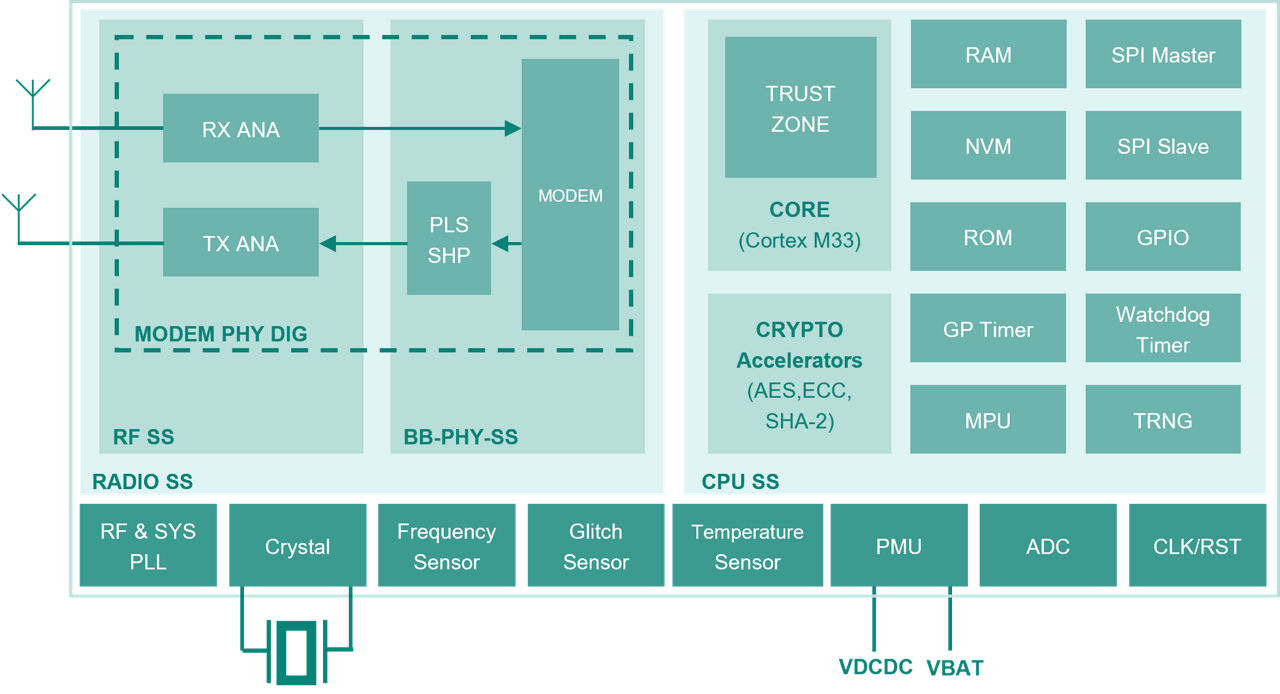

AIROC™ UWB Block diagram
AIROC™ UWB Block diagram
AIROC™ UWB Block diagram AIROC™ UWB Block diagram AIROC™ UWB Block diagram
×
