Active and preferred
RoHS準拠
鉛フリー

OPTIGA AUTHENTICATE S

Enhanced device authentication to protect against counterfeits
データシート
パッケージ
ボード

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

OPTIGA AUTHENTICATE S
OPTIGA AUTHENTICATE S
データシート

Product details

  • EEPROM
    1 kBit, 2 kBit, 5 kBit
  • アプリケーション
    Device Authentication
  • インターフェース
    GPO, SWI, I2C
  • 周囲温度
    -40 °C to 85 °C, -40 °C to 105 °C, -40 °C to 120 °C
  • 納品形態
    PG-TSNP-6-12
  • 製品の説明
    Enhanced device authentication to protect against counterfeits.
  • 非対称暗号
    ECC 163-bit
推奨
OPN
SLE954150017XTSA1
製品ステータス active and preferred
インフィニオンパッケージ
PG-TSNP-6
パッケージ名 N/A
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス
Active
インフィニオンパッケージ
PG-TSNP-6
パッケージ名 -
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
OPTIGA™ Authenticate S is a turnkey hardware-based security solution for any device authentication challenge. The anti-counterfeit solution offers unprecedented levels of configuration flexibility and a range of hardened security features. It is suited to a broad range of applications including single-use disposables, rechargeable batteries for smartphones, portable devices and mobility solutions, as well as computing and robotic systems.

機能

  • 4 authentication modes
  • 4 lifecycle counters
  • 3 types of lockable NVM sizes
  • 3 temperature options
  • 2 ECC 163-bit key pairs and 193-bit ODC
  • 2 serial communication options
  • Host code software – with new OS library
  • 1.5 x 1.5 x 0.38 mm PG-TSNP-6-12 package
  • Asymmetric cryptography
  • Infineon proprietary protection (PRE)
  • mutual authentication
  • Capless Low dropout (LDO) regulator

利点

  • Protection against counterfeited devices
  • Additional customer services
  • No need to invest in security know-how
  • Effortless implementation
  • TSNP SMD pkg optimized for small devices

図

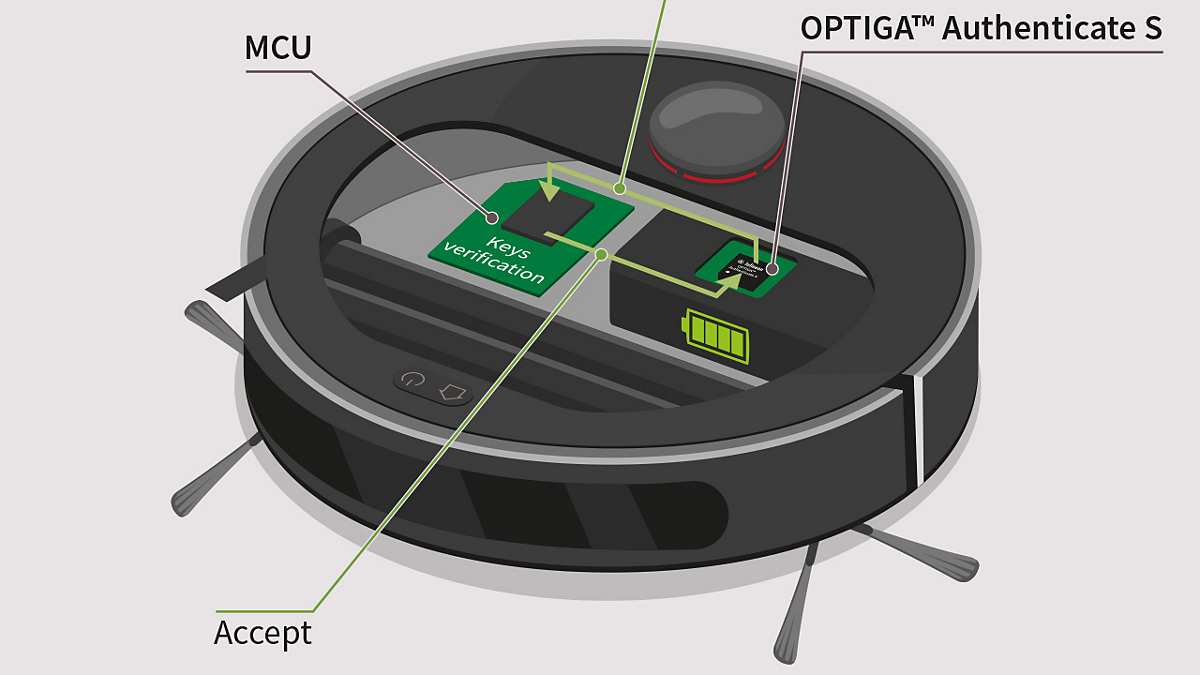

OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: including OPTIGA™ Authenticate S
OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: including OPTIGA™ Authenticate S
OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: including OPTIGA™ Authenticate S OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: including OPTIGA™ Authenticate S OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: including OPTIGA™ Authenticate S

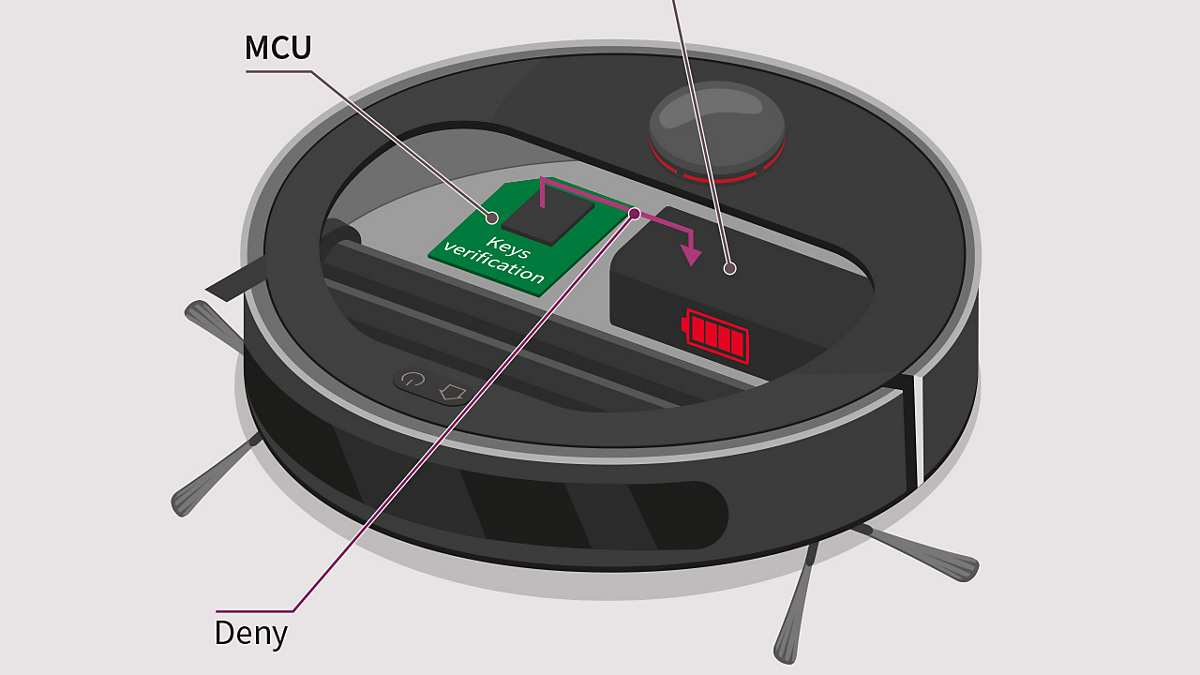

OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: without OPTIGA™ Authenticate S OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: without OPTIGA™ Authenticate S OPTIGA™ Authenticate S allows to check whether replacement parts like batteries are genuine: without OPTIGA™ Authenticate S
×
