IRS2301S

600 V high-side and low-side gate driver IC
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

Product details

  • VBS UVLO (On)
    4.1 V
  • VBS UVLO (Off)
    3.8 V
  • VCC UVLO (On)
    4.1 V
  • VCC UVLO (Off)
    3.8 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Configuration
    High-side and low-side
  • Channels
    2
  • Turn Off Propagation Delay
    200 ns
  • Turn On Propagation Delay
    220 ns
  • Input Vcc
    5 V to 20 V
  • Output Current (Sink)
    0.35 A
  • Output Current (Source)
    0.2 A
  • Qualification
    Industrial
  • Voltage Class
    600 V
OPN
IRS2301STRPBF
製品ステータス active and preferred
インフィニオンパッケージ
パッケージ名 N/A
包装サイズ 2500
包装形態 TAPE & REEL
水分レベル 2
モイスチャーパッキン DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
パッケージ名 -
包装サイズ 2500
包装形態 TAPE & REEL
水分レベル 2
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
EiceDRIVER™ 600 V high and low-side gate driver IC with typical 0.2 A source and 0.35 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs .

機能

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 5 V to 20 V
  • Undervolt. lockout for both channel
  • 3.3, 5 & 15 V input logic compatib.
  • Matched prop. delay for both chan.
  • Outputs in phase with inputs
  • Lower di/dt gate driver

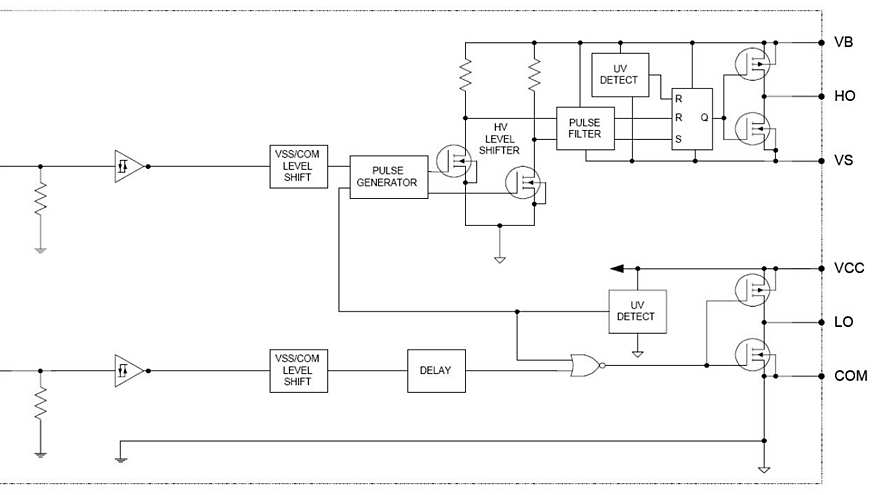

Circuit_Diagramm_IRS2301S

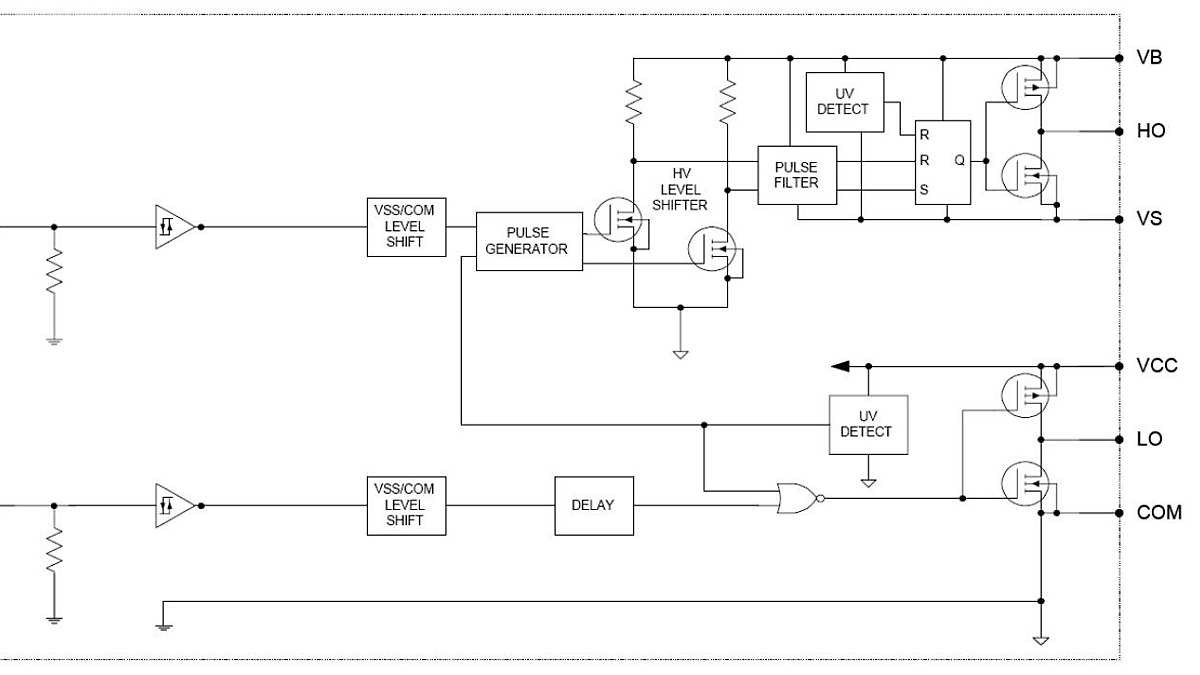

Circuit_Diagramm_IRS2301S
Circuit_Diagramm_IRS2301S Circuit_Diagramm_IRS2301S Circuit_Diagramm_IRS2301S
