CYW89310
Active and preferred
RoHS対応
鉛フリー

CYW89310

Dual-Mode Bluetooth and Bluetooth LE 6.0 for Automotive Applications with LE-Audio

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW89310
CYW89310


製品仕様情報

  • Bluetoothインターフェース
    UART
  • Bluetooth仕様
    Bluetooth 5.4
  • Bluetooth機能
    Bluetooth 5.4 w/ LE-Audio
  • ドライバー サポート
    Linux, Android, RTOS
  • 動作温度 範囲
    -40 °C~85 °C

OPN
CYW89310CUBGTXTMA1
製品ステータス active and preferred
インフィニオン パッケージ
パッケージ名 WLBGA-143 (002-33373)
梱包サイズ 5000
梱包形態 TAPE & REEL
MSL (湿度感受性レベル) 1
防湿梱包 NON DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS対応 Yes
組立国
SG
ウェハ製造国
TW
Infineon stock last updated:
個. 在庫あり

製品ステータス
Active
インフィニオン パッケージ
パッケージ名 WLBGA-143 (002-33373)
梱包サイズ 5000
梱包形態 TAPE & REEL
MSL (湿度感受性レベル) 1
防湿梱包 NON DRY
鉛フリー
ハロゲンフリー
RoHS準拠
組立国
SG
ウェハ製造国
TW

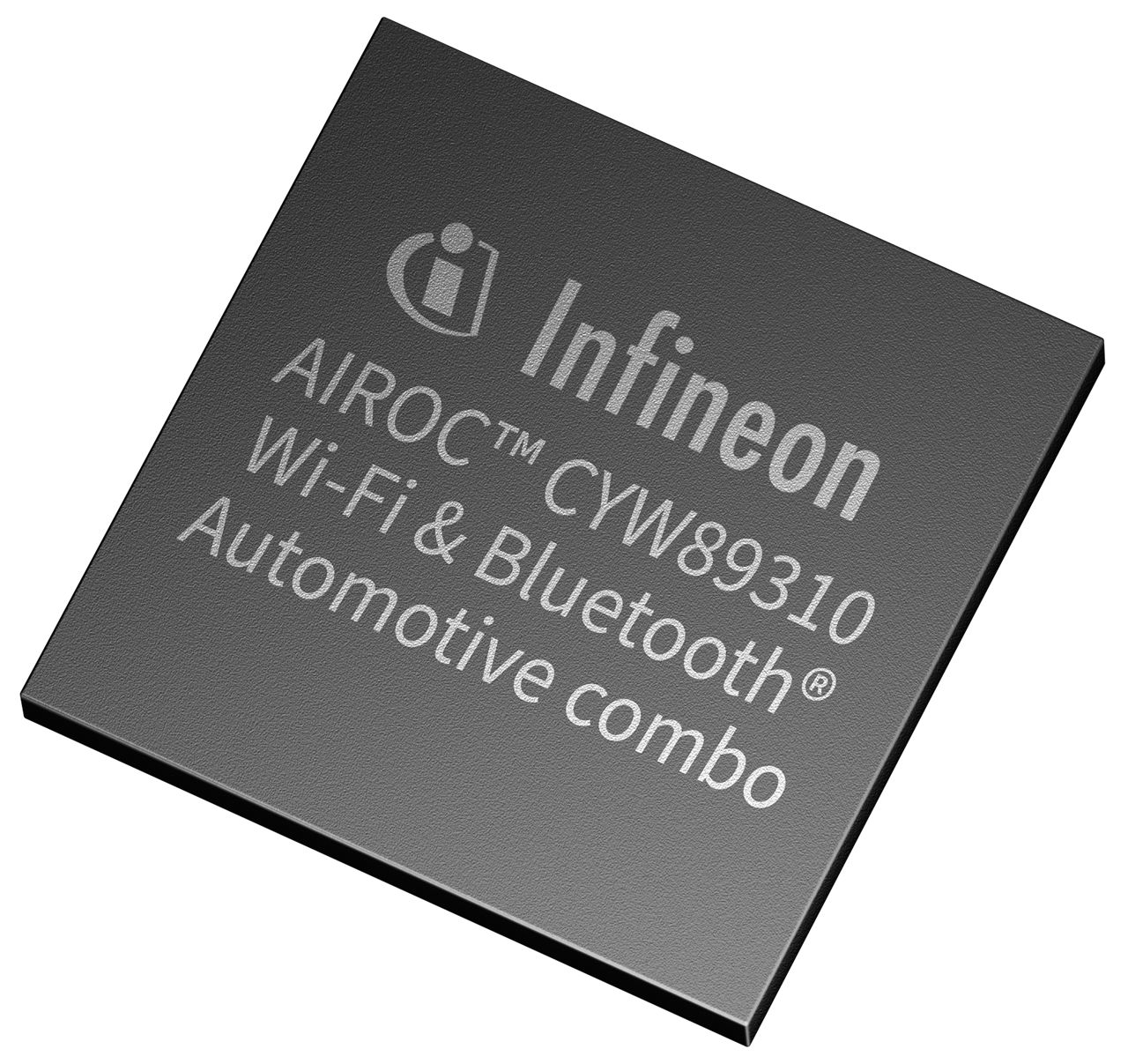

The AIROC™ CYW89310 is a family of single-chip devices that supports Bluetooth®/Bluetooth® Low Energy 6.0 with LE-Audio

特長

  • Bluetooth® LE-Audio Unicast and Auracast
  • Integrated on-chip PAs
  • Integrated on-chip LNAs
  • Integrated on-chip PMU

アプリケーション
