CYW55511
CYW55511
データシート

Product details

  • Longevity - 15 years
    Yes
  • Bluetooth Interface
    UART/SDIO
  • Bluetooth Specification
    Bluetooth 6.0
  • Currently planned availability until at least
    01-01-2040
  • GPIOs
    39
  • ROM
    2048 KB
  • SRAM
    768 kByte
  • WI-FI Interface
    SDIO/SPI
  • Wi-Fi Band
    2.4GHz
  • Wi-Fi Specification
    Wi-Fi 6 (802.11ax)
  • Antenna Configuration
    1x1
  • Operating system support
    Linux, Android, RTOS
  • Core
    Cortex M33
  • Package
    WLBGA-143
  • Pitch
    0.35 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    3 V to 4.8 V
  • Frequency
    192 MHz
  • Dimensions
    3.57 × 5.32 mm
  • Longevity - Extended
    No
  • Launch Date
    2025
  • Product Description
    Wi-Fi 6 Combo
推奨
OPN
CYW55511IUBGTXTMA1
製品ステータス active and preferred
インフィニオンパッケージ
SG-143
パッケージ名 WLBGA-143 (002-33373)
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス
Active
インフィニオンパッケージ
SG-143
パッケージ名 WLBGA-143 (002-33373)
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応

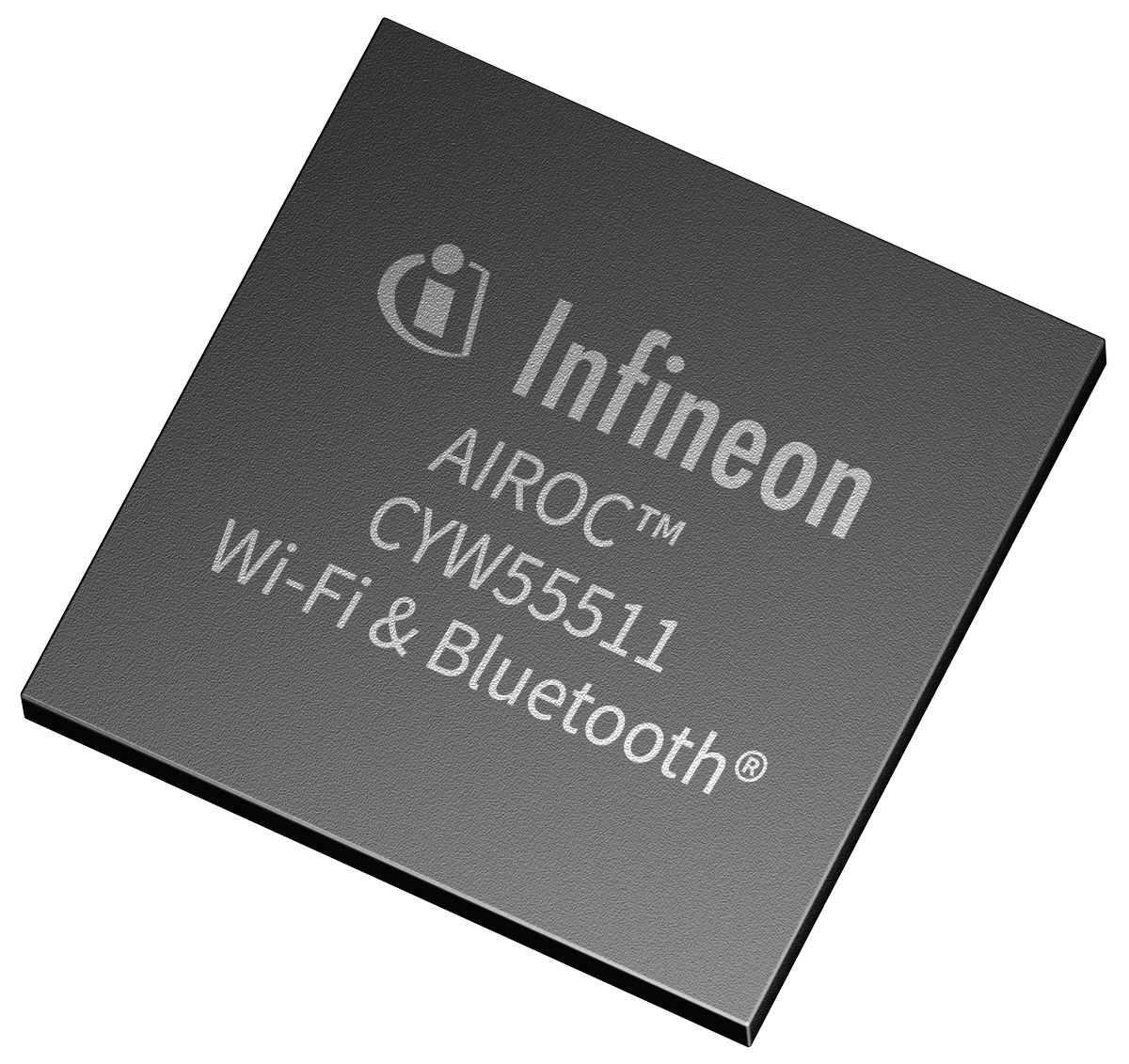

The AIROC™ CYW55511 is a low-power, high-performance 1x1 single-band (2.4GHz) Wi-Fi 6 and Bluetooth® 5.4 single-chip combo that delivers secure, reliable connectivity. This integrated, power-efficient and cost-effective design offers a balance of advanced Wi-Fi 6 and Bluetooth/BLE features with performance and power savings for your IoT connectivity needs in smart home, wearables and many small form-factor applications.

機能

  • 1x1, Single-Band, 2.4GHz, 20MHz Wi-Fi6
  • OFDMA, MU-MIMO, TWT, BSS Coloring, DCM
  • STA and SoftAP mode
  • Network offload features save power
  • WPA2 and WPA3 Security
  • SDIO and GSPI Host Interface
  • Bluetooth®/BLE 5.4 certified
  • Bluetooth® A2DP, HFP Audio, LE Audio
  • BLE audio support in modes
  • LE long range, 2Mbps, Adv. Extensions
  • UART or SDIO shared with Wi-Fi
  • Secure boot, encryption, authentication

利点

  • Optimized for IoT applications needs
  • Boosts network efficiency
  • Bluetooth and BLE Audio in modes
  • Multi-layer security for more protection
