R 48V BATT SWITCH10

48V Battery switch with core-less hall based sensor and shunt current measurement – Reference Design

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

R 48V BATT SWITCH10
R 48V BATT SWITCH10

製品仕様情報

  • トポロジー
    High-Side, High-side switch, Back to Back common source
  • ファミリー
    EiceDRIVER™ Gate Driver, Sensor, OptiMOS
  • ボードタイプ
    Reference Board
  • 入力タイプ
    DC
  • 寸法
    100 mm x 75 mm
  • 対象アプリケーション
    Battery Switch, Relays, Power Distribution, Motorcycles, E-Bikes & Small E-Vehicles, Automotive
  • 認定
    Automotive
  • 電源電圧
    24 V to 54 V
推奨
OPN
R48VBATTSWITCH10TOBO1
製品ステータス active and preferred
インフィニオンパッケージ N/A
パッケージ名 N/A
包装サイズ 1
包装形態 CONTAINER
水分レベル N/A
モイスチャーパッキン NON DRY
鉛フリー No
ハロゲンフリー No
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス
Active
インフィニオンパッケージ N/A
パッケージ名 -
包装サイズ 1
包装形態 CONTAINER
水分レベル -
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
This reference board showcases an air-cooled high current protection switch (up to 300A) for automotive 48V batteries. It utilizes a 2-channel MOSFET gate driver (2ED4820-EM) to control Power MOSFETs for battery connection. Current monitoring and overcurrent protection are enhanced with shunt and hall-based sensing (TLE4972-AE35D5). Controlled by an XMC4700 microcontroller kit, the board supports configuration via a command-line interface.

機能

  • 48V for continuous currents 300A
  • High-side O/P channels in common source
  • Pre-charge path for DC-Link capacitors
  • Passive freewheeling (active freewheeling optional)
  • Shunt based monitoring on low-side
  • Hall current monitoring on high-side
  • Over-current protection with programmable thresholds
  • Extensive diagnostics

用途

Bill of Material

ドキュメント

ドキュメント

デザイン リソース

図

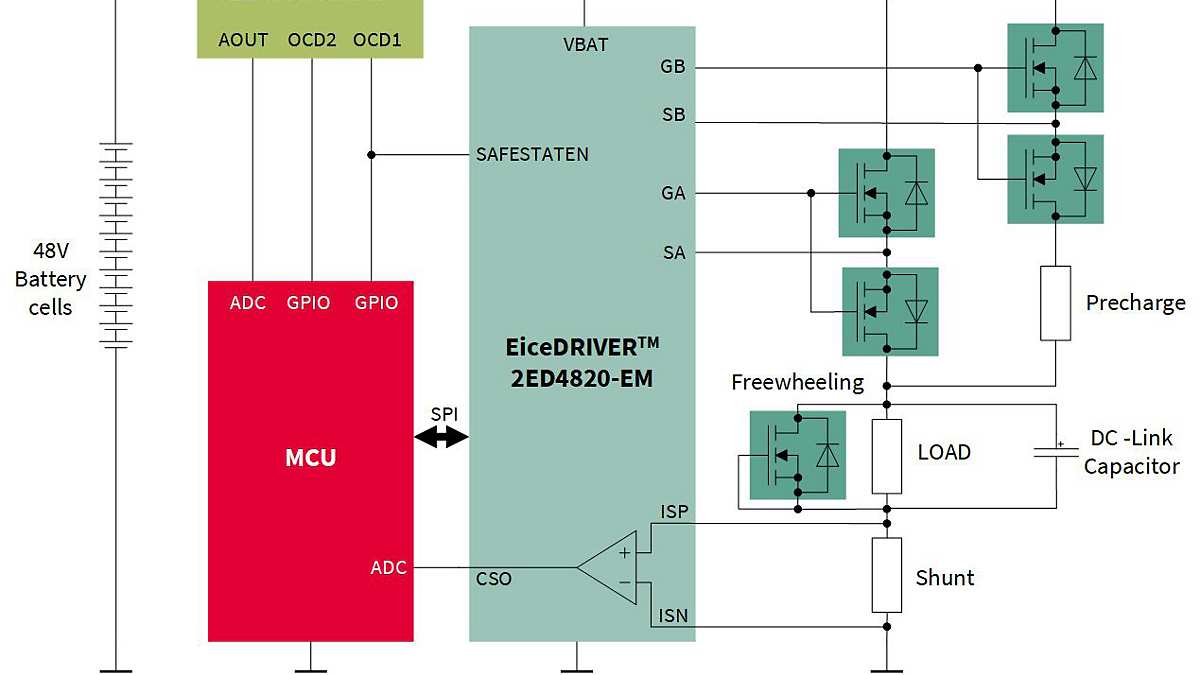

R-48V-BATT-Switch10-Diagram
R-48V-BATT-Switch10-Diagram
R-48V-BATT-Switch10-Diagram R-48V-BATT-Switch10-Diagram R-48V-BATT-Switch10-Diagram
×
