R 48V BATT SWITCH10

48V Battery switch with core-less hall based sensor and shunt current measurement – Reference Design
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

R 48V BATT SWITCH10
R 48V BATT SWITCH10
ea.

Product details

  • Board Type
    Reference Board
  • Dimensions
    100 mm x 75 mm
  • Family
    EiceDRIVER™ Gate Driver, Sensor, OptiMOS
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    24 V to 54 V
  • Target Application
    Battery Switch, Relays, Power Distribution, Motorcycles, E-Bikes & Small E-Vehicles, Automotive
  • Topology
    High-Side, High-side switch, Back to Back common source
Recommended
OPN
R48VBATTSWITCH10TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

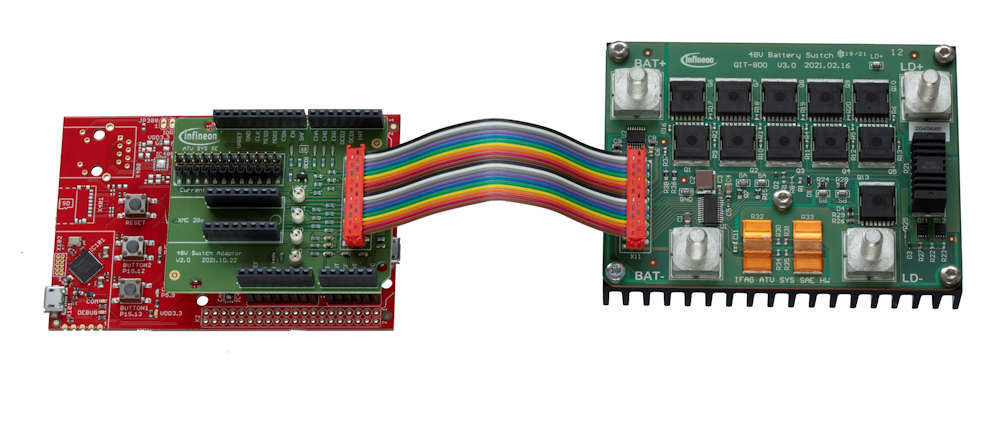

This reference board showcases an air-cooled high current protection switch (up to 300A) for automotive 48V batteries. It utilizes a 2-channel MOSFET gate driver (2ED4820-EM) to control Power MOSFETs for battery connection. Current monitoring and overcurrent protection are enhanced with shunt and hall-based sensing (TLE4972-AE35D5). Controlled by an XMC4700 microcontroller kit, the board supports configuration via a command-line interface.

Features

  • 48V for continuous currents 300A
  • High-side O/P channels in common source
  • Pre-charge path for DC-Link capacitors
  • Passive freewheeling (active freewheeling optional)
  • Shunt based monitoring on low-side
  • Hall current monitoring on high-side
  • Over-current protection with programmable thresholds
  • Extensive diagnostics

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

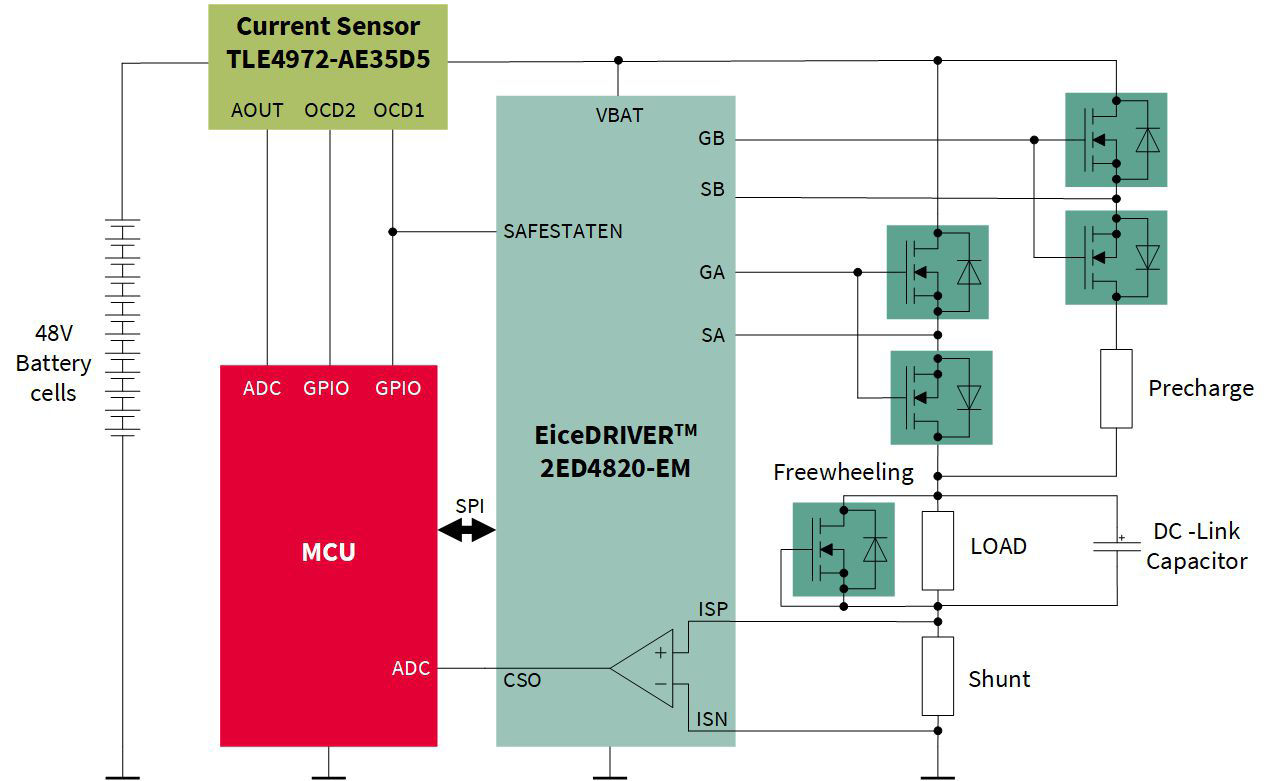

R-48V-BATT-Switch10-Diagram
