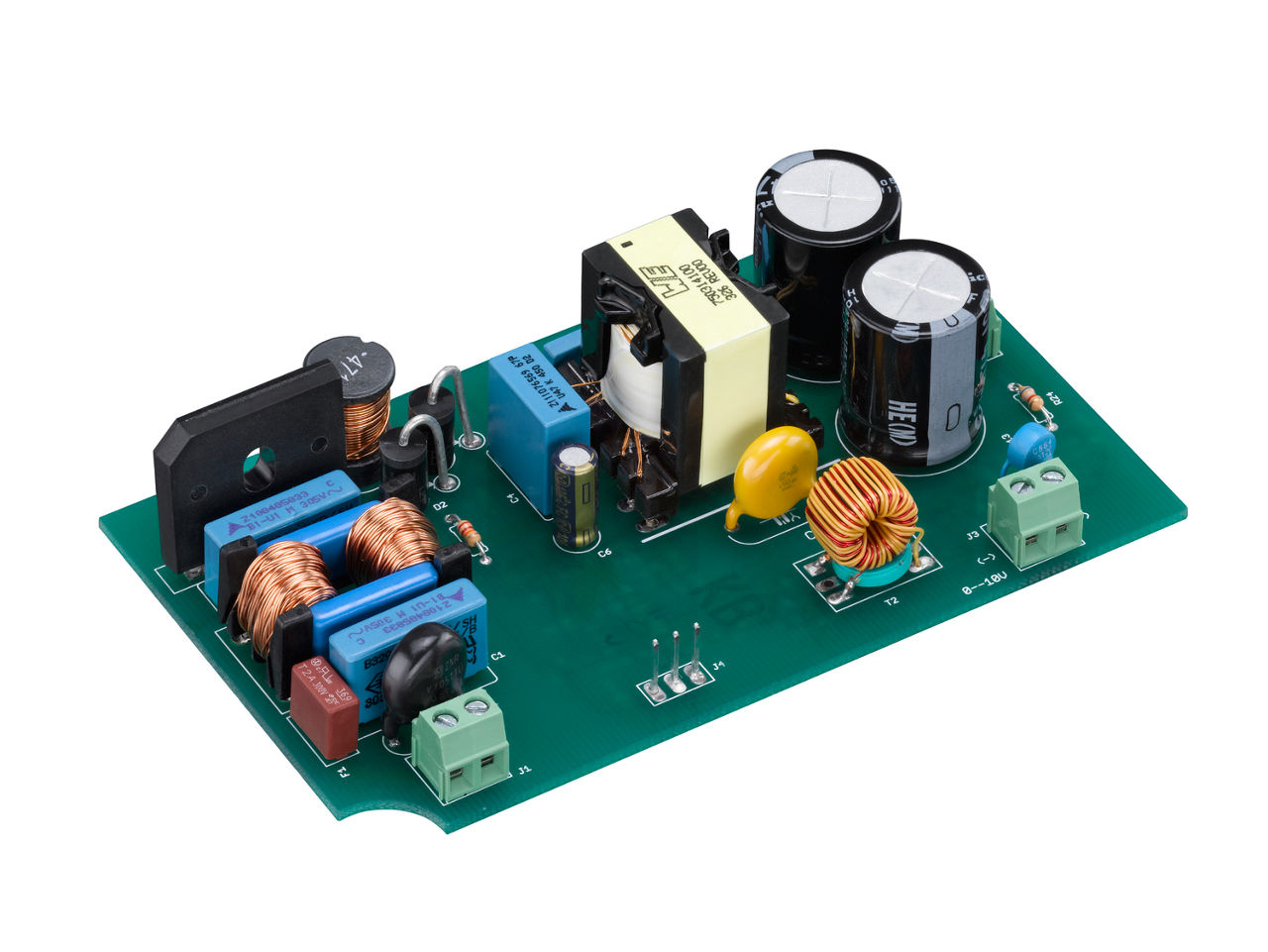

REF-ICL8105-CDM10V

40W Reference Design with CDM10V Isolated 0-10V Dimming Interface

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-ICL8105-CDM10V
REF-ICL8105-CDM10V

製品仕様情報

  • ファミリー
    LED Driver
  • ボードタイプ
    Reference Board
  • 対象アプリケーション
    LED Lighting, Lighting
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
The 40W LED driver with isolated 0 – 10 V dimming interface is available to quickly assess the performance and assess the bill of materials. The demoboard supports universal input voltage from 90-305 VAC, a wide output voltage range from 15 - 45 VDC and isolated 0-10 V dimming for LED lighting applications. The design is using the Infineon components XDP™ ICL8105 digital flyback controller, the CDM10V as solution for isolated 0-10V dimming, and 800V CoolMOS™ CE   .dp Interface Gen2 Board can be ordered here .dp Vision Software is available  here ICL8105 system simulation and design creation tool is available  here XDP TM GUI builder is available  here

特長

  • Single-stage flyback with power factor correction (PFC) and high-precision primary side-controlled constant current output. Excellent current accuracy of typ +/-3% across wide line/load to maintain aconstant light output
  • The ICL8105 supports isolated 0-10 V dimming without the need for extra ICs. Extended dimming is supported down to 1% of the nominal load. Besides, the dimming curve is adjustable (linear / eye adapted).Configurable voltage levels ensure that min and max current can always be achieved, making the application robust against dimmer & component tolerances
  • The CDM10V is used to transmit analog voltage based signals from a 0-10 V dimmer to the dimming input of the ICL8105. The CDM10V thereby drives an external opto-coupler with a current based PWM signal.

用途
