EVALLEDICL8201F1
EVALLEDICL8201F1

製品仕様情報

OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:

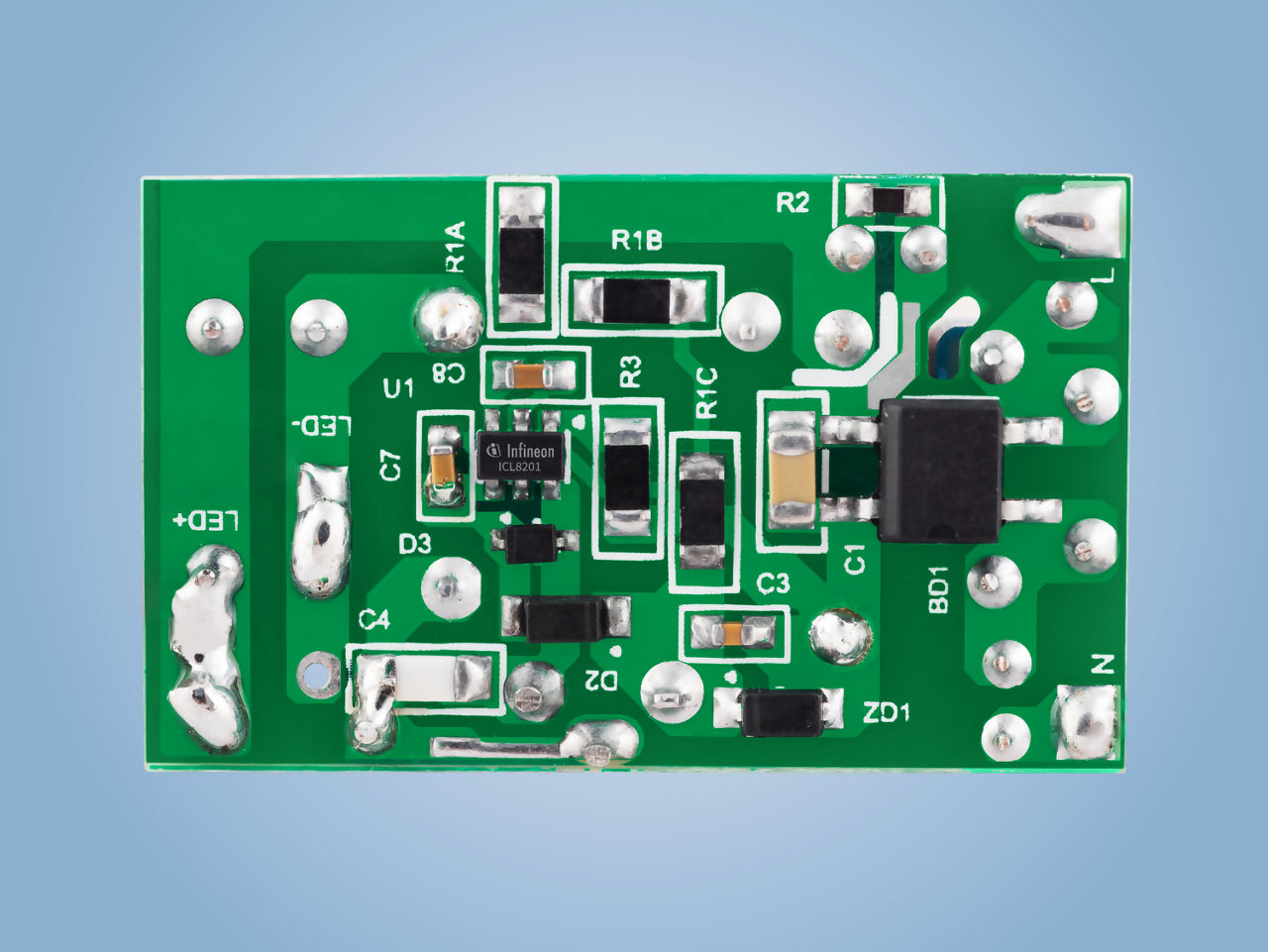

This board is an universal 7.5 W 180 mA average current controlled single stage, cascode structure for floating bulk topology GU10 LED lamp reference design using LED driver IC ICL8201 and CoolMOS™ IPU50R3K0CE . It has high efficiency, high PFC and variousmodes of protections with very low external component count. ICL8201 concept supports simple buck inductor without auxiliary winding.

特長

  • Advanced cascode topology enables lower system cost and higher system efficiency
  • Supports wide range AC or DC input
  • Single inductors without auxiliary winding


利点

  • Minimum external components supporting small form factors and easy design-in
  • High efficiency
  • High Power Factor
  • Full set of protection modes including intelligent Over-Temperature-Protection



用途
