EVAL_AUDIO_MA2304DNS
EVAL_AUDIO_MA2304DNS
ユーザーマニュアル

製品詳細

  • Topology
    Amplifier
  • Family
    MERUS™
  • Input Type
    DC
  • Input Voltage
    18 V
  • Target Application
    Audio
  • Features
    Evaluation board for MERUS™ MA2304DNS multilevel class D amplifier
  • Type
    AC
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:

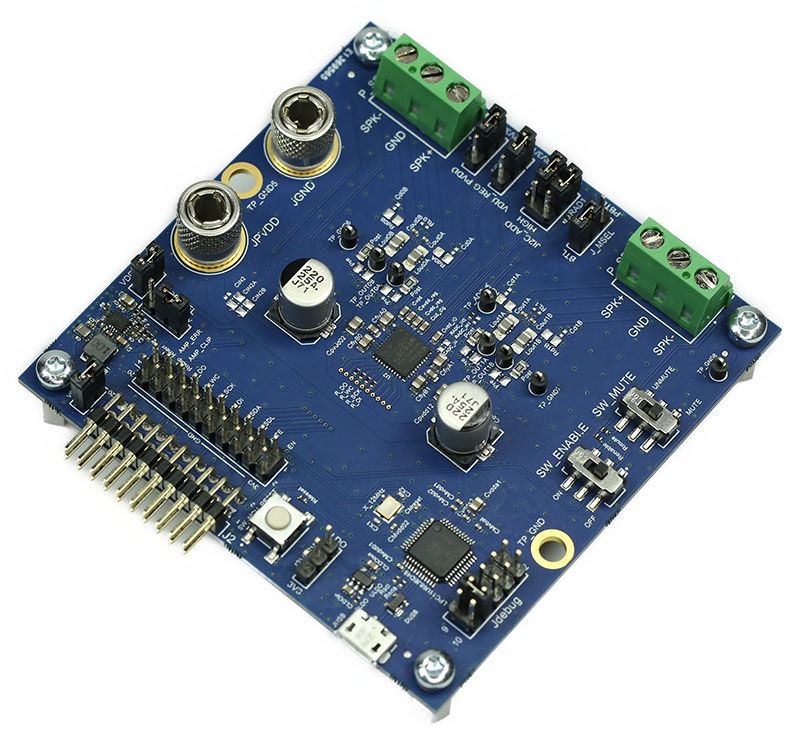

The EVAL_AUDIO_MA2304DNS is the evaluation board that features the MERUS™ multilevel MA2304DNS stereo class D amplifier . It features ultralow idle power consumption, highest efficiency in the market at typical listening levels and reduced EMI in comparison to traditional 2 and 3 level class D amplifiers. Additionally, MA2304DNS includes an integrated DSP for audio system tuning to facilitate development in a fast time to market environment.
