TLS203B0EJ V33

The TLS203B0EJ V33 is a micropower, low noise, capable of supplying an output current of 300 mA with a dropout voltage of 270 mV.
データシート
パッケージ
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS203B0EJ V33
TLS203B0EJ V33
EA.
データシート

Product details

  • Currently planned availability until at least
    2038
  • ウォッチドッグ
    no
  • ステータス出力
    no
  • ドロップアウト電圧
    270 mV
  • パワーグッド
    no
  • ファミリー
    OPTIREG™ linear Post Regulator
  • ベース製品
    TLS203B0xxVxx
  • ホールド
    no
  • リセット
    no
  • レギュレーター タイプ
    Post Regulator
  • 予算価格€/ 1k
    0.62
  • 出力電圧タイプ
    3.3 V
  • 出力電流 max
    300 mA
  • 動作温度
    -40 °C to 125 °C
  • 動作電圧
    2.3 V to 20 V
  • 早期警告
    no
  • 有効 (=禁止)
    yes
  • 精度
    2.5 %
  • 認定
    Automotive
  • 過電圧保護
    no
  • 電源障害
    no
  • 静止電流
    30 µA
推奨
OPN
TLS203B0EJV33XUMA1
製品ステータス active and preferred
インフィニオンパッケージ
PG-DSO-8
パッケージ名 N/A
包装サイズ 2500
包装形態 TAPE & REEL
水分レベル 3
モイスチャーパッキン DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
PG-DSO-8
パッケージ名 -
包装サイズ 2500
包装形態 TAPE & REEL
水分レベル 3
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
Designed for use in battery-powered systems, the low quiescent current of 30 μA makes it an ideal choice.
A key feature of the TLS203B0 is its low output noise. By adding an external 0.01 μF bypass capacitor, the output noise drops to very low numbers. The TLS203B0 voltage regulator is stable with output capacitors as small as 3.3 μF. Small ceramic capacitors can be used without the series resistance required by many other regulators. Internal protection circuitry includes reverse battery protection, current limiting and reverse current protection. The TLS203B0 comes as fixed output voltages 3.3 V, 5.0 V as well as an adjustable device with a 1.22 V reference voltage. It is available in a PG-DSO8 exposed pad package.

機能

  • Wide Input Voltage Range: up to 20 V
  • 300 mA Current Capability
  • Low Quiescent Current: 30μA RMS
  • Low Dropout Voltage: 270 mV
  • Low Noise down to 30µV
  • Fixed Output Voltage: 3.3 V
  • Enable Feature
  • Internal circuitry working down to 2.3 V
  • Very low Shutdown Current: < 1μA
  • No Protection Diodes Needed
  • Stable with ≥ 3.3 μF Output Capacitor
  • Stable with Aluminium, Tantalum or Ceramic Output Capacitors
  • Reverse Polarity Protection
  • Overcurrent and Overtemperature Protected
  • PG-DSO8 exposed pad package
  • Suitable for Use in Automotive Electronics as Post Regulator
  • Green Product (RoHS compliant)
  • AEC Qualified

利点

  • Wide input voltage range
  • Output ceramic caps supported
  • Low noise

図

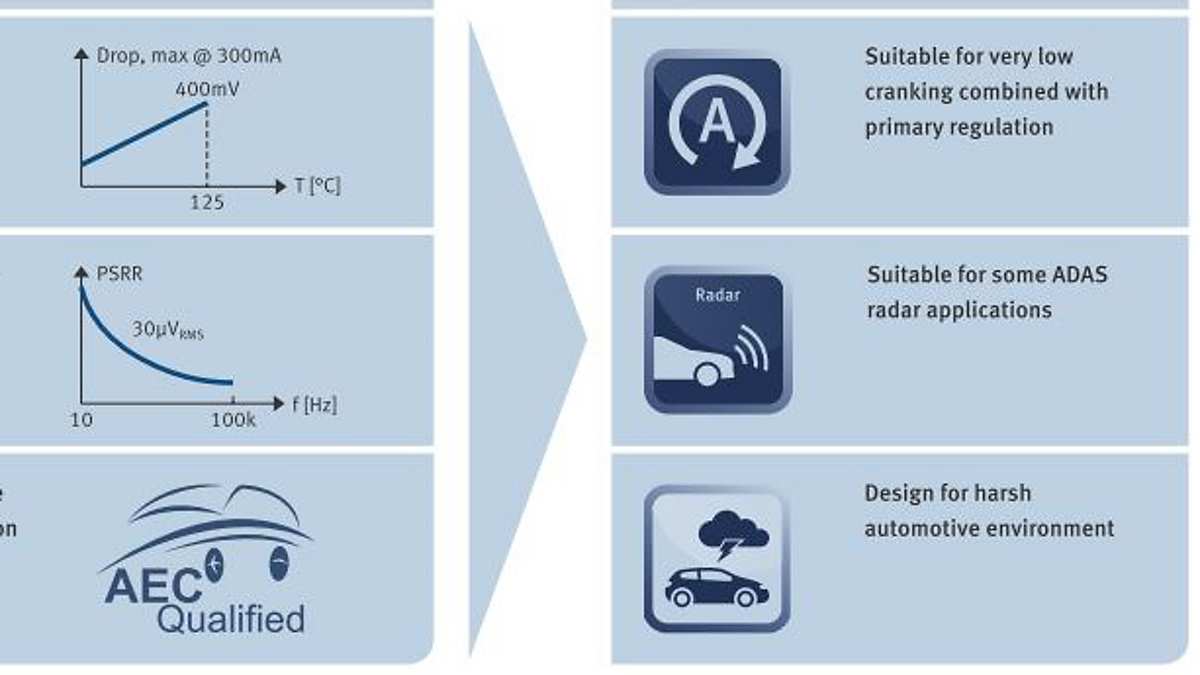

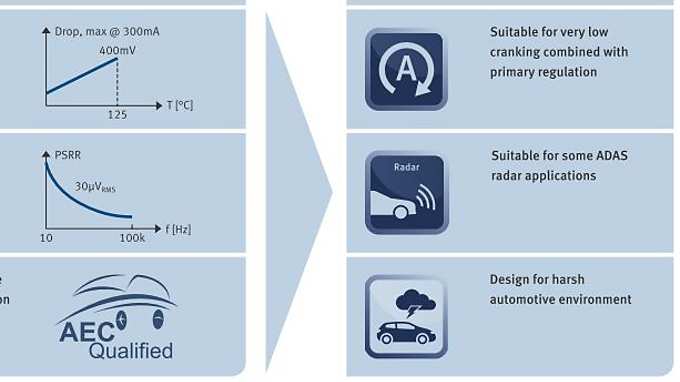

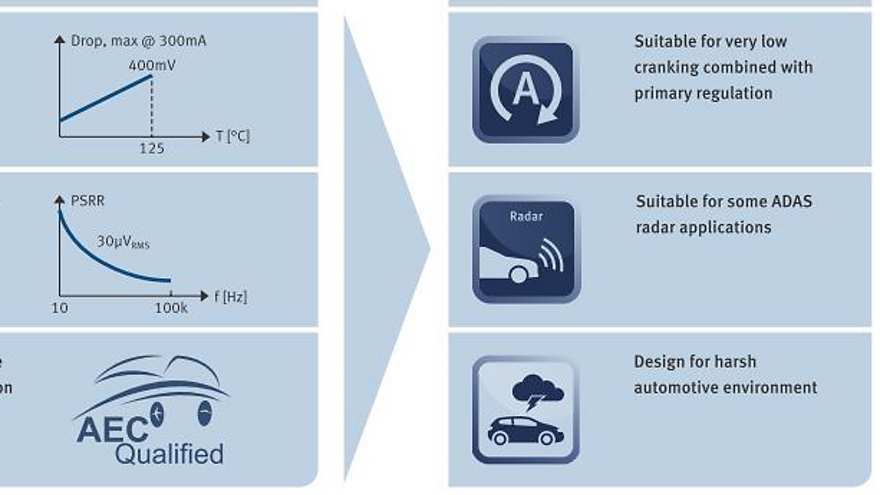

Key_features_and_benefits_TLS203B0_33V_50V
Key_features_and_benefits_TLS203B0_33V_50V
Key_features_and_benefits_TLS203B0_33V_50V Key_features_and_benefits_TLS203B0_33V_50V Key_features_and_benefits_TLS203B0_33V_50V

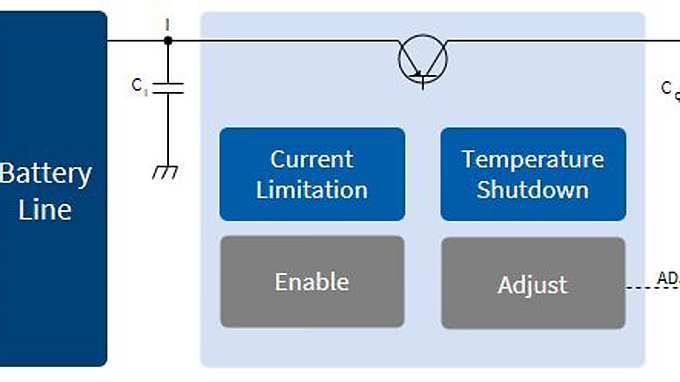

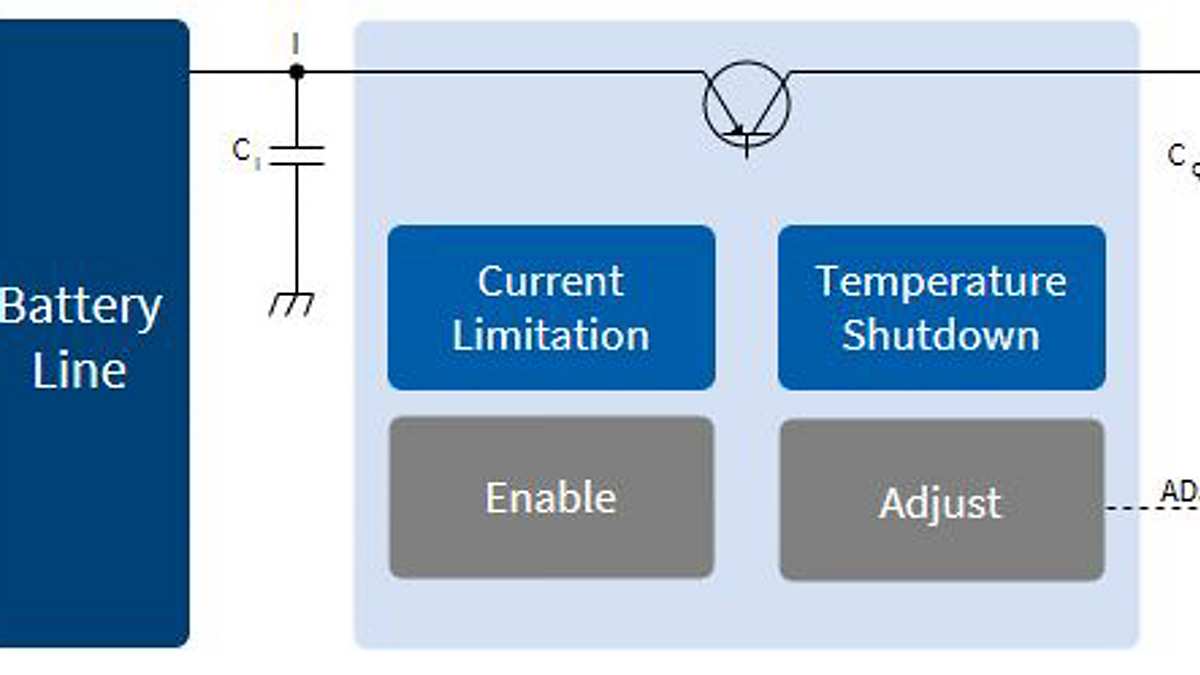

application_schematic_TLS203B0_TLS205B0. application_schematic_TLS203B0_TLS205B0. application_schematic_TLS203B0_TLS205B0.
Key_features_and_benefits_TLS203B0_33V_50V Key_features_and_benefits_TLS203B0_33V_50V Key_features_and_benefits_TLS203B0_33V_50V

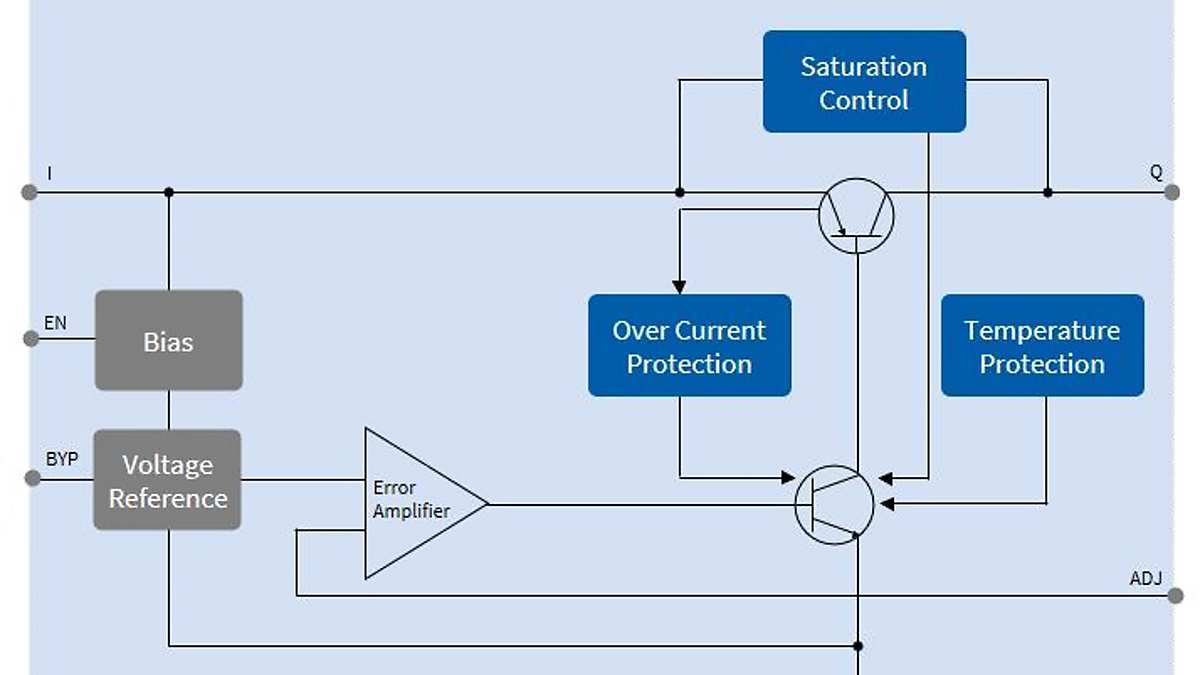

Internal_schematic_TLS203B0-TLS205B0 Internal_schematic_TLS203B0-TLS205B0 Internal_schematic_TLS203B0-TLS205B0
application_schematic_TLS203B0_TLS205B0. application_schematic_TLS203B0_TLS205B0. application_schematic_TLS203B0_TLS205B0.
Internal_schematic_TLS203B0-TLS205B0 Internal_schematic_TLS203B0-TLS205B0 Internal_schematic_TLS203B0-TLS205B0
×
