TLE9254VSK

The TLE9254VSK is a high speed Infineon dual CAN Transceiver with bus wake-up used in automotive as well as industrial applications.
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9254VSK
TLE9254VSK
データシート

Product details

  • バス ウェイクアップ機能
    Yes
  • ファミリー
    CAN FD 5MBit/s
  • ベース製品
    TLE925x
  • 伝送速度 max
    5 MBit/s
  • 標準/規格
    ISO11898-2
  • 特長
    Vio, WK
  • 種類
    CAN FD
  • 製品カテゴリ
    Transceivers
  • 言語
    IBIS
  • 認定
    Automotive
  • 追加機能
    WK, Vio
  • 静止電流
    11 µA per channel at 105°C
OPN
製哝ステータス
インフィニオンパッケージ
パッケージ坝
包装サイズ
包装形態
水分レベル
モイスポャーパッキン
鉛フリー
ポロゲンフリー
RoHS準拠
Infineon stock last updated:

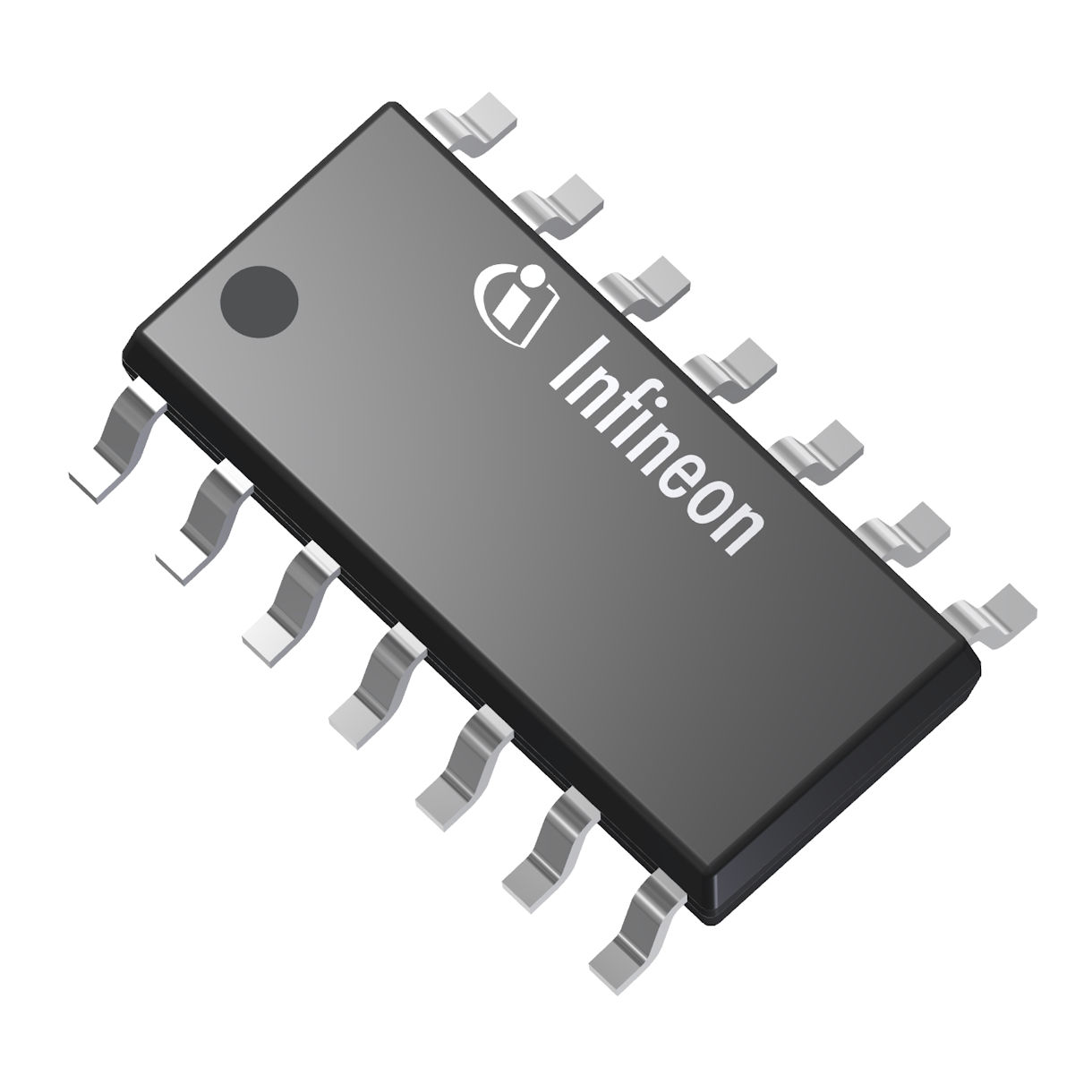

It is designed to fulfill the requirements of the following standards:ISO 11898-2 (2016) physical layer specificationSAE J1939SAE J2284This product is available in standard package PG-DSO-14 which is RoHS compliant and halogen free. Alternatively the TLE9254VLC is available in PG-TSON-14 which supports solder joint requirements for automated optical inspection (AOI).

機能

  • Compliant to ISO 11898-2:2016
  • Dual channel CAN FD transceiver with very low quiescent current in stand-by mode
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low electromagnetic emission (EME) allows the use without additional common mode choke
  • Excellent ESD robustness
  • Very high CAN FD symmetry to support CAN FD data frames up to 5 MBit/s
  • V10 input for voltage adaption to the microcontroller supply
  • Extended supply range on VCC and V10
  • CAN short circuit proof to ground, to battery and to VCC
  • TxD timeout function
  • Low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients according to ISO 7637 and SAE J2962-2
  • Stand-by mode with bus wake-up pattern function
  • Wake-up indication on the RxD output
  • Transmitter supply VCC can be turned off in stand-by mode
  • Green Product (RoHS compliant)
  • Supports 3.3 V as well as 5 V supplied microcontrollers
  • Available in standard package PG-DSO-14 which is RoHS compliant and halogen free
