TLE9222PX

The TLE9222PX FlexRay transceiver is designed for data transmission rates from 1 Mbit/s up to 10 Mbit/s
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9222PX
TLE9222PX
データシート

Product details

  • ウェイクアップ入力
    Bus Wake-up
  • バス ウェイクアップ機能
    yes
  • 伝送速度 max
    10 MBit/s
  • 標準/規格
    EPL.3.0.1, ISO 17458-4
  • 特長
    STBN, ERRN, BGE, Vio
  • 種類
    FlexRay™
  • 認定
    Automotive
  • 追加機能
    STBN, ERRN, BGE, Vio
  • 電源電圧
    3.3 V, 5 V
  • 静止電流
    < 45 µA standby mode (Vcc & Vio)
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
The TLE9222PX is compliant with FlexRay Electrical Physical Layer Specification 3.0.1 and ISO 17458-4. Optimized for in-vehicle networks with data rates from 1 Mbit/s to 10 Mbit/s, it supports 60 ns minimum bit times, automatic voltage adaptation, and very high ESD robustness. This AEC Qualified green product is suitable for Electrical Power Steering, Advanced Driver Assistance Systems (ADAS), and Chassis Control & Powertrain applications.

機能

  • Compliant with the FlexRay Electrical Physical Layer Specification version 3.0.1 and ISO 17458-4
  • Optimized for time triggered in-vehicle networks with data transmission rates from 1 Mbit/s up to 10 Mbit/s
  • Supports minimum bit times down to 60 ns
  • Automatic voltage adaptation on the digital interface pins
  • Bus failure protection and error detection
  • Very high ESD robustness; ± 8 kV according to IEC61000-4-2
  • Optimized for high Electromagnetic Compatibility (EMC);
    Very low emission and high immunity to interference

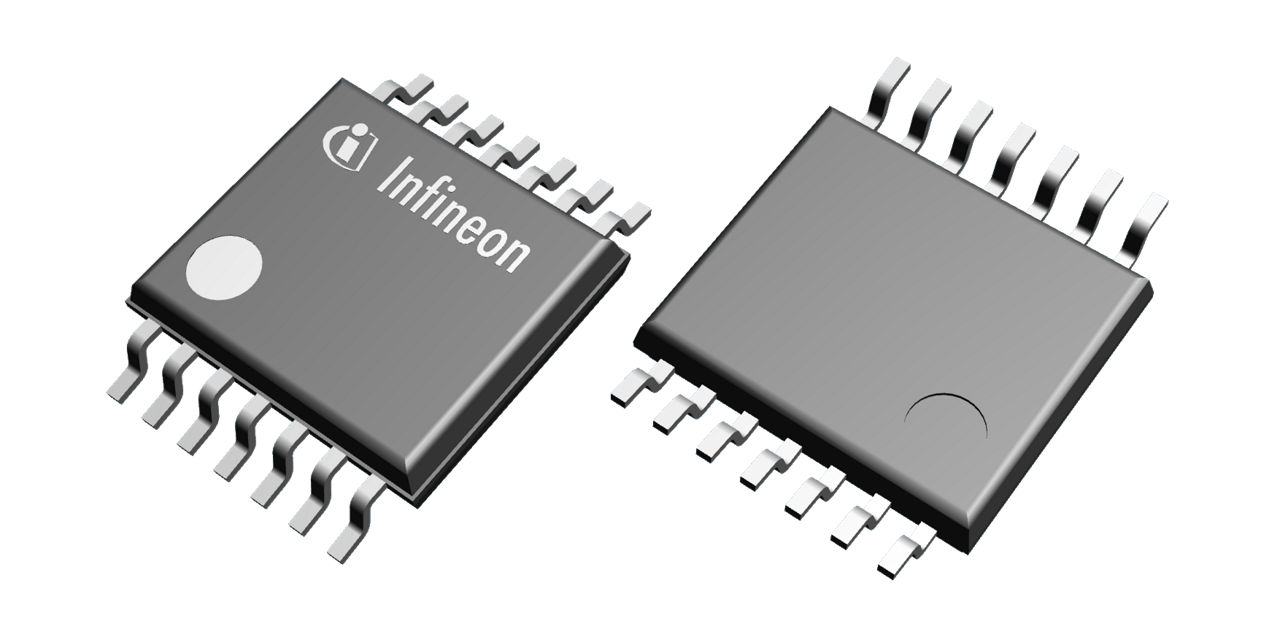

  • Standard TSSOP-14 package
  • Green Product (RoHS compliant)
  • AEC Qualified
