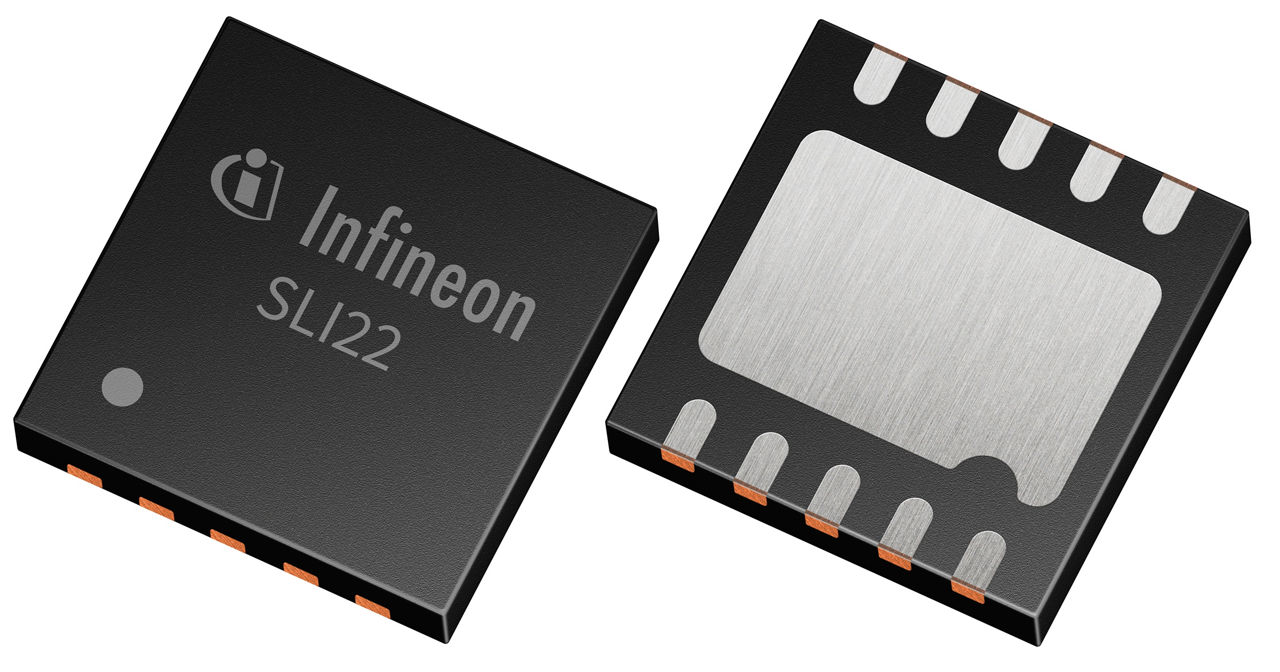

SLI22CMA1MXXX

TEGRION™ SLI22 Automotive Security Controller

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SLI22CMA1MXXX
SLI22CMA1MXXX

製品仕様情報

  • CPU
    32-bit Arm® v8-M @100MHz extended by the Arm TrustZone and Infineon Integrity Guard 32 8kB instruction, +2kB Data Cache
  • アプリケーション
    eSIM, V2X, Car Access, In car Payment
  • インターフェース
    ISO 7816, SPI Slave, I2C Controller/Target, I3C Target and GPIOs
  • ユースケース
    eSIM, Security, Authentication, Telematics, Access
  • リーディング テクノロジー
    SOLID FLASH™
  • 周囲温度
    -40 °C to 105 °C
  • 対称型暗号
    AES up to 256-bit DES support
  • 納品形態
    MFF2 (VQFN-8 5x6mm), MFF3 (USON-10 3x3mm), VQFN-32 (5x5mm).
  • 製品の説明
    Automotive security controller
  • 認証
    AEC-Q100, CC EAL6+, ISO24234, FIPS 140-3
  • 非対称暗号
    RSA up to 4096-bit, ECC up to 521-bit, Post Quantum Cryptography support including FIPS 203 ML-KEM and FIPS 204 ML-DSA
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
This security controller is versatile and can be deployed across various security-critical applications, including eSIM, V2X, and Car Access. The TEGRION™ SLI22 complements established products like the SLI37, further enhancing Infineon's portfolio. At its core, the SLI22 incorporates the advanced Integrity Guard 32 architecture including PQC accelerator providing a robust security framework that ensures the integrity and reliability of systems.

機能

  • Integrity Guard 32 security
  • High-performance 32-bit CPU @ 100Mhz
  • Up to 25% higher cache performance
  • Power supply range from 1.2V to 3.3V
  • Power-optimized 28 nm technology
  • NVM sizes from
  • 1.2 MB to 1.8 MB
  • RAM sizes from 48 KB to 96 KB
  • Multichannel processing
  • Multi-interface support
  • Cryptographic accelerators incl. PQC
  • Certified Cryptographic Suite (CS)
  • Less than 10ppm failure rate

利点

  • Robust high-performance solution
  • Proven history in automotive security
  • Navigate the PQC landscape with ease
  • Long-term, dual-sourced supply
