SAK-XC2238N-40F80LR AB
SAK-XC2238N-40F80LR AB
データシート

Product details

  • A/D Input Lines (incl. FADC)
    9
  • Number of ADC Modules
    2
  • CAN Nodes
    6
  • DMA Channels
    8
  • DSP Functionality
    yes
  • EEPROM Emulation (Data-Flash)
    yes
  • I/O Operation Voltages
    3.3 V
  • SRAM (incl. Cache)
    34 kByte
  • Watchdog Timer
    yes
  • Oscillator Watchdog
    yes
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Type of Serial I/O Interfaces
    UART
  • Serial I/O Interfaces
    4
  • Timer/Counter
    13
  • Timed I/O Pins (PWM, CAPCOM)
    up to 22
  • Touch/LED Matrix Control
    no
  • Digital I/O Pins
    38
  • Power Mode
    3
  • Program Memory
    320 kByte
  • Type of Memory
    Flash
  • Real Time Clock
    yes
  • Budgetary Price €/1k
    6.04
  • Instruction Width ([bits])
    16/32
  • External Bus Interface
    yes
  • Floating Point Unit
    no
  • Temperature
    -40 to 125°C
  • Qualification
    Automotive
  • Additional Features
    for details, please refer to the data sheet
  • Fast Flash Programming
    no
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
The XC226xN (LQFP-100) and XC223xN (LQFP-64) microcontroller series is based on Infineon's popular and well-established C166 architecture. With a Flash size of up to 320 K and a 80MHz performance, the micro controller is well suited for automotive and motorcycle body applications.

機能

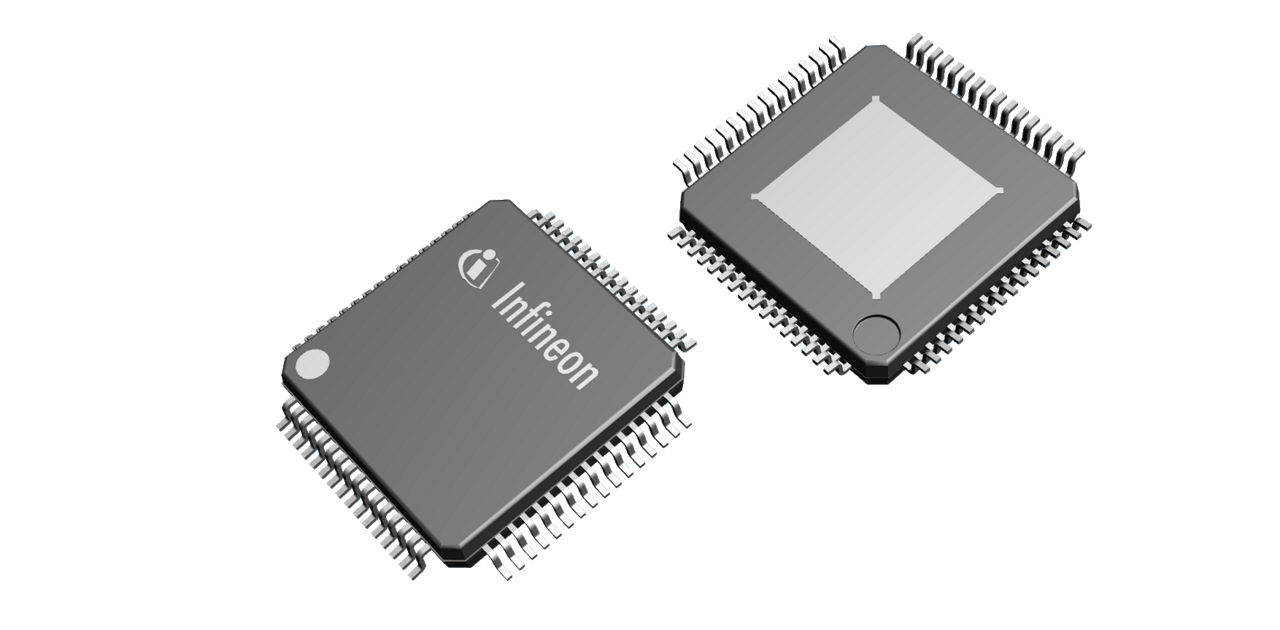

  • Package: PG-LQFP-64
  • CAN Nodes: 6
  • Program Memory: 320.0 KByte
  • FlexRay™: no
  • Type of Serial I/O Interfaces: 4 x SPI, LIN, UART, IIC, IIS
