OPTIGA TRUST M EXPRESS

The easiest way to securely deploy IoT devices to the cloud at scale
データシート
ボード
ソフトウェア

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

OPTIGA TRUST M EXPRESS
OPTIGA TRUST M EXPRESS
データシート

Product details

  • CPU
    16-bit
  • NVM (不揮発性メモリ)
    10 kByte
  • アプリケーション
    Smart Building, Smart City, Smart Mobility, Smart Home, Industrial IoT, Healthcare
  • インターフェース
    I2C
  • パッケージ
    USON-10
  • ユースケース
    secured cloud communication, crypto offloads, secured software updates and more, Secured cloud authentication
  • リーディング テクノロジー
    20
  • 周囲温度
    -40 °C to 105 °C, -25 °C to 85 °C
  • 対称型暗号
    AES 256, HMAC, SHA512
  • 納品形態
    PG-USON-10-2,-4
  • 製品の説明
    OPTIGA™ Trust M Express offers rock-solid security for IoT devices every step of the way from manufacturing through cloud provisioning to field deployment.
  • 認証
    Based on CC EAL 6+ (high) certified HW
  • 非対称暗号
    ECC 256-bit, ECC 384-bit, ECC 521 bit
推奨
OPN
OPTIGATRSTMEXPSAMPLXHSA1
製品ステータス active and preferred
インフィニオンパッケージ T-SAMPLE1-8
パッケージ名 N/A
包装サイズ 1
包装形態 REEL FOR CHIP CARD
水分レベル NA
モイスチャーパッキン NON DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス
Active
インフィニオンパッケージ T-SAMPLE1-8
パッケージ名 -
包装サイズ 1
包装形態 REEL FOR CHIP CARD
水分レベル NA
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
OPTIGA™ Trust M Express is a pre-provisioned Secure Element that simplifies the integration of security in IoT devices. It makes it easier to claim the devices and transfer the certificates to the product cloud at scale. The Infineon cloud service automates the IoT device certificate registration and device provisioning in the product cloud. This solution simplifies the production flow, accelerates time-to-market, and increases cost efficiency.

機能

  • Pre-provisioned with
  • Ready-to-use certificates / keys
  • AWS multi-account registration
  • Azure IoT Hub pre-registration
  • Infineon cloud service support
  • ECC: NIST curves up to P-521,
  • Brainpool r1 curve up to 512 bits
  • RSA with keys up to 2048 bits
  • AES key up to 256 bits
  • HMAC up to SHA-512
  • TLS v1.2 PRF + HKDF up to SHA-512
  • TRNG/DRNG random number generator
  • Cryptographic toolbox commands
  • SHA-256, ECC and RSA® features
  • AES, HMAC and key derivation

利点

  • Off-the-shelf secure elements
  • Ready to connect to Azure and AWS
  • Automated device provisioning
  • Product-to-cloud provisioning
  • Simple device claiming process
  • No manual intervention required
  • Faster design-in process
  • Easy-to-use developer kit
  • NDA-free product documentation
  • Robust Security

図

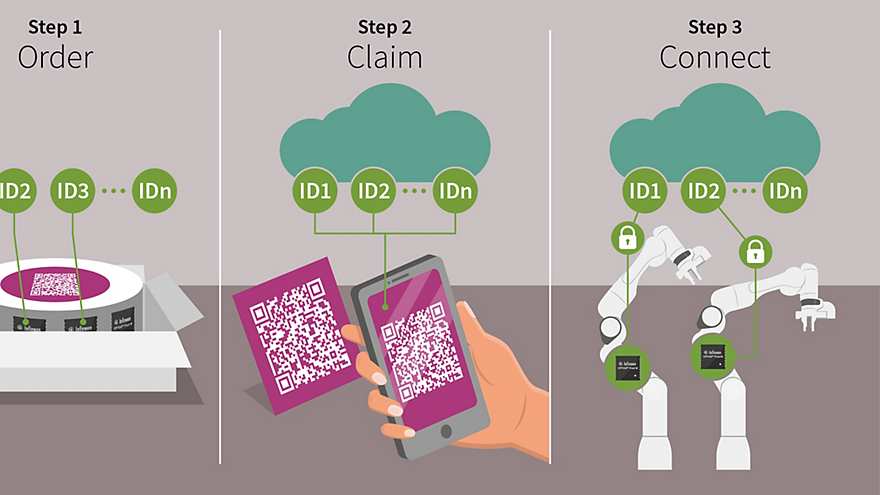

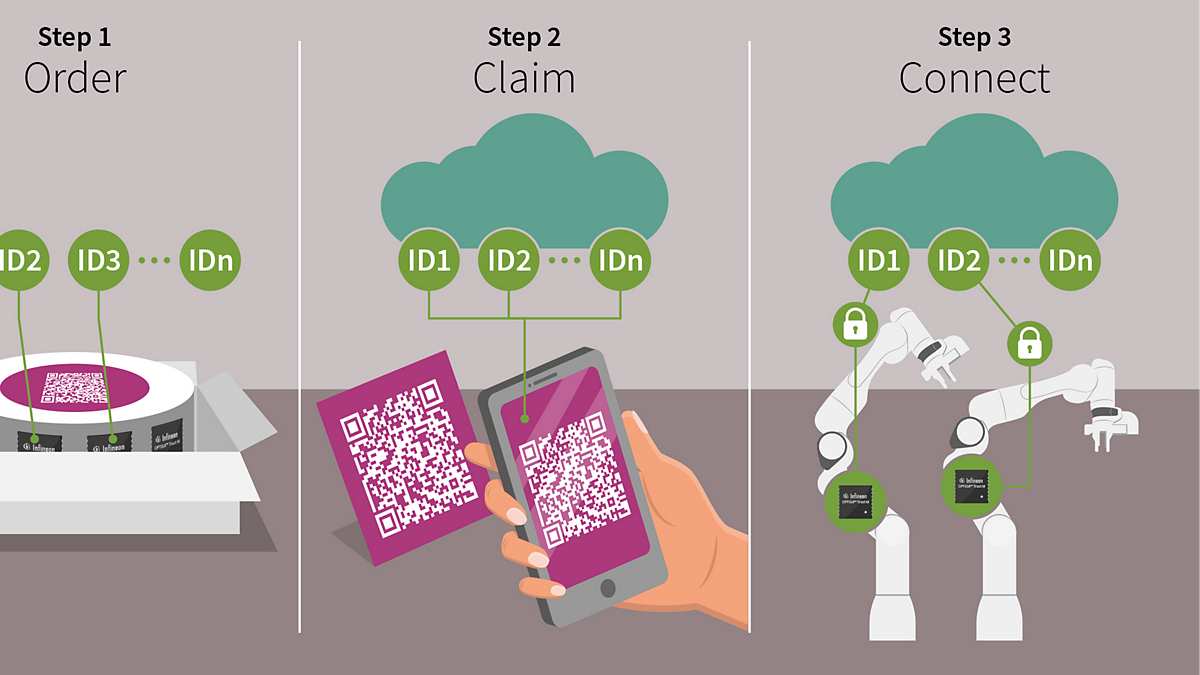

OPTIGA™ Trust M Express and Infineon cloud services: A unique approach to device-to-cloud authentication
OPTIGA™ Trust M Express and Infineon cloud services: A unique approach to device-to-cloud authentication
OPTIGA™ Trust M Express and Infineon cloud services: A unique approach to device-to-cloud authentication OPTIGA™ Trust M Express and Infineon cloud services: A unique approach to device-to-cloud authentication OPTIGA™ Trust M Express and Infineon cloud services: A unique approach to device-to-cloud authentication
Embedded Computing Design’s Best in Show Award Winner Embedded Computing Design’s Best in Show Award Winner Embedded Computing Design’s Best in Show Award Winner
×
