IPS60R280PFD7S

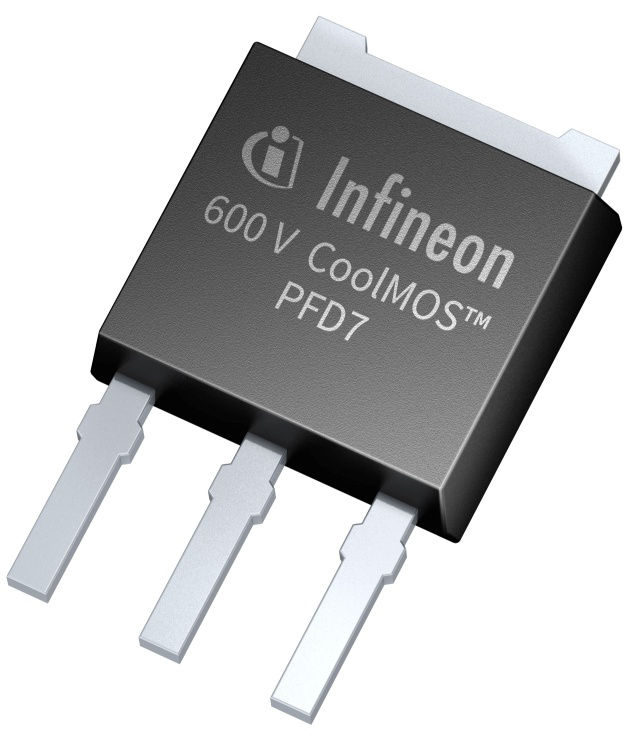

600V CoolMOS™ PFD7 superjunction MOSFET in TO-251 IPAK short-lead package
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPS60R280PFD7S
IPS60R280PFD7S
データシート

Product details

  • ID max
    12 A
  • ID (@25°C) max
    12 A
  • IDpuls max
    31 A
  • Ptot max
    51 W
  • QG (typ @10V)
    15.3 nC
  • QG
    15.3 nC
  • RDS (on) max
    280 mΩ
  • RDS (on) (@10V) max
    280 mΩ
  • VDS max
    600 V
  • VGS(th)
    4 V
  • パッケージ
    IPAK
  • ピン数
    3 Pins
  • 動作温度
    -40 °C to 150 °C
  • 実装
    THT
  • 極性
    N
  • 特別な機能
    price/performance
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
The 600V CoolMOS™ PFD7 superjunction MOSFET (IPS60R280PFD7S) complements the CoolMOS™ 7 offering for consumer applications. The IPS60R280PFD7S in a TO-251 IPAK SL package features RDS(on) of 280mOhms resulting in low switching losses. The products come with a fast body diode ensuring a robust device and in turn reduced BOM for the customer. This product family is tailored to ultra-high power density as well as highest efficiency designs. The products primarily address ultra-high density chargers, adapters and low-power motor drives. The 600V CoolMOS™ PFD7 offers improved light- and full-load efficiency over CoolMOS™ P7 and CE MOSFET technologies resulting in an increase in power density by 1.8W/inch3.

機能

  • Very low FOM RDS(on) x Eoss
  • Integrated robust fast body diode
  • Up to 2kV ESD protection
  • Wide range of RDS(on) values
  • Excellent commutation ruggedness
  • Low EMI
  • Broad package portfolio

利点

  • Minimized switching losses
  • Power density improvement compared to latest CoolMOS™ charger technology
  • Increased efficiency and improved thermal behavior compared to CoolMOS™ CE technology for low power drives applications
  • BOM cost reduction and easy manufacturing
  • Robustness and reliability
  • Easy to select the right parts for design fine-tuning
