ICE3BR1065J
ICE3BR1065J
データシート

Product details

  • ESD Protection max
    2 kV
  • ICC
    3.8 mA
  • Pout max
    35 W
  • RDS (on) max
    1.05 Ω
  • tf
    30 ns
  • tr
    30 ns
  • VCC
    10.5 V to 25 V
  • VDS max
    650 V
  • Green Product
    Yes
  • Sub Application
    Offline SMPS
  • Switching Frequency
    65 kHz
  • Topology
    Flyback

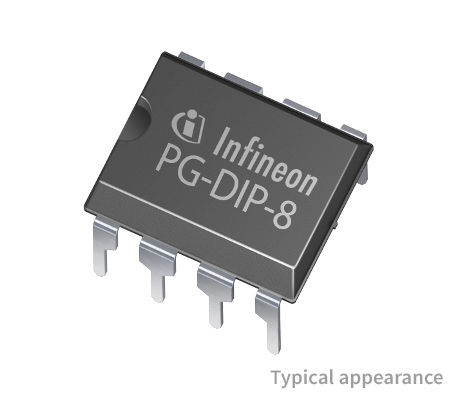

  • Package
    PG-DIP-8
  • Operating Temperature
    -25 °C to 130 °C
  • Frequency Range
    65kHz fixed
  • Mounting
    THT
  • Target Application
    Power Supplies
  • Technology
    Gen3R
  • Type
    PWM controller with integrated MOSFET
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
Integrated power management IC integrated with 650V avalanche rugged CoolMOS™, startup cell and fixed frequency current mode flyback PWM controller in DIP-8 package. Capable for 35W SMPS design. The additional features include an active burst mode operation to achieve extremely low standby power consumption, frequency jittering to obtain low EMI, adjustable blanking window to facilitate load jumps and high voltage start-up cells that allows you to quickly power up your controller from the rectified line.

機能

  • Peak current control (current mode)
  • 65kHz fixed switching frequency with frequency jitter (low EMI)
  • Adjustable blanking window
  • Active burst mode (low standby power <100mW)
  • Enhanced integrated protection functions (auto-restart)
  • Accurate peak power limitation
  • Modulated gate drive
  • Auto-restart enable pin, etc.

利点

  • Extremely low standby power
  • Very accurate max power control
  • Low EMI noise, etc.
