BGT60UTR11AIP

XENSIV™ highly integrated 60 GHz FMCW radar sensor for consumer electronics and IoT applications
データシート
パッケージ
ボード
ソフトウェア
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGT60UTR11AIP
BGT60UTR11AIP
EA.
データシート

Product details

  • FoV (HPBW)
    120
  • NF max
    12 dB
  • Rxアンテナの数
    1
  • Txアンテナの数
    1
  • アンテナ
    Antennas in package
  • ゲイン
    3 dBi
  • ファミリー
    XENSIV™ 60GHz Radar Sensors
  • モーション
    Yes
  • 周波数
    57.4 GHz to 63 GHz
  • 対象アプリケーション
    Smart Home devices, Lighting systems, Security systems, TV, Laptops, Smart appliances
  • 最大検出範囲
    15 m
  • 最小検出範囲
    0.2 m
  • 消費電流
    174 mA
  • 温度範囲
    -20 to +70°C
  • 認定
    Industrial (JEDEC20/22)
  • 速度［m/s］
    Yes
  • 電源電圧
    1.2 V, 1.8 V, 3.3 V
推奨
OPN
BGT60UTR11AIPXUMA1
製品ステータス active and preferred
インフィニオンパッケージ
PG-VF2BGA-28
パッケージ名 N/A
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 3
モイスチャーパッキン DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
PG-VF2BGA-28
パッケージ名 -
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 3
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
The BGT60UTR11AIP is optimized for low power consumption and system cost optimization. With its compact size of only 16 mm², it is suitable for integration into the smallest devices. The MMIC is manufactured using Infineon's B11 SiGe BiCMOS technology, ensuring excellent RF performance.Its 5.6 GHz ultra-wide bandwidth allows FMCW operations with extremely high resolution. The detection of sub-mm movements ensures not only extremely sensitive presence and motion detection up to a range of 15 m, but also enables mm precise range measurements, 1D gestures as well as the measurement of vital signs such as breathing rate and heart rate.The sensor features a 50 MHz digital SPI interface for configuration and data transfer, while an integrated state machine enables real-time data acquisition without requiring constant interaction with the processor. With three different power modes, users have flexibility to optimize between performance and power consumption. The BGT60UTR11AIP's sub-mA average current consumption makes it suitable for battery-powered devices.For first evaluation of the radar sensor, we offer the DEMO BGT60UTR11AIP as well as the Radar Development Kit (RDK), which can be downloaded via the Infineon Developer Center (IDC).

機能

  • 60 GHz radar operating with 5.6 GHz bandwidth and ramp speed of up to 400 MHz/µs
  • Antenna in package (AIP) with ±60° Field of View (FoV)
  • Integrated finite state machine (FSM) for low power consumption and real-time operation
  • 4 MSps ADC sampling rate
  • Single 50 MHz SPI for chip configuration and data transfer
  • Broadcast mode to trigger and configure multiple devices

利点

  • High sensitivity to detect sub-mm movements for human presence detection and vital sensing applications
  • High bandwidth for precise distance measurements with mm accuracy
  • Small size for integration into space-constrained environments
  • Low power consumption for battery-driven applications

図

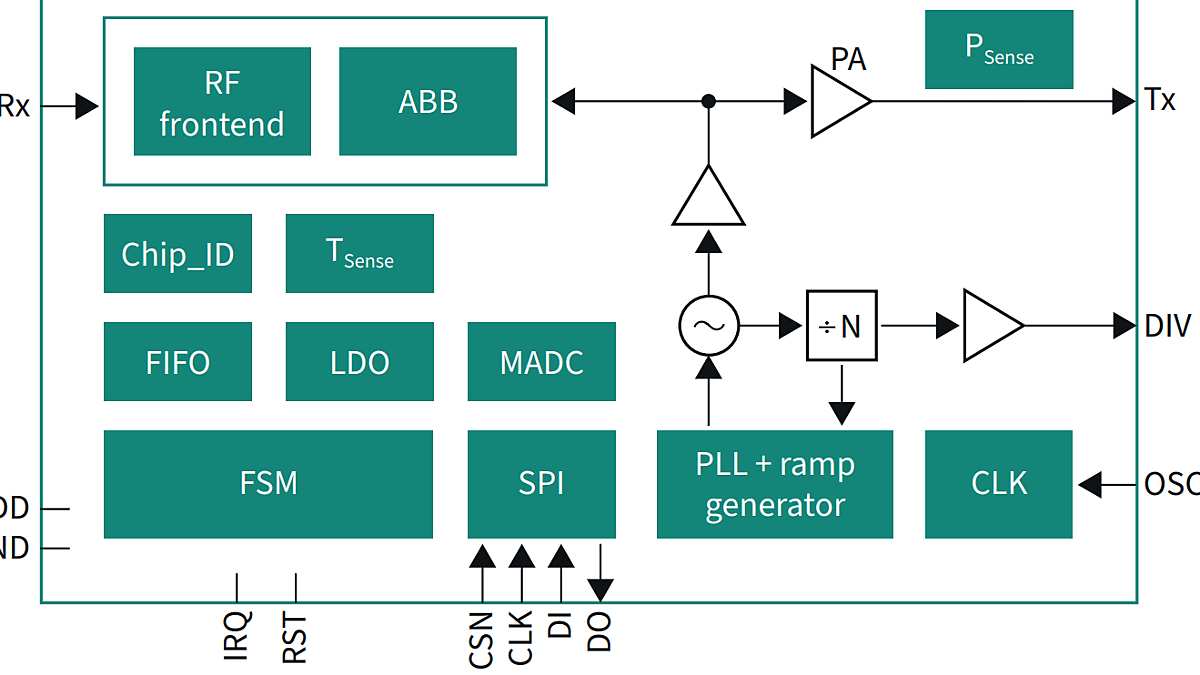

BGT60UTR11AIP_Block-diagram
BGT60UTR11AIP_Block-diagram
BGT60UTR11AIP_Block-diagram BGT60UTR11AIP_Block-diagram BGT60UTR11AIP_Block-diagram
×
modalImg
