BGSA147ML10

BGSA147ML10 ultra-low resistance SP4T antenna tuner
データシート
パッケージ
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSA147ML10
BGSA147ML10
EA.
データシート

Product details

  • COFF
    155 fF
  • RON
    0.8 Ω
  • VRFmax
    45 V
  • サイズ
    1.1 x 1.5 mm²
  • スイッチ タイプ
    SP4T
  • ハロゲンフリー
    yes
  • 制御インターフェース
    MIPI 2.1
  • 周波数範囲
    0.4 – 7.125 GHz
推奨
OPN
BGSA147ML10E6327XTSA1
製品ステータス active and preferred

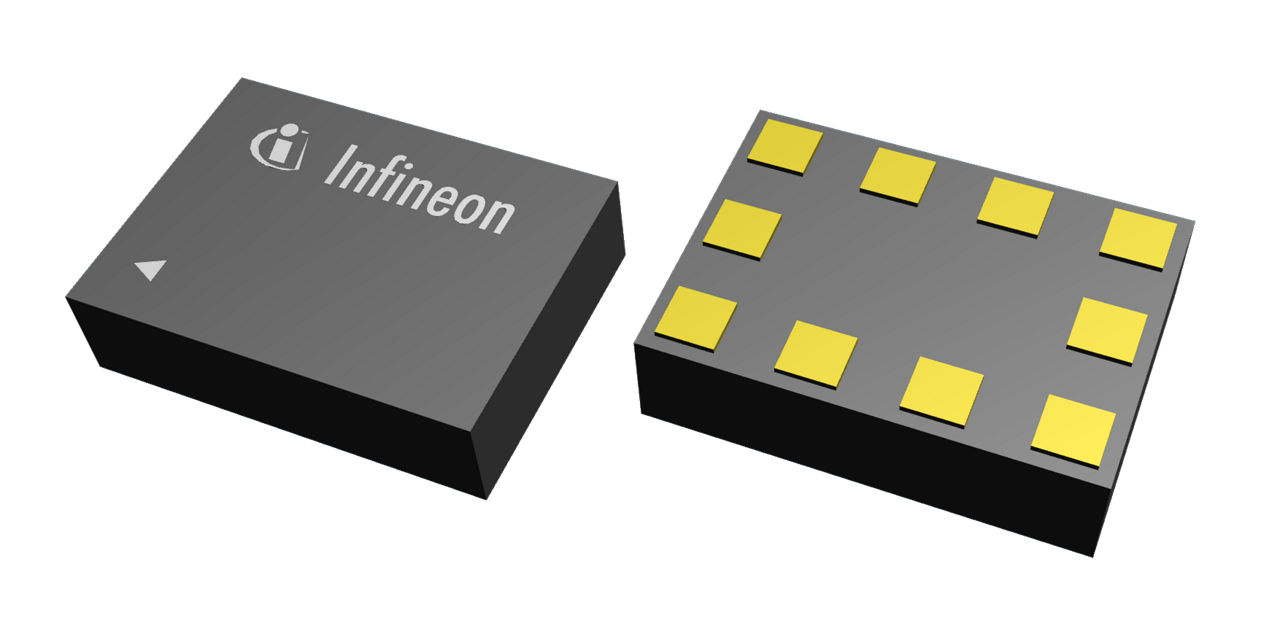

インフィニオンパッケージ
TSLP-10-3
パッケージ名 N/A
包装サイズ 7500
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
TSLP-10-3
パッケージ名 -
包装サイズ 7500
包装形態 TAPE & REEL
水分レベル 1
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
BGSA147ML10 is a Single-Pole Four Throws (SP4T) Antenna Tuning switch optimized for RF applications up to 7.125 GHz. Its MIPI RFFE digital control interface allows easy implementation and best flexibility when operated in cellular mobile RF Front-End designs. BGSA147ML10 is made of 4 ultra-low ON resistance / low OFF capacitance series switches and 4 shunt to ground switches enabling on-demand open-reflective or short-reflective OFF ports behaviour. This last feature is of great value to reduce antenna engineer development time in case of unwanted antenna resonance or to improve antenna efficiency with less component tuning effort. Unlike GaAs RF switches, highly linear RF performance is reached at all signal levels within the operating conditions. High RF voltage ruggedness and individually programmable shunt to ground switches on each RF throw make BGSA147ML10 particularly efficient for switching inductors and capacitors in RF matching and antenna tuning circuits.

機能

  • Designed for high-linearity antenna tuning switching and RF tuning applications
  • Ultra low RON resistance of 0.8 Ω at each RF port in ON state
  • Individually controlled reflective open or short to ground OFF ports to eliminate unwanted antenna resonances
  • Low COFF capacitance of 155 fF at each port in OFF state
  • High RF operating voltage handling above 45 V in OFF state
  • MIPI RFFE 2.1 compliant control interface
  • External USID_sel pin enabling 3 default USID addresses
  • No RF parameter change within supply voltage range
  • No blocking capacitors required if no DC applied on the RF lines
  • No power supply decoupling required
  • Small form factor 1.1 mm x 1.5 mm x 0.39 mm (MSL1,  260° C per JEDEC J-STD-020)
  • RoHS and WEEE compliant package
