AS5951

AS5951

32-slice CT sensor chip with photodiodes and readout circuit
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AS5951
AS5951
データシート


製品仕様情報

  • Input channels
    128
  • Input related noise
    0.21
  • Integration time
    200 µs
  • Power consumption per channel (最小)
    0.82 mW
  • Resolution
    25 bit
  • 機能
    x-ray sensing

OPN
製品ステータス
インフィニオン パッケージ
パッケージ名
梱包サイズ
梱包形態
MSL (湿度感受性レベル)
防湿梱包
鉛フリー
ハロゲンフリー
RoHS対応

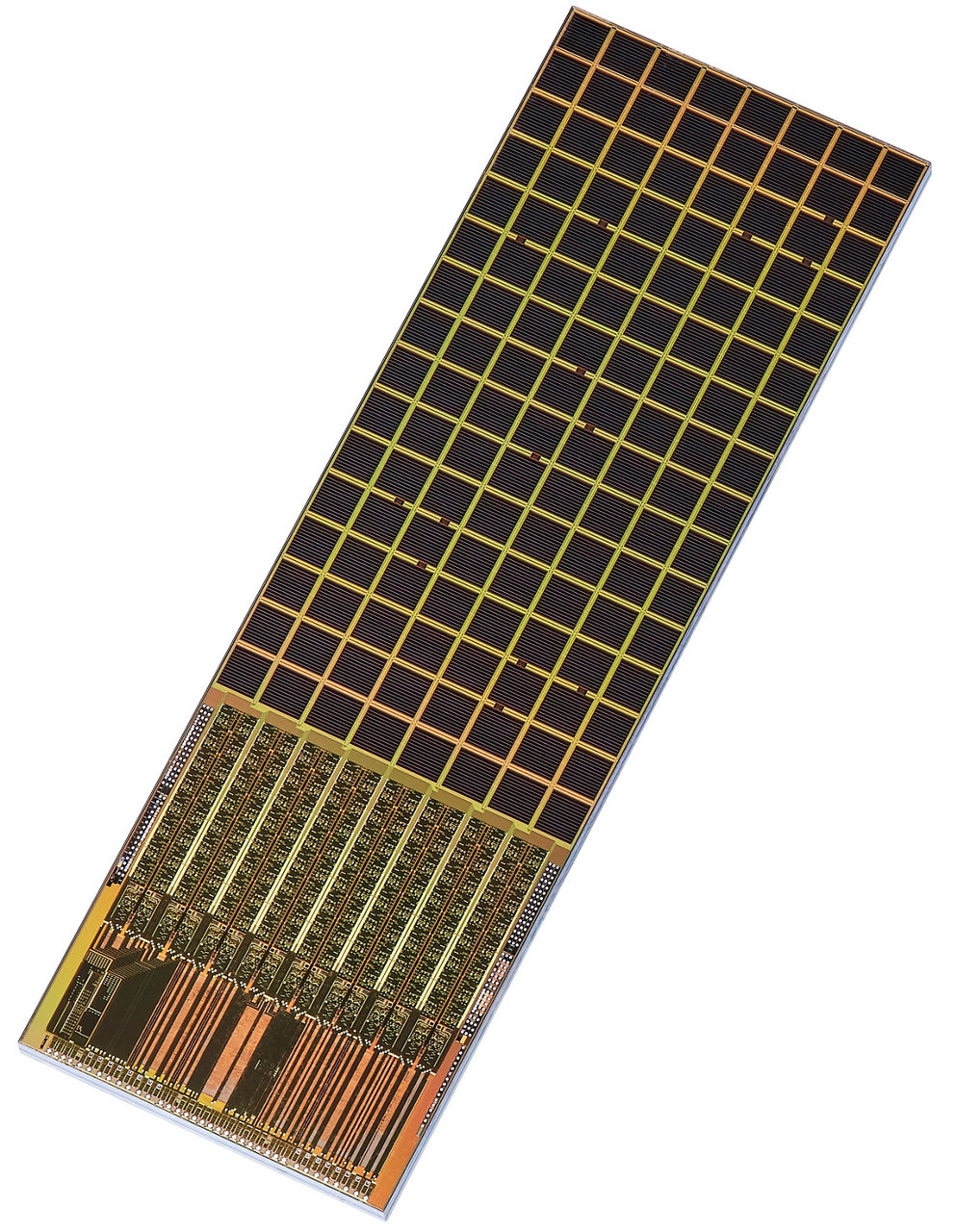

The AS5951 is a cost-optimized sensor chip for 32-slice CT detectors that combines the photodiodes with a pixel dimension of 0.98x0.98 mm² and the readout circuit on a single CMOS chip. This sensor solution, where the photodiode array and a 128-channel ADC are side-by-side, allows the assembly of the pixel array on three adjacent edges of the device. Improved performance can be achieved due to superior dark current, noise and power consumption.

特長

  • Monolithic integration of ADC and photodiode
  • Automatic zero offset voltage calibration
  • Reference voltage and bias current generator
  • High resolution mode and low dose mode
  • Customization of pixel dimensions on request

利点

  • Ultra-low dark current of max. 1pA
  • Lowest input related noise of typ. 0.21fC
  • Fast integration time down to 200µs
  • High ADC linearity of ±600ppm including photodiode

アプリケーション
