AS5245

AS5245

Redundant 12-bit rotary position sensor with digital angle (interface) and ABI output
データシート

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AS5245
AS5245
データシート

製品仕様情報

  • Accurancy
    0.5 °
  • Die in package
    dual
  • Operating ambient temperature 範囲
    -40 °C～150 °C
  • Output interface
    PWM, ABI, SSI
  • Resolution
    12 bit
  • Rotation speed (最大)
    30000 rpm
  • 技術
    magnetic
  • 機能
    on-axis angle position sensing
  • 車載用認定品
    AEC-Q100
  • 電源電圧
    3.3 V, 5 V
OPN
製品ステータス
インフィニオン パッケージ
パッケージ名
梱包サイズ
梱包形態
MSL (湿度感受性レベル)
防湿梱包
鉛フリー
ハロゲンフリー
RoHS対応
Infineon stock last updated:
The AS5245 is a redundant, contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879°/4096 positions per revolution via a serial bit stream and as a PWM signal

特長

  • Contactless High Res. 360° Position Encoding
  • Two digital 12-bit absolute outputs
  • Output Signal: Index + Quad. A/B (10/12-bit)
  • User programmable zero position
  • Failure detection: magnet placement + supply
  • Magnet Z-axis placement indication
  • Tolerant to magnet misalignment and air gap variations
  • Wide temperature range: -40ºC to 150ºC
  • Unique Chip Identifier
  • Automotive qualified to AEC-Q100, grade 0

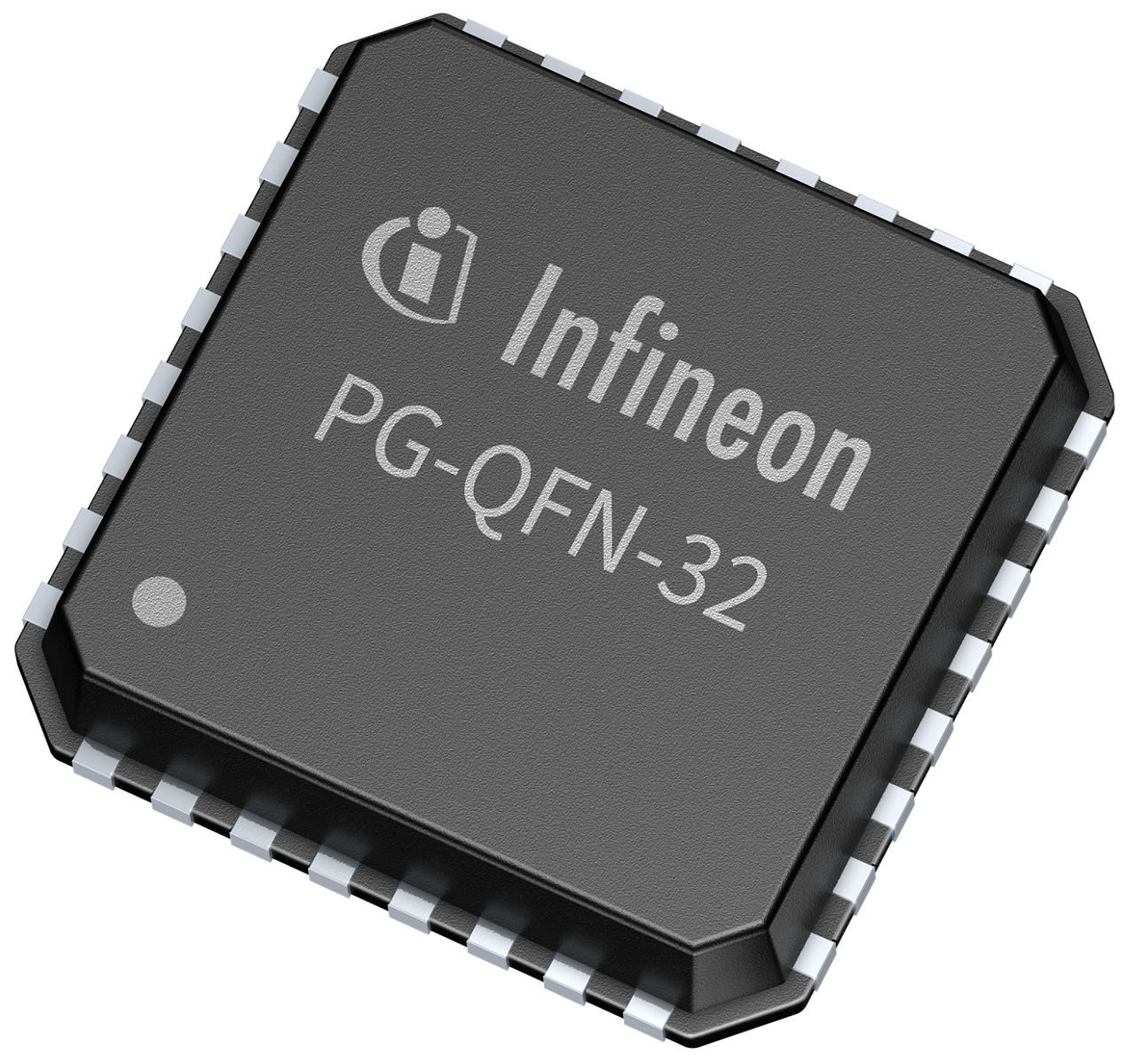

  • Small package: QFN 32 LD (7x7)

利点

  • No mechanical wear
  • High resolution absolute position sensing
  • Easy to use for motor control
  • Adjustable zero position
  • Tolerant to magnet misalignment
  • Usable for high speed applications
  • Tolerant to airgap variations
  • Operates up to 150°C ambient temperature
  • Supports daisy chain application
  • Fitting to automotive applications
  • Two sensors in one package
