TLF35585QVS02 BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF35585QVS02 BOARD
TLF35585QVS02 BOARD

製品詳細

  • Applications
    Automotive
  • Sub Application
    Powertrain, Electrical Drive Train, Safety Chassis
  • Family
    DC-DC Converter, OPTIREG™ PMIC
  • Board Type
    Demo Board
  • Output Voltage
    5.8 V
  • Target Application
    Automotive
  • Product Category
    Evaluation Boards
  • Qualification
    Automotive
  • Supply Voltage
    3 V to 40 V
OPN
TLF35585QVS02BOARDTOBO1
製品ステータス coming soon
インフィニオンパッケージ N/A
パッケージ名 N/A
包装サイズ 1
包装形態 CONTAINER
水分レベル NA
モイスチャーパッキン NON DRY
鉛フリー No
ハロゲンフリー No
RoHS準拠 No
Infineon stock last updated:

製品ステータス coming soon
インフィニオンパッケージ N/A
パッケージ名 -
包装サイズ 1
包装形態 CONTAINER
水分レベル NA
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応

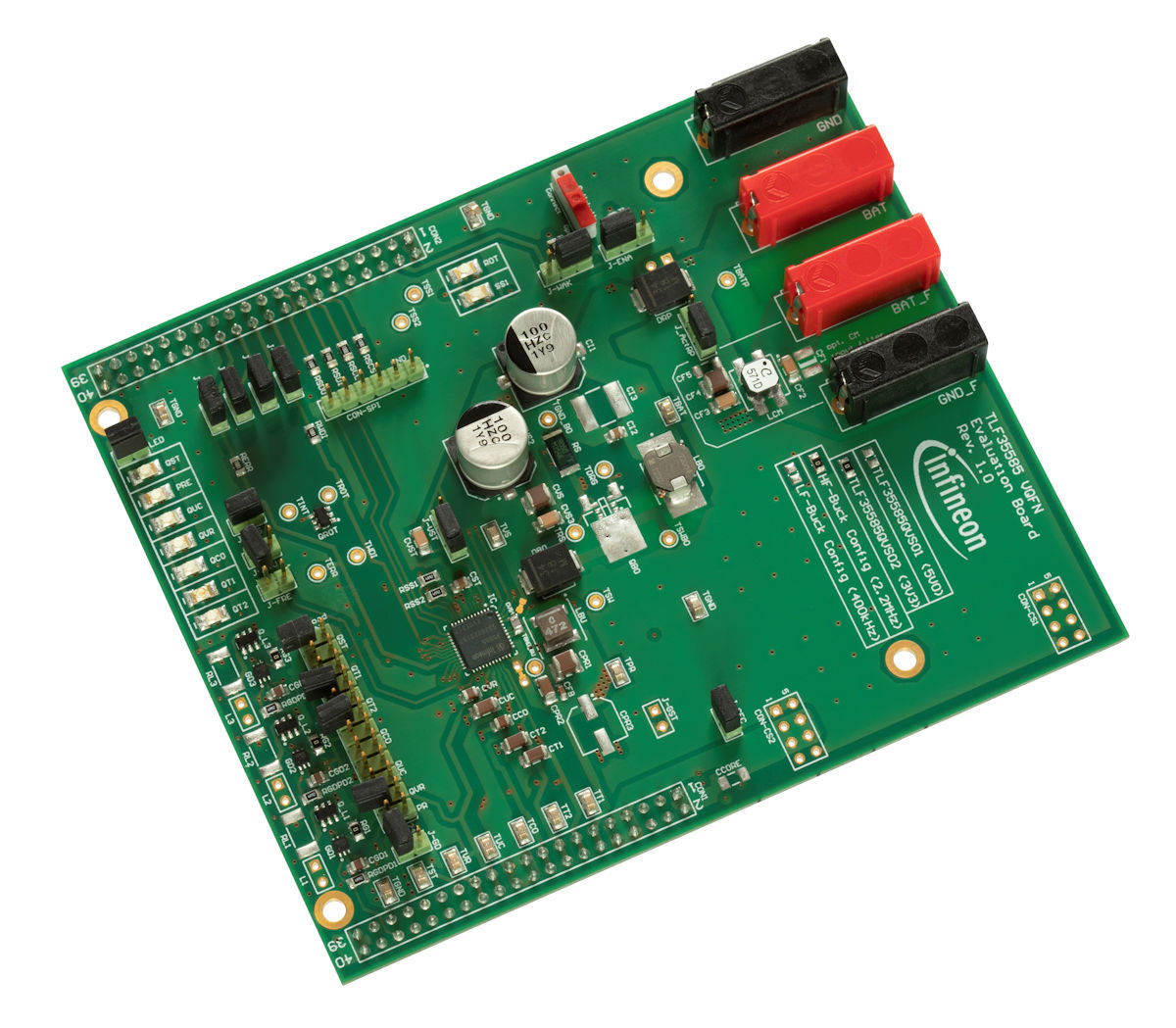

This application board enables you to test analog performance of the OPTIREGTM PMIC TLF35585QVS02, functional safety system – supply for AURIXTM microcontroller. The OPTIREGTM PMIC TLF35585 device consists of step up/down pre-regulator, three linear post regulators and two trackers VFB =5.8 V, Quc = 5.0 V/ 3.3 V, Qst = 5.0 V/ 3.3 V, Qco = 5.0 V, Qvr = 5.0 V, Qt1=Qt2 = 5.0 V. The board enables the user to test all power supply rails with external load resistors and to measure SPI signals, INT interrupt signal, ERR signal and window-watchdog service signal (WDI). Purchasing the companion board  TLF35584 MC it is possible to test also the digital performance. For datasheet and further support, please contact your sales representative or the Technical Assistance Center (TAC).

機能

  • OPTIREGTM PMIC and the passive external components integrated on one PCB
  • Optimized layout
  • Connector available to enable fast oscilloscope measurements
  • ISO 26262 Compliant

利点

  • Analog testing of TLF35x power supply performance w/o the need of a microcontroller unit
  • Testing of FuSa related functions: WWD, FWD, Err signal, SS1/ SS2, INT
  • Advantages
    • Get acquainted with safety system-supply mechanisms of TLF35x in a protected environment
    • Get expertise and save time: PCB layout and BOM indication to play around with
    • Quick set-up to verify the configuration meets your system requirements
