KIT_XE160FU_EK_V1
KIT_XE160FU_EK_V1

製品詳細

  • Family
    Microcontroller
  • Board Type
    Evaluation Board
  • Target Application
    Motor Control & Drives
  • Product Name
    Easy KIT XE16xFU
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:

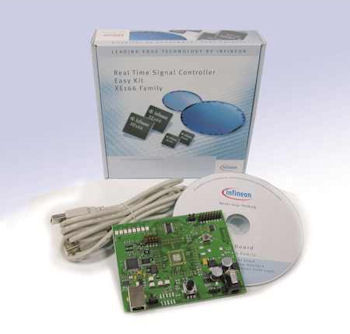

Order Nr.: KIT_XE160FU_EK_V1 Price: 149,- EUR Buy Online For evaluation of XE160FU/XE161FU including Getting Started DAVE(TM), technical documentation, compiler and debugger, USB cable for power supply, virtual COM port and flash programming and debugging.MCU Derivate:XE160FU-8F40R CPU Clock: 66 MHz On-Chip Memory: 8 kByte SRAM, 64 kByte FLASH

機能

  • Easy Kit Hardware
  • Getting Started, first 3 Steps to set up your Hardware, install the Tools and Debug the first Program
  • Technical Documentation: e.g. User manuals (System unit and Peripheral unit), Architecture manual, Application notes, Errata sheets, Data Sheets, Board Documentation (pdf-version),
  • Evaluation Versions of Development Tools: e.g. Compiler, Debugger, DAvE Mother System v2.1 and Derivative Implementation Files (DIP), Memtool (Flash Programming Tool),
  • Training Documentation, Demo Programs, Hands On Training (HOT).
  • USB connector for ASC/ JTAG/ SPD Interface
  • 4-pin header for LIN Transceiver
  • 16-pin header for JTAG interface (OCDS)
  • 10-pin header for DAP/ SPD interface
  • Low-Drop Voltage Regulator TLE 4274
  • Four status LED´s for Power/RESET/JTAG
  • LIN Transceiver TLE 7259
  • FT2232HL Dual USB to UART/JTAG interface
  • SPI EEPROM 128 Kbit AT25128N
  • 8 general purpose LEDs
  • Potentiometer for ADC
  • Reset switch
