EVALSF3R-ICE3BR4765J
EVALSF3R-ICE3BR4765J
Application note

製品仕様情報

  • ファミリー
    CoolSET™
  • ボードタイプ
    Evaluation Board
  • 製品名
    EVALSF3R-ICE3BR4765J
OPN
EVALSF3RICE3BR4765JTOBO1
製品ステータス on request
インフィニオン パッケージ --
パッケージ名 N/A
梱包サイズ 1
梱包形態 CONTAINER
MSL (湿度感受性レベル) N/A
防湿梱包 NON DRY
鉛フリー No
ハロゲンフリー No
RoHS対応 No
Infineon stock last updated:

製品ステータス on request
インフィニオン パッケージ --
パッケージ名 -
梱包サイズ 1
梱包形態 CONTAINER
MSL (湿度感受性レベル) -
防湿梱包 NON DRY
鉛フリー
ハロゲンフリー
RoHS準拠

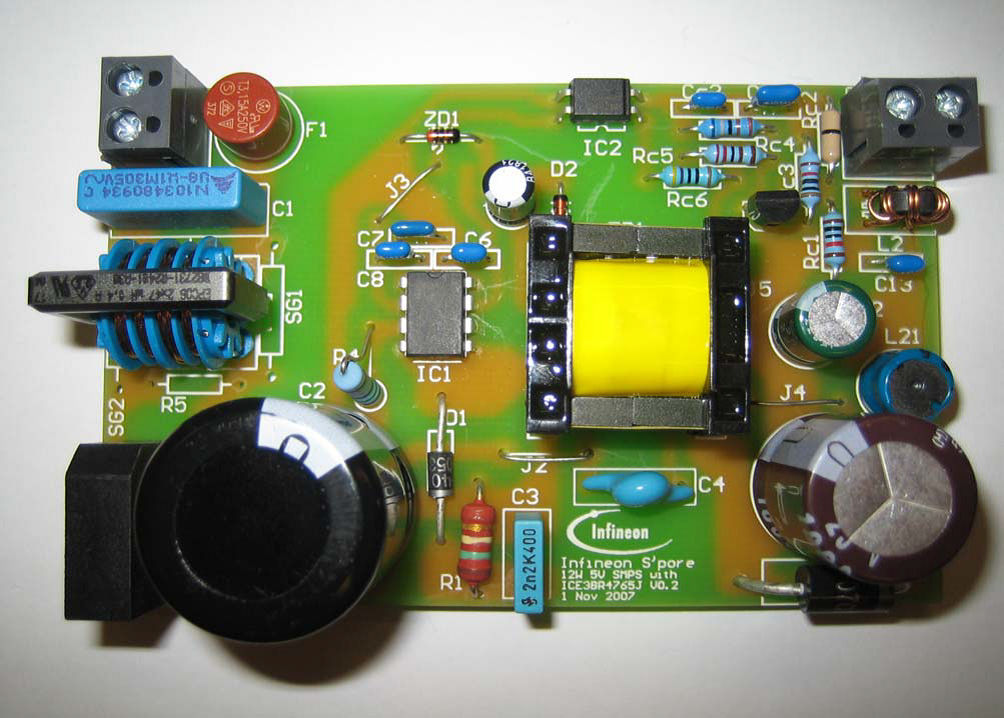

The demo board operates at 65kHz in Discontinuous Conduction Mode with secondary side control regulation. It's suitable for small power supplies like DVD players, game consoles, and chargers. It includes Active Burst Mode, auto restart protection for serious faults, and BiCMOS design. It also features built-in soft start time, frequency jitter, and external auto-restart. It excels in low standby power and EMI performance.

特長

  • 650V avalanche rugged CoolMOS™ with built-in Start-up Cell
  • Active Burst Mode for lowest Standby Power
  • Fast load jump response in Active Burst Mode
  • 65 kHz internally fixed switching frequency
  • Auto Restart Protection Mode for Over-load, Open Loop, Vcc Undervoltage, Over-temperature & Vcc over-voltage
  • Built-in Soft Start
  • Built-in blanking window with extendable blanking time for short duration high current
  • External auto-restart enable
  • Max Duty Cycle 75%
  • Overall tolerance of Current Limiting < ±5%
  • Internal PWM Leading Edge Blanking
  • BiCMOS technology provides wide VCC range
  • Built-in Frequency jitter feature and soft driving for low EMI
