EVALSF3R-ICE3AR4780JZ

Application note
ボード

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVALSF3R-ICE3AR4780JZ
EVALSF3R-ICE3AR4780JZ
Application note

製品仕様情報

  • ファミリー
    CoolSET™
  • ボードタイプ
    Evaluation Board
OPN
SF3RICE3AR4780JZTOBO1
製品ステータス on request
インフィニオン パッケージ --
パッケージ名 N/A
梱包サイズ 1
梱包形態 CONTAINER
MSL (湿度感受性レベル) N/A
防湿梱包 NON DRY
鉛フリー No
ハロゲンフリー No
RoHS対応 Yes
Infineon stock last updated:

製品ステータス on request
インフィニオン パッケージ --
パッケージ名 -
梱包サイズ 1
梱包形態 CONTAINER
MSL (湿度感受性レベル) -
防湿梱包 NON DRY
鉛フリー
ハロゲンフリー
RoHS準拠

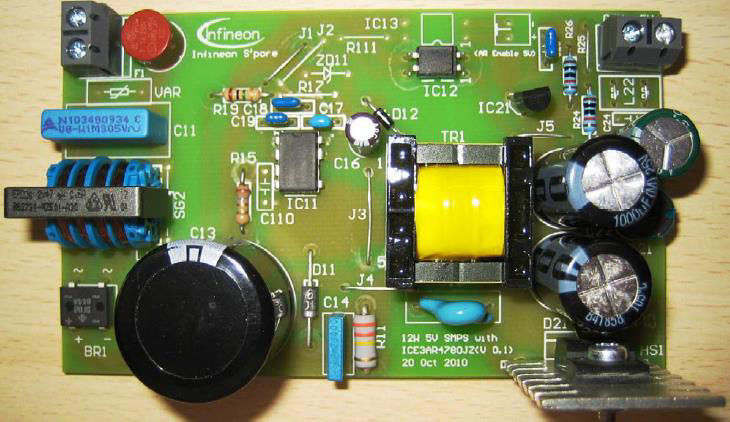

The 12W 5V power supply uses CoolSET™ ICE3AR4780JZ in a flyback converter, operating at 100kHz in Discontinuous Conduction Mode. It includes Active Burst Mode, auto restart protection for major faults, and BiCMOS design. It also features adjustable brownout, built-in soft start time, frequency jitter, and external auto-restart. It excels in low standby power and EMI performance.

特長

  • 800V avalanche rugged CoolMOS™ with Startup Cell
  • Active Burst Mode for lowest Standby Power
  • Selectable entry and exit burst mode level
  • 100kHz internally fixed switching frequency with jittering feature
  • Auto Restart Protection for Over load, Open Loop, VCC Under voltage & Over voltage and Over
  • temperature
  • External auto-restart enable pin
  • Over temperature protection with 50°C hysteresis
  • Built-in 10ms Soft Start
  • Built-in 20ms and extendable blanking time for short duration peak power
  • Propagation delay compensation for both maximum load and burst mode
  • Adjustable brownout feature
  • Overall tolerance of Current Limiting < ±5%
  • BiCMOS technology for low power consumption and wide VCC voltage range
  • Soft gate drive with 50Ω turn on resistor

利点

  • Low standby power
  • Good EMI performance

アプリケーション
