TLE92464ED

TLE92464ED is designed for control of 4 linear solenoids in automatic transmission, electronic stability control, and active suspension applications.
データシート
パッケージ
ボード

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92464ED
TLE92464ED
データシート

Product details

  • Currently planned availability until at least
    2039
  • RDS (on) (マルチ)
    115 mOhm
  • SPI
    32 Bit
  • チャネル
    4
  • 備考
    4 Channel Integrated Constant Current Control IC
  • 出力電流
    1.5 A
  • 分類
    ISO 26262-compliant
  • 動作電圧
    4 V to 40 V
  • 静止電流
    0,01mA
推奨
OPN
TLE92464EDXUMA1
製哝ステータス active and preferred
インフィニオンパッケージ
PG-DSO-36
パッケージ坝 N/A
包装サイズ 1000
包装形態 TAPE & REEL
水分レベル 3
モイスポャーパッキン DRY
鉛フリー Yes
ポロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:

製哝ステータス
Active
インフィニオンパッケージ
PG-DSO-36
パッケージ坝 -
包装サイズ 1000
包装形態 TAPE & REEL
水分レベル 3
モイスポャーパッキン DRY
鉛フリー
ポロゲンフリー
RoHS対応
The TLE92464ED efficiently controls current through inductive loads with <1% error. It offers programmable target currents from 0-1500mA (15-bit resolution) and supports dither currents up to 1800mA. Its dither generator adds a programmable triangular/trapezoidal waveform to the setpoint. With integrated drive transistors and current sensing resistors, it minimizes external components. TLE92464ED is ISO 26262 compliant, ensuring ASIL C safety.

機能

  • Four independent low side channels
  • <1% current control accuracy
  • Programmable setpoint from 0mA to 1.5A
  • Load current including dither 1.8A
  • Current in parallel channel mode 2.7A
  • Integrated dither generator
  • Integrated sense resistor RSHUNT = 140mΩ
  • Excellent immunity to large load supply
  • Operation down to 3.5 V at VDD pin
  • 34 bit SPI with 8 bit CRC & SPI watchdog
  • Sophisticated protection and diagnostic

利点

  • Enables ASIL D on system level
  • Full temp range up to 175°C
  • ±1% Accuracy from -40°C to 150°C
  • Excellent Battery Ripple Rejection
  • simplifies 6CH TLE92466ED use.
  • Utilize TLE92466ED for software reuse
  • Scalable solution
  • Integrated Power Devices
  • Optimize component placement
  • Implement current limit, slew rate
  • Improved Short-to-Battery performance

図

tle92464ed 4chx
tle92464ed 4chx
tle92464ed 4chx tle92464ed 4chx tle92464ed 4chx

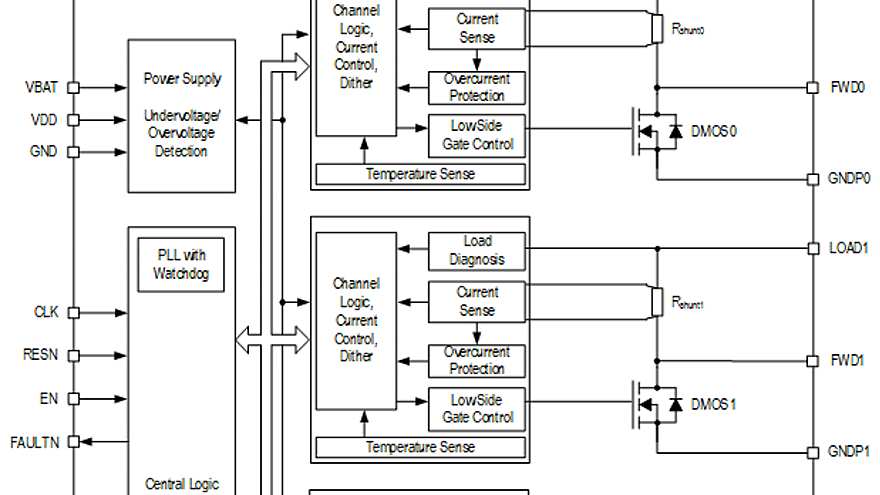

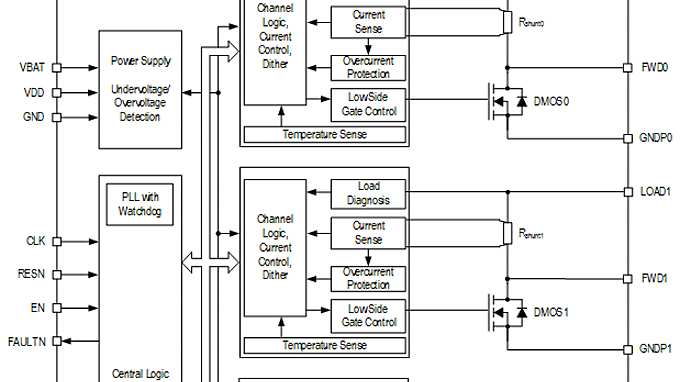

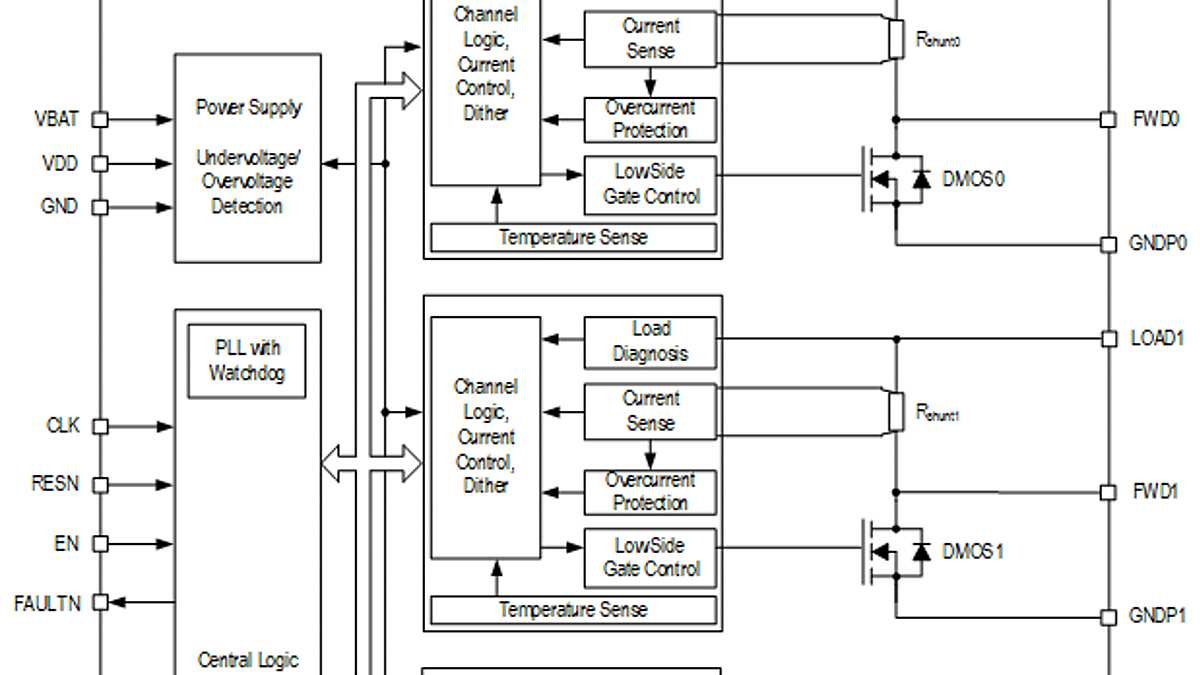

TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx
TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx TLE92464ED_Block_diagram_4CHx
×
