EVAL-1ED3330MC12M-SIC
Active and preferred
RoHS対応

EVAL-1ED3330MC12M-SIC

Evaluation board for 1ED3330MC12M - 12 A, 5.7 kV (rms) single -channel galvanic isolated gate driver with DESAT, active miller clamp driver, soft-off

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED3330MC12M-SIC
EVAL-1ED3330MC12M-SIC


製品仕様情報


推奨
OPN
EVAL1ED3330MC12MSICTOBO1
製品ステータス active and preferred
インフィニオン パッケージ N/A
パッケージ名 N/A
梱包サイズ N/A
梱包形態 CONTAINER
MSL (湿度感受性レベル) NA
防湿梱包 NON DRY
鉛フリー No
ハロゲンフリー No
RoHS対応 Yes
組立国
CN
ウェハ製造国
CN
Infineon stock last updated:
 個. 在庫あり

製品ステータス
Active
インフィニオン パッケージ N/A
パッケージ名 -
梱包サイズ 0
梱包形態 CONTAINER
MSL (湿度感受性レベル) NA
防湿梱包 NON DRY
鉛フリー
ハロゲンフリー
RoHS準拠
組立国
CN
ウェハ製造国
CN

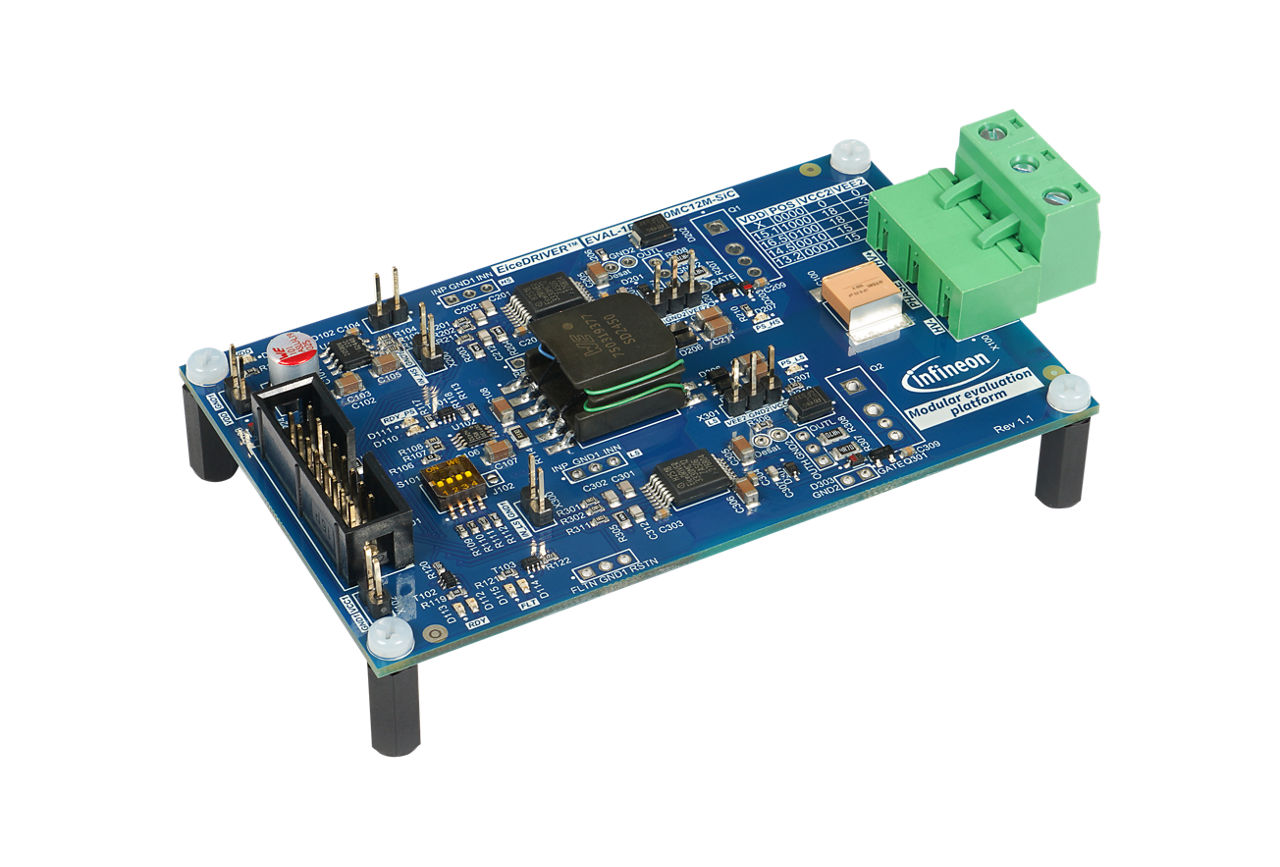

This evaluation board is designed to evaluate 1ED3330MC12M isolated gate driver ICs and discrete power switches in a half-bridge configuration. This board includes two 1ED3330MC12M and a galvanically isolated on-board power supply generated with the 2EP130R transformer driver IC. The board includes two, unassembled IMZC120R012M2H CoolSiC™ 1200 V SiC Trench MOSFETs in TO247-4 package, which can be substituted to evaluate other Infineon switches.

特長

  • 1ED3330MC12M isolated gate driver Ics
  • IMZC120R012M2H 1200 V SiC MOSFETs
  • 2EP130R transformer driver IC
  • DESAT Protection and Soft-off
  • Active Miller Clamp Driver
  • Shutdown with Fault

利点

  • Easy measurement and configuration
  • On-board power supply
  • Half Bridge Configuration
  • Switches unassembled
  • Infineon Modular evaluation platform
  • infineon.com/mep

アプリケーション

Bill of Material

ドキュメント

設計リソース

図

EVAL-1ED3330MC12M-SIC Block Diagram
EVAL-1ED3330MC12M-SIC Block Diagram
EVAL-1ED3330MC12M-SIC Block Diagram EVAL-1ED3330MC12M-SIC Block Diagram EVAL-1ED3330MC12M-SIC Block Diagram
×
