EVAL_6EDL7141_1KW_36V

Battery-powered applications using 6EDL7141 smart gate driver
ユーザーマニュアル

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_6EDL7141_1KW_36V
EVAL_6EDL7141_1KW_36V
ユーザーマニュアル

製品詳細

  • Pout
    0 kW to 1 kW
  • Interfaces
    Connector
  • Configuration
    6EDL7141, BSC012N06NS
  • Topology
    3-Phase Motor
  • Family
    Motor Driver, Gate Driver
  • Board Type
    Evaluation Board
  • Input Type
    DC
  • Output Current
    0 A to 40 A
  • Mounting
    Stand Offs
  • Dimensions
    114mm X 94mm X 62mm
  • Target Application
    E-scooter, Power Tools, E-bike, Drives, Motor Control & Drives, Gardening Tools, Agricultural Vehicles
  • Qualification
    Consumer
  • Description

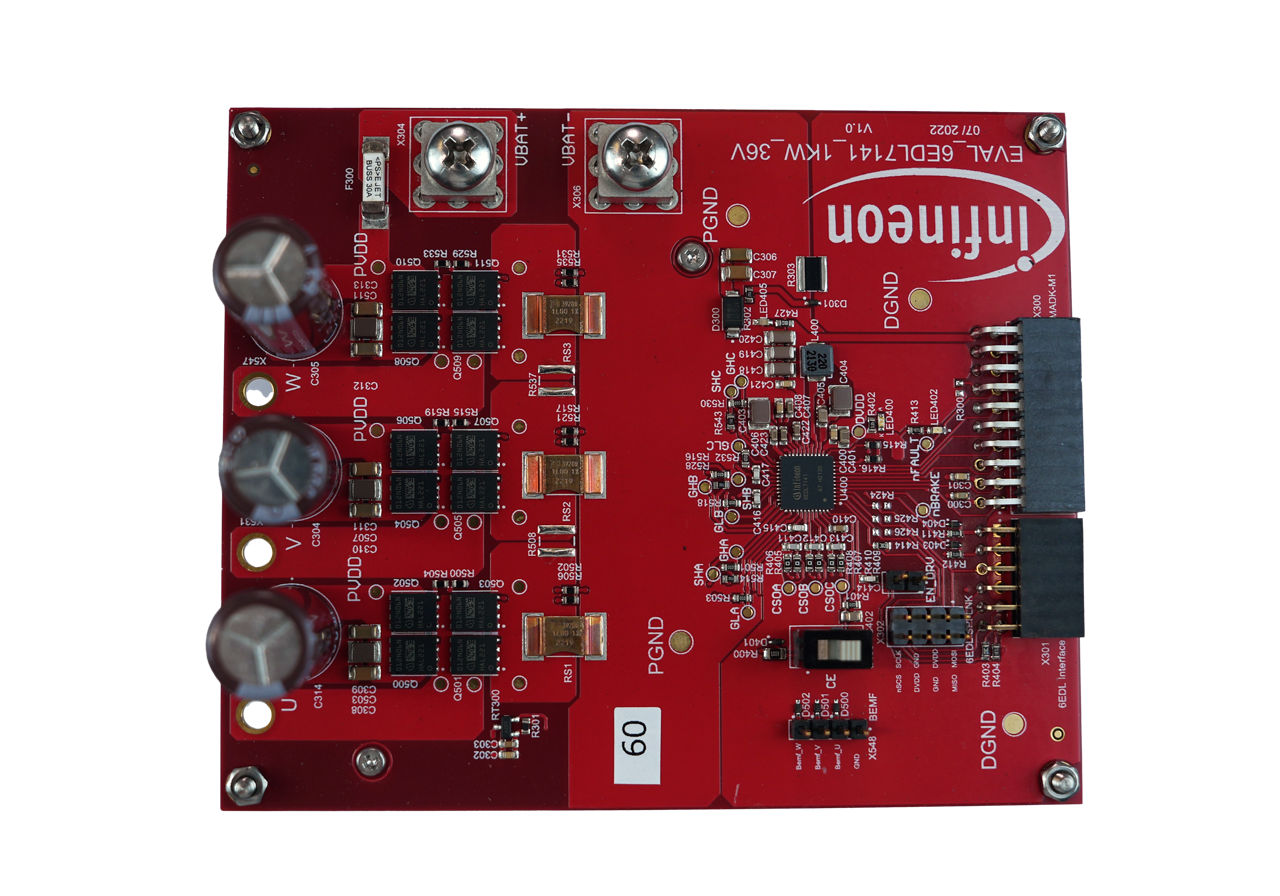

    EVAL_6EDL7141_1KW_36V is a standalone board which integrates the three-phase inverter power stage and the smart three-phase motor control MOTIX™ 6EDL7141 gate driver IC. This enables the development of high-performance battery-powered products using BLDC or PMSM motors. The power stage consists of two OptiMOS™ BSC012N06NS power MOSFETs in parallel for each phase. EVAL_6EDL7141_1KW_36V is capable of carrying out 1 kW power output at 36 V.
  • Supply Voltage
    12 V to 40 V
推奨
OPN
EVAL6EDL71411KW36VTOBO1
製品ステータス active and preferred
インフィニオンパッケージ --
パッケージ名 N/A
包装サイズ 1
包装形態 CONTAINER
水分レベル N/A
モイスチャーパッキン NON DRY
鉛フリー No
ハロゲンフリー No
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス
Active
インフィニオンパッケージ --
パッケージ名 -
包装サイズ 1
包装形態 CONTAINER
水分レベル -
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
EVAL_6EDL7141_1KW_36V is a standalone board which integrates the three-phase inverter power stage and the smart three-phase motor control MOTIX™ 6EDL7141 gate driver IC. This enables the development of high-performance battery-powered products using BLDC or PMSM motors. The power stage consists of two OptiMOS™ BSC012N06NS power MOSFETs in parallel for each phase. EVAL_6EDL7141_1KW_36V is capable of carrying out 1 kW power output at 36 V.

機能

  • Integrated MOTIX™ 6EDL7141 driver
  • OptiMOS™ BSC012N06NS power MOSFET
  • 3 shunts or 1 shunt for current sensing
  • SPI_LINK interface
  • MADK-M1 interface

利点

  • High efficiency
  • Continuous output power reach 1KW
  • Optimzing for PCB layout
  • Flexibly connect to MCU control board

Bill of Material
