TLE92464ED EVALBOARD

TLE92464ED evaluation board provides a quick pick and place solution for costumer’s lab evaluations.
ユーザーマニュアル
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92464ED EVALBOARD
TLE92464ED EVALBOARD
EA.
ユーザーマニュアル

製品詳細

  • Interfaces
    ARDUINO form factor
  • Family
    Constant Current Control IC for Transmission
  • Board Type
    Evaluation Board
  • Input Type
    DC
  • Dimensions
    Length: 73.57mm ; Width: 53.34 mm
  • Qualification
    Automotive
  • Supply Voltage
    40 V
推奨
OPN
TLE92464EDEVALBOARDTOBO1
製品ステータス active and preferred
インフィニオンパッケージ N/A
パッケージ名 N/A
包装サイズ 1
包装形態 CONTAINER
水分レベル NA
モイスチャーパッキン NON DRY
鉛フリー No
ハロゲンフリー No
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ N/A
パッケージ名 -
包装サイズ 1
包装形態 CONTAINER
水分レベル NA
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり

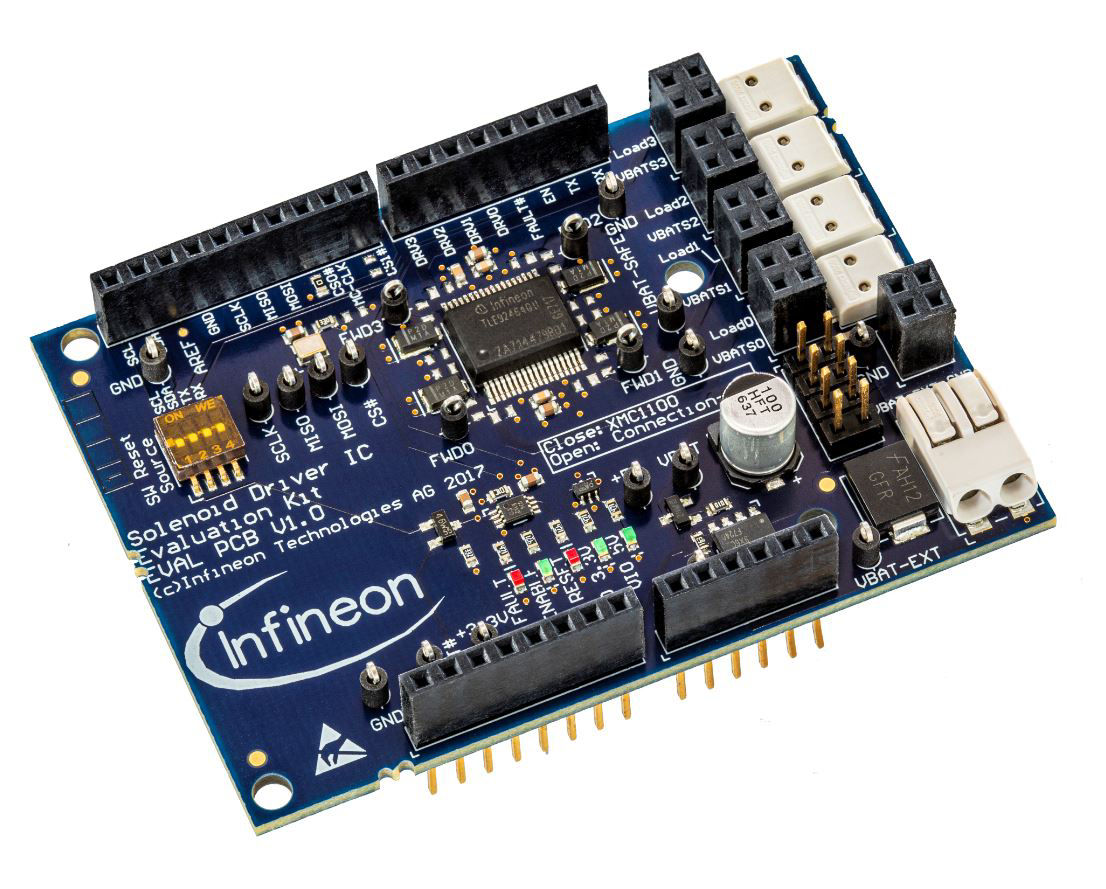

The Evaluation board comes with the Solenoid Driver TLE92464ED and all required external components. The Evaluation PCB is designed on an Arduino Formfactor which makes it controlled by all Arduino compatible microcontroller boards, e.g.: Infineon XMC1100 Boot Kit, Infineon XMC4700 Relax Kit, Aurix ShieldBuddy or Arduino Uno. Please note that the microcontroller board is not included.

機能

  • Integrated MOSFETs (RDSon = 115 mΩ)
  • 1% current control accuracy
  • Programmable setpoint from 0mA to 1.5A
  • Load current including dither 1.8A
  • Current in parallel channel mode 2.7A
  • Dither generator with frequency&waveform
  • 15 bit current setpoint resolution
  • Integrated sense resistor RSHUNT = 140mΩ
  • Excellent immunity to large load supply
  • Operation down to 3.5 V at VDD pin
  • 32 bit SPI with 8 bit CRC & SPI watchdog
  • Sophisticated protection&diagnostic fun

利点

  • Enables ASIL D on system level
  • Full temp range up to 175°C
  • ±1% Accuracy from -40°C to 150°C
  • Excellent Battery Ripple Rejection
  • simplifies 6CH TLE92466ED use.
  • Utilize TLE92466ED for software reuse
  • Scalable solution
  • Integrated Power Devices
  • Optimize PCB layout
  • Current limitation, slew rate control
  • Improved Short-to-Battery performance

用途
