EVALLEDICL8105E1

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVALLEDICL8105E1
EVALLEDICL8105E1

製品詳細

  • Pout
    40 W
  • Interfaces
    UART
  • Sub Application
    Power Management
  • Topology
    Flyback
  • Family
    LED Driver & Ballast Controller, MOSFET
  • Board Type
    Evaluation Board
  • Input Type
    AC, DC
  • Output Voltage
    15 V to 45 V
  • Output Current
    880 mA
  • Dimensions
    194 x 120 x 72
  • Target Application
    Power Supplies
  • Qualification
    Consumer
  • Supply Voltage
    90 V to 300 V
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:

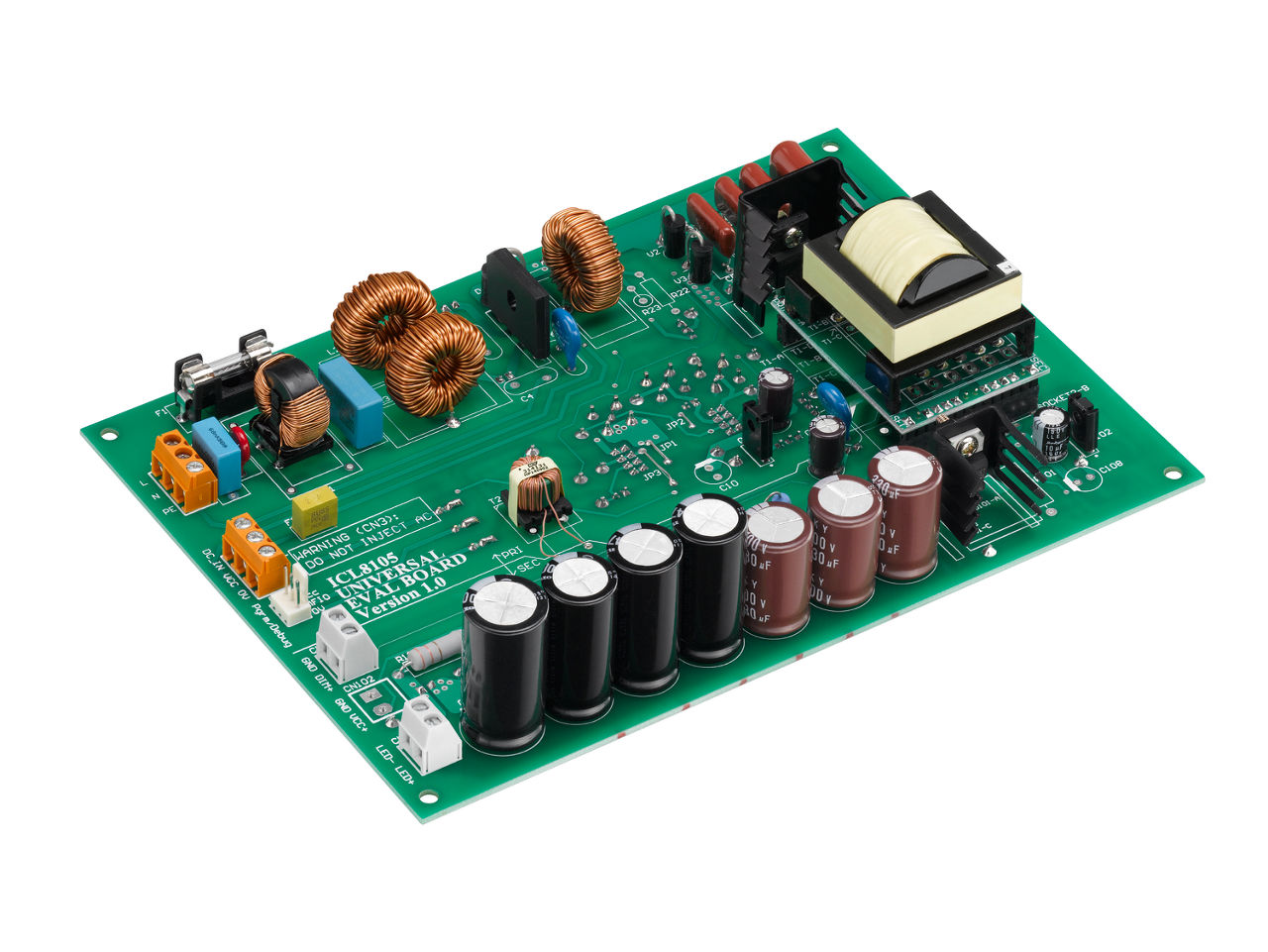

The ICL8105 universal evaluation board is designed to provide maximum flexibility to designers during the initial design phase. It serves as a flexible base for evaluating the performance of the ICL8105 digital flyback controller and CoolMOS™ power switch. The objective is to facilitate quick finalization of circuitry and component values before the design of a custom PCB.

機能

  • Universal AC input from 90 V~ to 305 V~
  • DC input option
  • Wide output voltage range: 20 V to 100 V
  • Output current: 0.1 A to 2.0 A
  • Tunable output voltage range: Wide/narrow/fixed
  • High efficiency with optional synchronous rectification
  • Selectable input and output capacitors
  • 0 – 10 V dimming with isolation support
  • Power rating option with 20W and 80W transformer included
  • Four daughter cards with ICL8105 included
  • Various footprint options for MOSFET/diode
  • Open load auto discharge
  • ICL8105 incl optimized parameter setting for 20W application, device parameters optionally configurable by graphical user interface (.dp vision)
