TLS810D1LD V50

The TLS810D1LD V50 is a linear voltage regulator featuring wide input voltage range, low drop out voltage and ultra low quiescent current.
データシート
パッケージ
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS810D1LD V50
TLS810D1LD V50
EA.
データシート

Product details

  • Currently planned availability until at least
    2038
  • Watchdog
    no
  • Status Output
    no
  • Dropout Voltage
    200 mV
  • Power Good
    no
  • Family
    OPTIREG™ linear High Performance
  • Base Product
    TLS810D1xx
  • Hold
    no
  • Reset
    yes
  • Regulator Type
    High Performance
  • Budgetary Price €/1k
    0.55
  • Output Voltage Type
    5.0 V
  • Output Current max
    100 mA
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.75 V to 42 V
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Accuracy
    2 %
  • Qualification
    Automotive
  • Over Voltage Protection
    no
  • Power Fail
    no
  • Quiescent Current
    9 µA
推奨
OPN
TLS810D1LDV50XUMA1
製品ステータス active and preferred
インフィニオンパッケージ
PG-TSON-10
パッケージ名 N/A
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 2a
モイスチャーパッキン DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
 EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
PG-TSON-10
パッケージ名 -
包装サイズ 5000
包装形態 TAPE & REEL
水分レベル 2a
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
This product  is available in new 3.3mm * 3.3mm leadless automotive package (TSON10) with improved optical inspection. With an input voltage range of 2.75V to 42V and ultra low quiescent of only 9μA the regulators are perfectly suitable for automotive or any other supply systems connected permanently to the battery. The TLS810D1LDV50 is available in 5.0V output voltage version with an accuracy of 2 % and output current capability up to 100mA. It is stable with only a small ceramic capacitor of 1μF at the output. The device can be switched on and off by the Enable feature leading to a current consumption of less than 1μA. With extended operating range down to 2.75V, TLS810D1LDV50 is also suitable to supply automotive systems operating during cranking condition. TLS810D1LDV50 includes internal protection features like output current limitation and over-temperature shutdown. The output voltage is supervised by the Reset feature, including under-voltage reset and delayed reset release at power-on.

機能

  • Wide Input Voltage Range: 2.75V to 42 V
  • 100 mA Current Capability
  • Fixed Output: 5V
  • Ultra Low Quiescent Current: 9μA
  • Low Dropout Voltage: 200 mV @ 100mA
  • Enable feature
  • Very low Shutdown Current: < 1μA
  • Reset Feature
  • Stable with 1μF Output Capacitor
  • Stable with Aluminium, Tantalum or Ceramic
  • Output Current Limit Protection
  • Overtemperature Protection
  • PG-TSON-10 package
  • Wide temperature range: -40°C < T j < 150°C
  • Available in PG-DSO8-EP Package
  • Green Product (RoHS compliant)
  • AEC Qualified

利点

  • Designed for harsh automotive environment: excellent transient robustness => lower input filtering cost
  • Cost optimized ceramic output capacitance => 1µF
  • Suitable for cranking (stop & start) => 2.75V input & very low dropout
  • Energy efficiency: Save battery resources in stand-by with ultra low quiescent curre

図

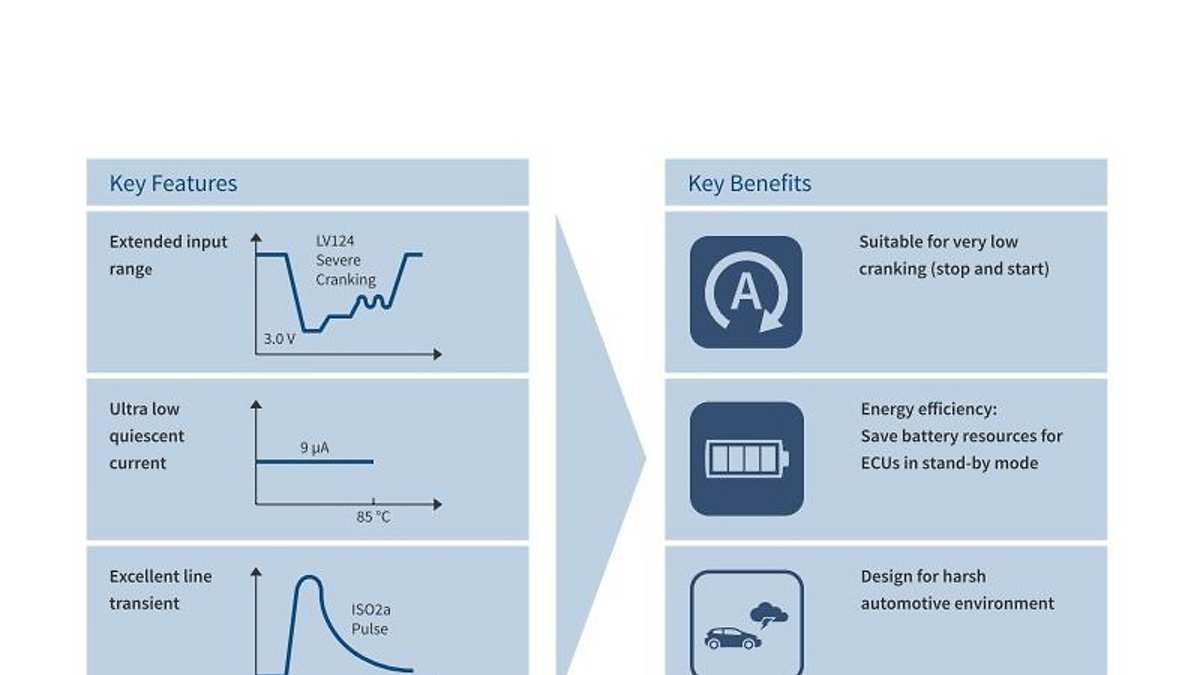

Key_Features_and_Benefits_TLS810D1
