IRS21531DS

600 V half-bridge gate driver IC with oscillator, integrated bootstrap FET, programmable frequency and programmable shutdown
EA.
在庫あり

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS21531DS
IRS21531DS
EA.

Product details

  • VBS UVLO (On)
    9 V
  • VBS UVLO (Off)
    8 V
  • VCC UVLO (Off)
    9 V
  • VCC UVLO (On)
    11 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Configuration
    Half Bridge
  • Channels
    2
  • Turn Off Propagation Delay
    150 ns
  • Turn On Propagation Delay
    680 ns
  • Input Vcc
    10.1 V to 15.4 V
  • Output Current (Sink)
    0.26 A
  • Output Current (Source)
    0.18 A
  • Qualification
    Industrial
  • Voltage Class
    600 V
OPN
IRS21531DSTRPBF
製品ステータス active and preferred
インフィニオンパッケージ
パッケージ名 N/A
包装サイズ 2500
包装形態 TAPE & REEL
水分レベル 2
モイスチャーパッキン DRY
鉛フリー Yes
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:
EA. 在庫あり

製品ステータス
Active
インフィニオンパッケージ
パッケージ名 -
包装サイズ 2500
包装形態 TAPE & REEL
水分レベル 2
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
EA.
在庫あり
EiceDRIVER™ 600 V half-bridge gate driver IC with typical 0.18 A source and 0.26 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs . Also available in 8 Lead PDIP.

機能

  • Integ. 600 V half-bridge driver
  • CT, RT programmable oscillator
  • 15.4 V Zener clamp on Vcc
  • Micropower startup
  • Non-latched shutdown on CT pin
  • Internal bootstrap FET
  • +/- 50 V/ns dV/dt immunity
  • Internal deadtime
  • Typical deadtime 0.6 µs (IRS21513D)
  • Typical deadtime 1.1 µs (IRS2153D)

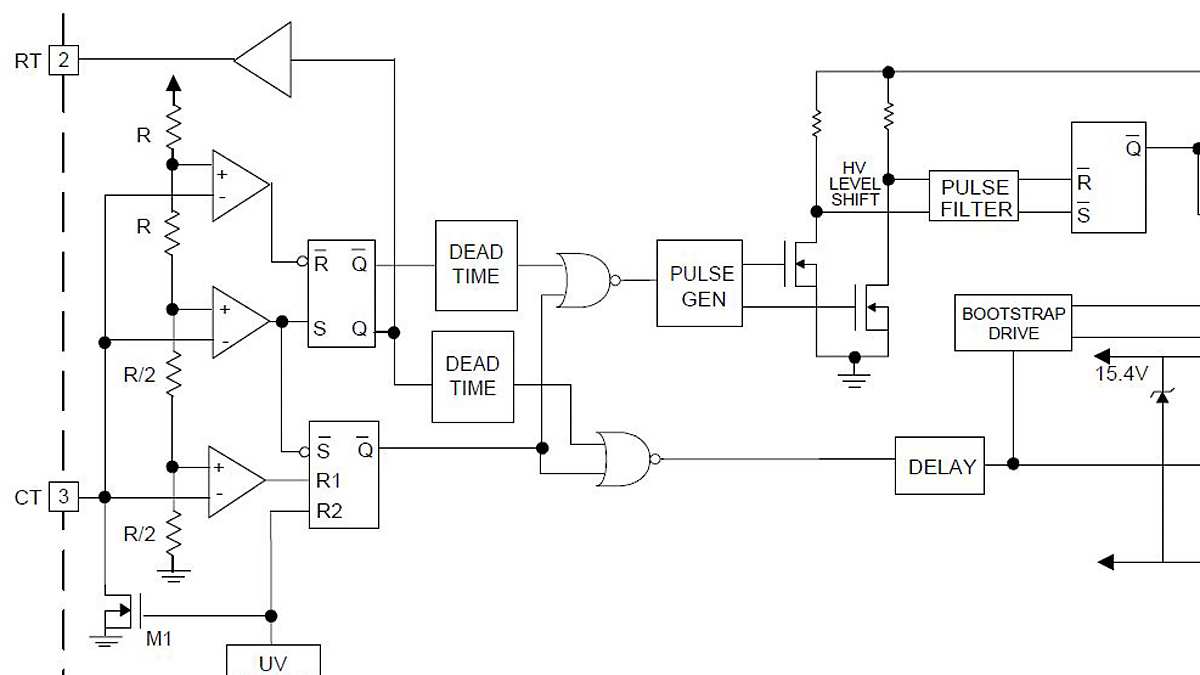

Circuit_Diagramm_IRS21531DS
Circuit_Diagramm_IRS21531DS
Circuit_Diagramm_IRS21531DS Circuit_Diagramm_IRS21531DS Circuit_Diagramm_IRS21531DS
