VD_USB_PAG_65W_COOLGAN

65W USB-PD/PPS power adapter solution using EZ-PD™ PAG1 and CoolGaN™
PCB設計データ

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_USB_PAG_65W_COOLGAN
VD_USB_PAG_65W_COOLGAN
PCB設計データ

製品詳細

  • Pout
    65 W
  • トポロジー
    Flyback
  • ファミリー
    Universal Serial Bus (USB) – Power Delivery Controller
  • ボードタイプ
    Virtual Design
  • 入力タイプ
    AC, DC
  • 出力電圧
    3.3 V to 21 V
  • 対象アプリケーション
    Infotainment, Communication, Power Supplies
  • 認定
    Consumer
  • 説明
    The 65 W USB-PD Type-C PPS power adapter reference design board is built using EZ-PD™ PAG1S and PAG1P controllers together with the Infineon’s high-voltage CoolGaN™ FET. The solution meets the global efficiency standards including DoE level VI/ CoC tier 2 and offers a low standby power.
  • 電源電圧
    240 V
OPN
製哝ステータス
インフィニオンパッケージ
パッケージ坝
包装サイズ
包装形態
水分レベル
モイスポャーパッキン
鉛フリー
ポロゲンフリー
RoHS準拠
Infineon stock last updated:

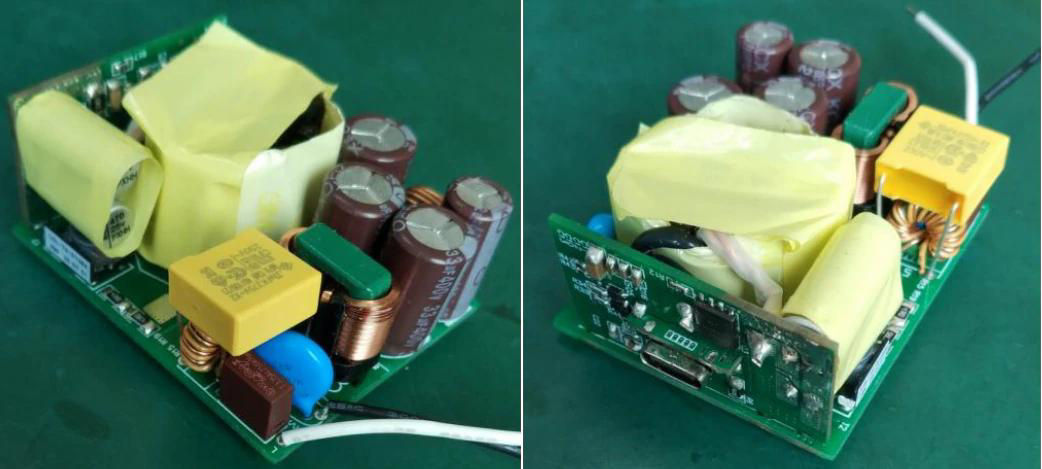

The 65 W type-C PPS reference design integrates Infineon’s EZ-PD™ PAG1S and PAG1P controllers with the CoolGaN™ 600 V GIT HEMT. Compliant with global efficiency standards, including DoE level VI/CoC tier 2, it offers low standby power and high board power density. This solution targets USB PD and QC power adapters, supporting legacy charging requirements and providing hardware design files and firmware for customer use.

機能

  • Supports USB Type-C and USB PD 3.1
  • Fixed PDO:5V/3A, 9V/3A, 15/3A, 20V/2.25A
  • PPS: 3.3 V-16 V/3A, 3 V-21 V/3.25A
  • Support firmware upgrade
  • Passes CoC tier 2 & DoE VI standards
  • Passes CISPR 32 class B CE standard
  • GaN Charger

利点

  • Support firmware upgrade to PD3.2 SPR
  • Low BOM cost
  • Low standby power consumption
  • Programmable power solution
