REF_BGT60LTR11AIP_M0

Reference board with XENSIV™ BGT60LTR11AIP 60 GHz radar sensor and XMC™ Arm® Cortex®-M0 microcontroller
ユーザーマニュアル
ソフトウェア

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_BGT60LTR11AIP_M0
REF_BGT60LTR11AIP_M0
ユーザーマニュアル

製品詳細

  • Number of Rx Antennas max
    1
  • Number of Tx Antennas max
    1
  • Antenna
    Antennas in package
  • Halogen-free
    Yes
  • Family
    XENSIV™ 60GHz Radar Sensors
  • Board Type
    Reference Board
  • Motion
    Yes
  • Input Type
    DC
  • Direction of Motion
    Yes
  • Frequency
    61 GHz to 61.5 GHz
  • Target Application
    Contactless switches, Displays such as TVs
  • Max Detection Range
    14 m
  • Min Detection Range
    0.5 m
  • Product Name
    BGT60LTR11AIP
  • Qualification
    Industrial (JEDEC20/22)
  • Description
    .
  • Speed [m/s]
    Yes
推奨
OPN
REFBGT60LTR11AIPM0TOBO1
製品ステータス active and preferred
インフィニオンパッケージ --
パッケージ名 N/A
包装サイズ 1
包装形態 CONTAINER
水分レベル N/A
モイスチャーパッキン NON DRY
鉛フリー No
ハロゲンフリー No
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス
Active
インフィニオンパッケージ --
パッケージ名 -
包装サイズ 1
包装形態 CONTAINER
水分レベル -
モイスチャーパッキン NON DRY
鉛フリー
ハロゲンフリー
RoHS対応

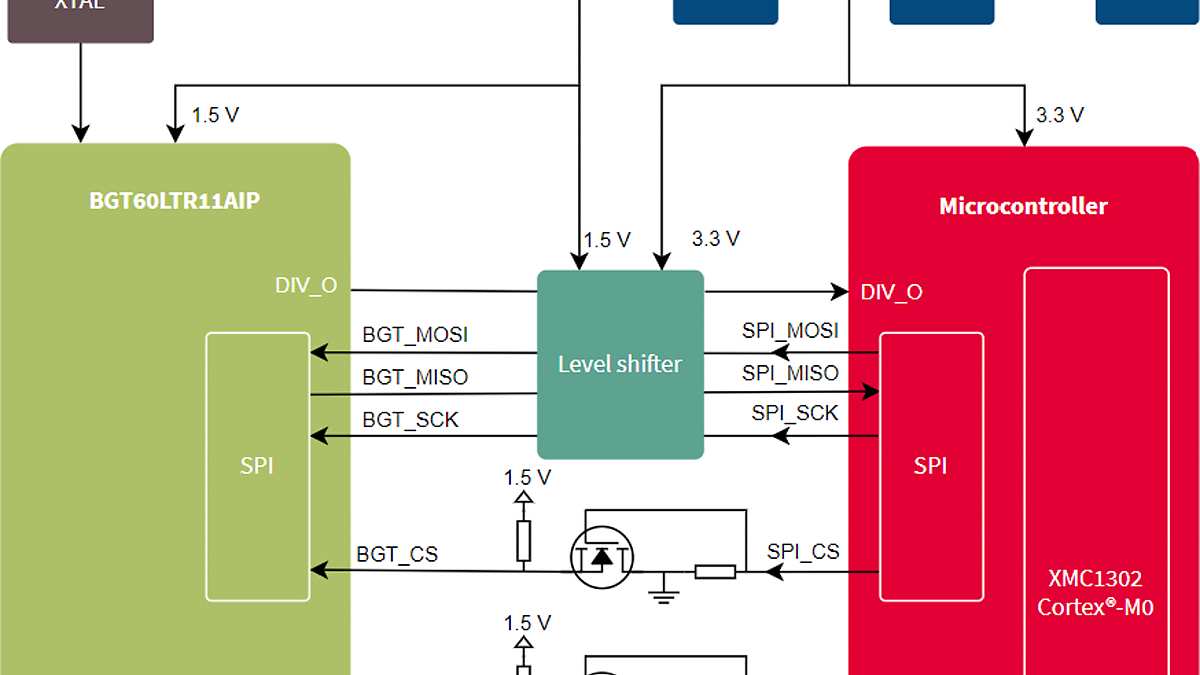

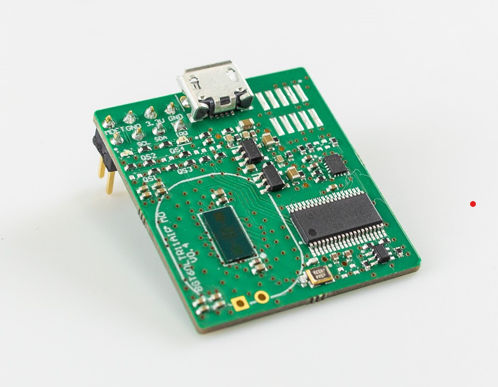

This reference board features XENSIV™ BGT60LTR11AIP radar sensor, configured in SPI mode, and XMC1302 Arm® Cortex®-M0 based microcontroller. It enables low-power radar-based applications, offering a cost-effective replacement for conventional passive infrared (PIR) sensors in low-power or battery-powered applications, operating as a Doppler motion sensor in the 60 GHz ISM band. This board is specifically targeting fully embedded motion detection algorithm implementation, allowing developers to integrate advanced motion sensing capabilities into their designs.

機能

  • 31.1 x 27.4 mm² RF shield form factor
  • BGT60LTR11AIP 1Tx 1Rx Antennas in Package (AIP)
  • 80° Half Power Beam Width (HPBW)
  • SPI interface for config. and data transfer
  • BGT60LTR11AIP radar configured in SPI mode
  • 2 on-board LEDs indicating algorithms' output
  • Operates with Micrium-based GUI
  • Available PCB design data and SW for reference

利点

  • 80° Half Power Beam Width (HPBW)
  • SPI interface for config. and data transfer
  • BGT60LTR11AIP radar configured in SPI mode
  • 2 on-board LEDs indicating algorithms' output
  • Operates with Micrium-based GUI
  • Available PCB design data and SW for reference

用途
