KIT_AK_XC800_FOC_V1
KIT_AK_XC800_FOC_V1

製品詳細

  • Family
    Microcontroller
  • Board Type
    Evaluation Board
  • Target Application
    Motor Control & Drives
  • Product Name
    Application KIT XC800_FOC_V1
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
Application Kit for Field Oriented Control using XC886/888 Facilitates cost-effective evaluation and development of PMSM control applications. Features the CANmotion board with XC886CM MCU and a 3-phase inverter for 24V PMSM motor control. Offers complete Field Oriented Control source code, a free tool chain for rapid development, CAN to USB bridge for parameter adjustments, and pre-compiled demos for easy performance measurement.

機能

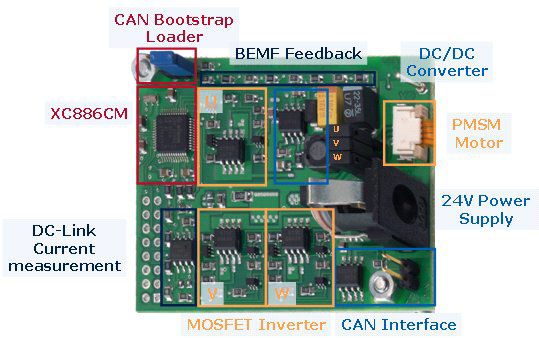

  • CANmotion evaluation board integrating the XC886CM microcontroller and a 3-phase power inverter providing all the necessary functions to control a 24 V PMSM motor
  • Ready to use FOC software, free compiler and debugger
  • USB CAN interface for monitoring
  • DAvE-autocode generator & device configuration tool
  • Low-cost, easy evaluation of FOC based on 8-bit microcontroller
  • All necessary functionality to jump-start FOC development
  • Real-time control of the motor control application
  • Reduced software development time

利点

  • Low-cost, easy evaluation of FOC based on 8-bit microcontroller
  • All necessary functionality to jump-start FOC development
  • Real-time control of the motor control application
  • Reduced software development time
