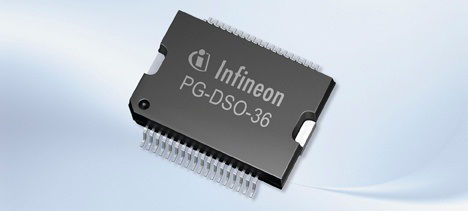

TLE82452-3SA

TLE 82452 is designed for the control of linear solenoids in automatic transmission, electronic stability control, and active suspension applications
データシート
パッケージ

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE82452-3SA
TLE82452-3SA
データシート

Product details

  • RDS (on) (multiple)
    250 (max)
  • SPI
    32 Bit
  • Channels
    2
  • Comments
    2 Channel Integrated Constant Current Control IC
  • Output Current
    1.6 A
  • Operating Voltage
    5.5 V to 40 V
  • Quiescent Current
    0,008 mA
OPN
TLE824523SAAUMA1
製品ステータス not for new design
インフィニオンパッケージ
PG-DSO-36
パッケージ名 N/A
包装サイズ 800
包装形態 TAPE & REEL
水分レベル 3
モイスチャーパッキン DRY
鉛フリー No
ハロゲンフリー Yes
RoHS準拠 Yes
Infineon stock last updated:

製品ステータス not for new design
インフィニオンパッケージ
PG-DSO-36
パッケージ名 -
包装サイズ 800
包装形態 TAPE & REEL
水分レベル 3
モイスチャーパッキン DRY
鉛フリー
ハロゲンフリー
RoHS対応
The two channels function as low-side or high-side drivers, integrating essential components to minimize external requirements. It regulates average current flow in loads up to 1500 mA with 0.73 mA resolution, and features a programmable triangular dither waveform generator for precise control.

機能

  • Two independent low side / high side configurable channels
  • Integrated half-bridge power stages
  • RON(max) = 250 mOhms@ Tj = 150 °C
  • Integrated sense resistor with internal TCR compensation
  • Load current measurement range = 0 mA to 1500 mA (typical)
  • Current setpoint resolution = 0.73 mA
  • Current control accuracy (-40C to 125C)
  • +/- 5mA for load currents less than 500 mA
  • +/- 1% for load currents greater than 500 mA
  •  Current control accuracy (-40C to 150C)
  •  +/- 7.5mA for load currents less than 500 mA
  •  +/- 1.5% for load currents greater than 500 mA
  • Excellent immunity to large load supply voltage changes
  • Integrated dither generator with programmable amplitude & frequency
  • SPI interface for output control, diagnosis, and configuration
  • Independent thermal shutdown for each channel
  • Open load, switch bypass, and over-current protection and diagnosis for each channel
  • Programmable slew rate control for reduced EMI
  • Green Product (RoHS compliant)
  • AEC Qualified

利点

  • +/- 1% Current Accuracy for Entire Channel (-40C to 125C)
  • Very Fast Current Step Response (dependent on solenoid characteristics)
  • Near ZERO Over/Under-shoot on step Response
  • Excellent Battery Ripple Rejection
  • AutoZero feature (automatically eliminates offset error)
  • Ease of use
  • Integrated Power Devices
  • Minimizes number of components placement, simplifies PCB layout
  • Enables current limitation, slew rate control and thermal protection
  • Improved Short-to-Battery performance
  • Integrated Shunt
  • Enables calibration of current accuracy at IC test
  • Simplifies module calibration
  • Active Recirculation
  • Reduces power dissipation
  • Enables integration
  • Enables HS/LS Configuration
