Introducing the PSOC™ Edge E84 HMI kit

The PSOC™ Edge E84 HMI kit is a hardware evaluation platform for rapid prototyping and evaluation of next-generation HMI for Edge AI applications based on the high-performance PSOC™ Edge E84 MCU. This kit provides a variety of sensors and interfaces to get started on HMI use cases and Edge AI designs, in an application-centric form factor.

The PSOC™ Edge E8x family of MCUs contains a high performance M55 MCU with Helium DSP, an Ethos N55 NPU, a low power M33 MCU, and a state-of-the-art secure enclave to allow devices to combine high performance and low power applications with the highest levels of security.

This comprehensive HMI kit provides a 4-inch capacitive touch display, camera, microphones and speakers to evaluate HMI use cases within voice, vision and graphics capabilities as well as a CYW55513 Wi-Fi and BT module.  This evaluation kit helps accelerate time-to-market by enabling ML/AI-powered HMI application designs, built on a robust ecosystem, comprehensive documentation, and full use of Infineon’s ModusToolbox™ software and DEEPCRAFT™ AI Suite

Introducing the PSOC™ Edge E84 Smart HMI Kit

KIT_PSE84_HMI Details

Board features

The PSOC™ Edge E84 HMI Kit has the following features:

  • PSOC™ Edge E84 MCU - PSE846GPS2DBZC4
  • AIROC™ CYW55513IUBGT based Wi-Fi & Bluetooth® combo Murata Type 2FY (LBEE5HY2FY) connectivity module
  • 3.95-inch Raspberry Pi compatible MIPI-DSI capacitive touch TFT LCD (RK040HF22-CT120C from Rocktech Displays Ltd.)

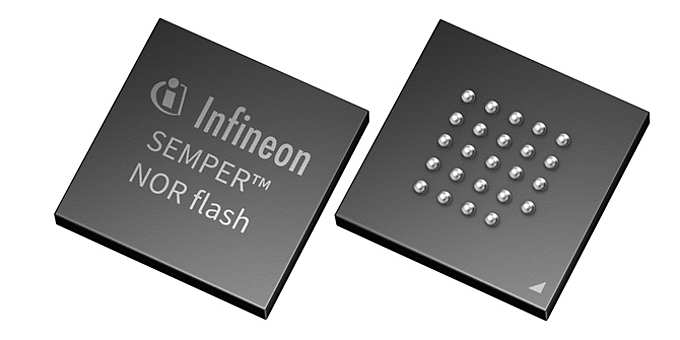

  • 1 Gbit external Octal SPI flash that provides fast, expandable memory for data and code - S28HS01GTGZBHI030
  • 512 Mbit Octal SPI HYPERRAM™ - S80KS5123GABHI023
  • Two XENSIV™ MEMS analog microphones - IM73A135V01
  • Four XENSIV™ MEMS PDM microphones - IM73D122V01
  • XENSIV™ 60 GHz RADAR sensor shield for data collection - BGT60TR13C
  • Device USB Type-C and a USB host camera
  • System power monitoring in real time
  • 6-axis accelerometer and gyroscope (Bosch Sensortech BMI270)
  • Digital humidity and temperature sensor (Sensirion SHT40)
  • KitProg3 onboard SWD programmer/debugger, USB-UART, and USB-I2C bridge functionality
  • Onboard speaker for audio applications
  • MicroSD card interface
  • M.2 (E-key) interface for radio connectivity module
  • Two mikroBUS shuttle interface connectors by MikroElektronika
  •  RGB user LED, two user buttons, a system power reset switch, and a reset switch for PSOC™ Edge E84 MCU
  • One mode selection switch and one status LED for KitProg3
