CYW55513

650 V Silicion Carbide Schottky diode in real2pin package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW55513
CYW55513
Data Sheet

Product details

  • Antenna Configuration
    1x1
  • Bluetooth Interface
    UART/SDIO
  • Bluetooth Specification
    Bluetooth 6.0
  • Core
    Cortex M33
  • Dimensions
    3.57 × 5.32 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • Frequency
    192 MHz
  • GPIOs
    39
  • Launch Date
    2025
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Operating system support
    Linux, Android, RTOS
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    3 V to 4.8 V
  • Package
    WLBGA-143
  • Pitch
    0.35 mm
  • Currently planned availability until at least
    01-01-2040
  • Product Description
    Wi-Fi 6 Combo
  • ROM
    2048 KB
  • SRAM
    768 kByte
  • Wi-Fi Band
    2.4GHz, 5GHz, 6GHz
  • WI-FI Interface
    SDIO/SPI
  • Wi-Fi Specification
    Wi-Fi 6E (802.11.ax)
Recommended
OPN
CYW55513IUBGT
Product Status active and preferred
Infineon Package
SG-XFWLB-143
Package Name WLBGA-143 (002-33373)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
SG-XFWLB-143
Package Name WLBGA-143 (002-33373)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

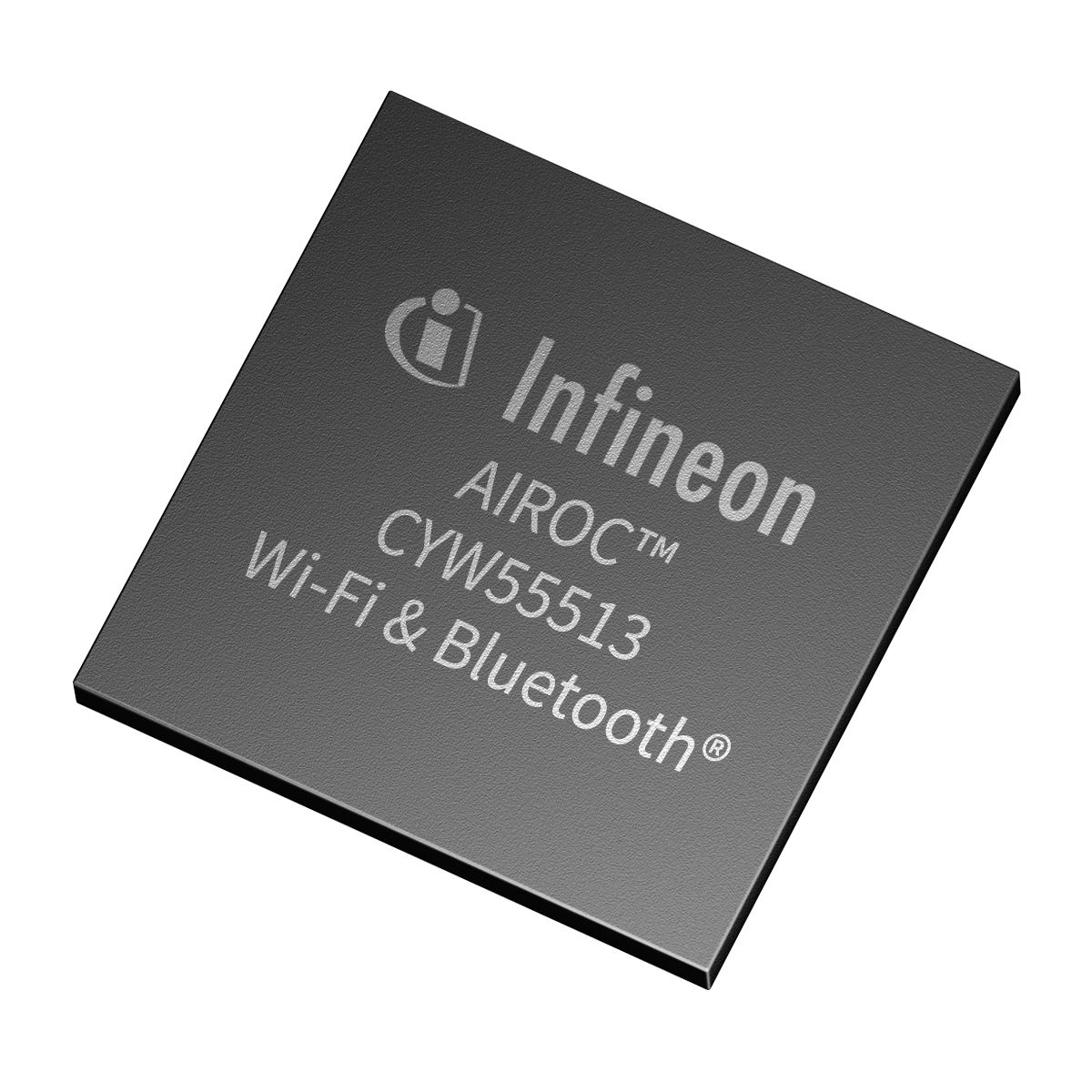

The high-performance, versatile AIROC™ CYW55513 tri-band Wi-Fi 6E and Bluetooth® 5.4 single-chip combo surpasses Wi-Fi- 6/6E wireless standards with many security features and reliable connectivity. This power-efficient design is optimized for smart home, wearables, and other small applications. It offers a cost-effective balance of advanced Wi-Fi 6E and Bluetooth®/BLE features with performance and power savings to meet IoT connectivity needs.

Features

  • 1x1, Tri-Band 2.4/5/6GHz, 20MHz Wi-Fi 6E
  • OFDMA, MU-MIMO, TWT, BSS Coloring, DCM
  • STA and SoftAP mode
  • Network offload power save features
  • WPA2 and WPA3 Security
  • SDIO and GSPI Host Interface
  • Bluetooth®/BLE 5.4
  • Bluetooth A2DP, HFP Audio, LE Audio
  • LE long range, 2Mbps, Adv. Extensions
  • UART or SDIO shared with Wi-Fi
  • -40 to +85C operating temperature range
  • Secure boot, encryption, authentication

Benefits

  • Optimized for IoT applications demands
  • Greenfield 6GHz band for expanded channels
  • Boosts network efficiency
  • Improves range and saves power
  • Bluetooth/BLE Audio hosted or embedded
  • Multi-layer security for more protection

Applications
