TLS202A1MBV

The TLS202A1MBV is a monolithic integrated adjustable linear voltage post regulator for load currents up to 150 mA.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS202A1MBV
TLS202A1MBV
ea.
Data Sheet

Product details

  • Accuracy
    3 %
  • Base Product
    TLS202x1MBVxx
  • Budgetary Price €/1k
    0.41, 0.41
  • Dropout Voltage
    290 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear Post Regulator
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.7 V to 18 V
  • Output Current max
    150 mA
  • Output Voltage Type
    adj.
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2037
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    50 µA
  • Regulator Type
    Post Regulator
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLS202A1MBVHTSA1
Product Status active and preferred
Infineon Package
PG-SCT595-5
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SCT595-5
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The IC regulates input voltage VI (2.7V ≤ VI ≤ 18V) to adjustable output voltage (1.2V to 5.25V) with ±3% precision. Ideal for low standby current applications. Not for direct battery connection. Compact PG-SCT595-5 package. Designed for automotive applications, protected against overload, short circuit, and overtemperature. Suitable for various applications requiring stabilized voltage (1.2V to 5.25V).

Features

  • Adjustable O/P V from 1.2 V to 5.25 V
  • Output V Accuracy of ±3 %
  • Output Currents up to 150 mA
  • I/P V Operating R of 2.7 V to 18 V
  • Low Dropout V: typ. 290mV
  • Very Low Current Consumption: typ. 50 μA
  • Very High PSRR: typ. 65dB at 10kHz
  • Output Current Limitation
  • Short Circuit protected
  • Overtemperature Shutdown
  • Wide Temp. R From -40 °C up to 150 °C
  • Suitable in Automotive Electronics

Diagrams

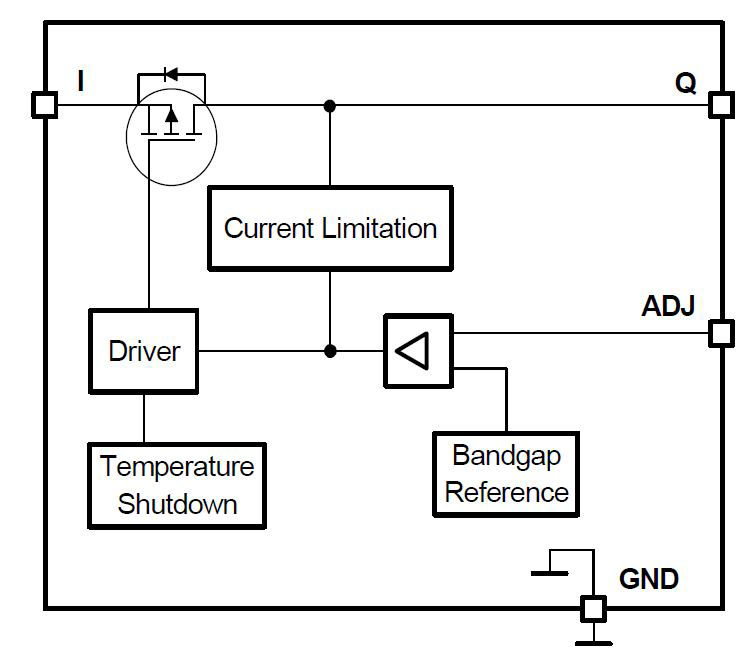

TLE2021A1_Block_Diagram
