TLE7276-2D

END OF LIFE
The TLE7276-2D is a monolithic integrated low dropout voltage regulator for load currents up to 300 mA.
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE7276-2D
TLE7276-2D
View replacement
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    1.01
  • Dropout Voltage
    350 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 42 V
  • Output Current max
    300 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    n.a
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    20 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
OPN
TLE72762DATMA1
Product Status discontinued
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE7276-2 regulates input voltage up to 42V to a precise 5.0V with stability even with ceramic output capacitors down to 470nF. Designed for automotive applications, it includes protection against overload, short circuit, and overtemperature, ensuring reliable operation in harsh environments. Additionally, it is suitable for applications requiring a stabilized 5V voltage. The TLE7272-2D is an available version of this product.

Features

  • Ultra Low Current Consumption 20 µA
  • Output Voltage 5 V ±2%
  • Output Current up to 300 mA
  • Enable Input
  • Very Low Dropout Voltage
  • Output Current Limitation
  • Overtemperature Shutdown
  • Wide Temperature Range From -40 °C up to 150 °C
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Wide input operation and temperature range
  • Very low quiescent current stable with 470nF ceramic capacitor
  • Very low dropout

Diagrams

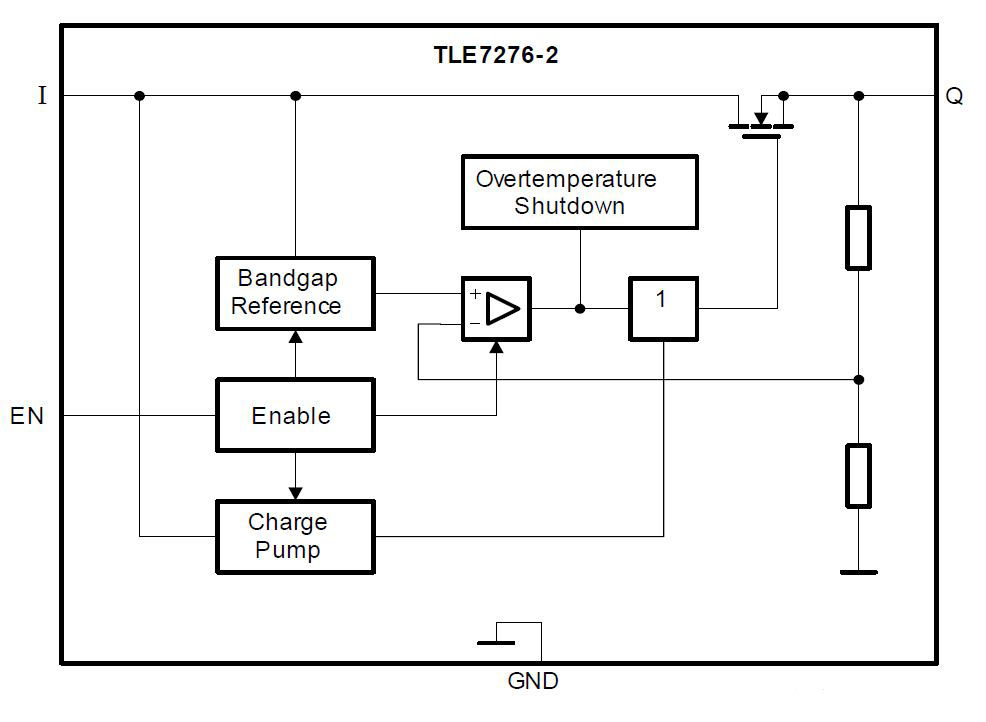

TLE7276-2-Block-Diagram
TLE7276-2-Block-Diagram
TLE7276-2-Block-Diagram TLE7276-2-Block-Diagram TLE7276-2-Block-Diagram
×
