TLE7272-2D

The TLE7272-2D is a LDO for load currents up to 300 mA. An input voltage up to 42 V is regulated to V Q,nom = 5.0 V with a precision of ±2%.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE7272-2D
TLE7272-2D
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    1.05
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 42 V
  • Output Current max
    300 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2037
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    20 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE72722DATMA1
Product Status active and preferred
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE7272-2: Integrated reset circuitry for power on timing and output voltage monitoring. Suitable for µ-controller supply. Stable operation with ceramic output capacitors (down to 470nF). Designed for automotive applications, protected against overload, short circuit, and overtemperature. Output current limitation, overtemperature shutdown circuit. Also suitable for applications needing stabilized 5V voltage.

Features

  • Ultra Low Current Consumption 20 µA
  • Output Voltage 5 V ±2%
  • Output Current up to 300 mA
  • Power-On and Under voltage Reset
  • Reset Low Down to V Q = 1 V
  • Enable Input
  • Output Current Limitation
  • Overtemperature Shutdown
  • -40°C to 150°C Range
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Wide Input Operation&Temperature Range
  • Very low dropout

Diagrams

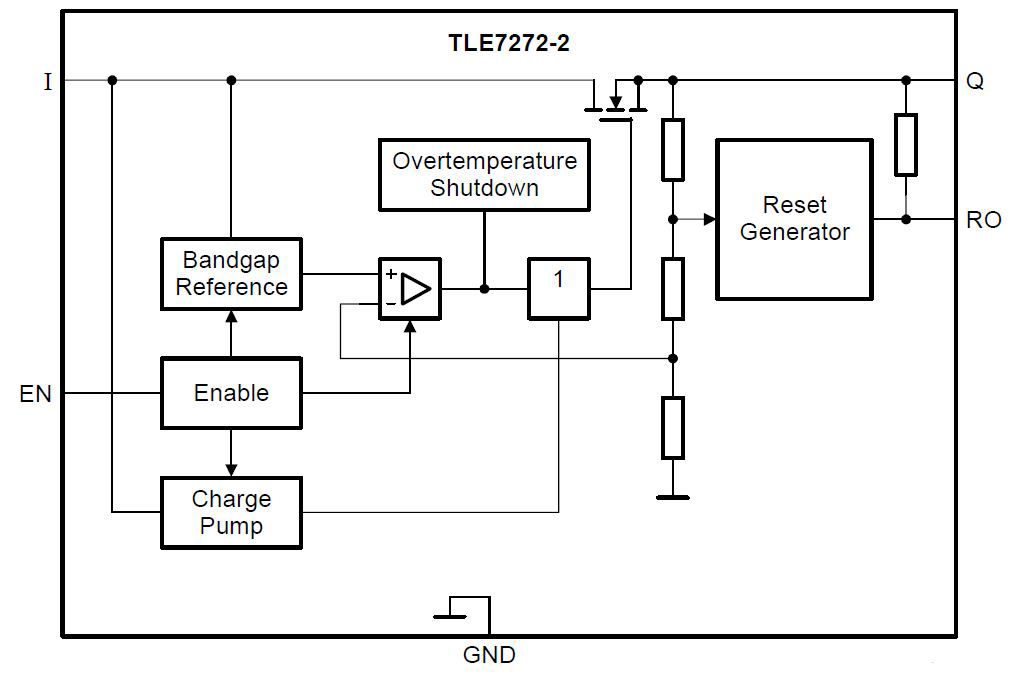

TLE7272-2-Block-Diagram
TLE7272-2-Block-Diagram
TLE7272-2-Block-Diagram TLE7272-2-Block-Diagram TLE7272-2-Block-Diagram
×
