TLE4973-RE35S5-S3510

NEW

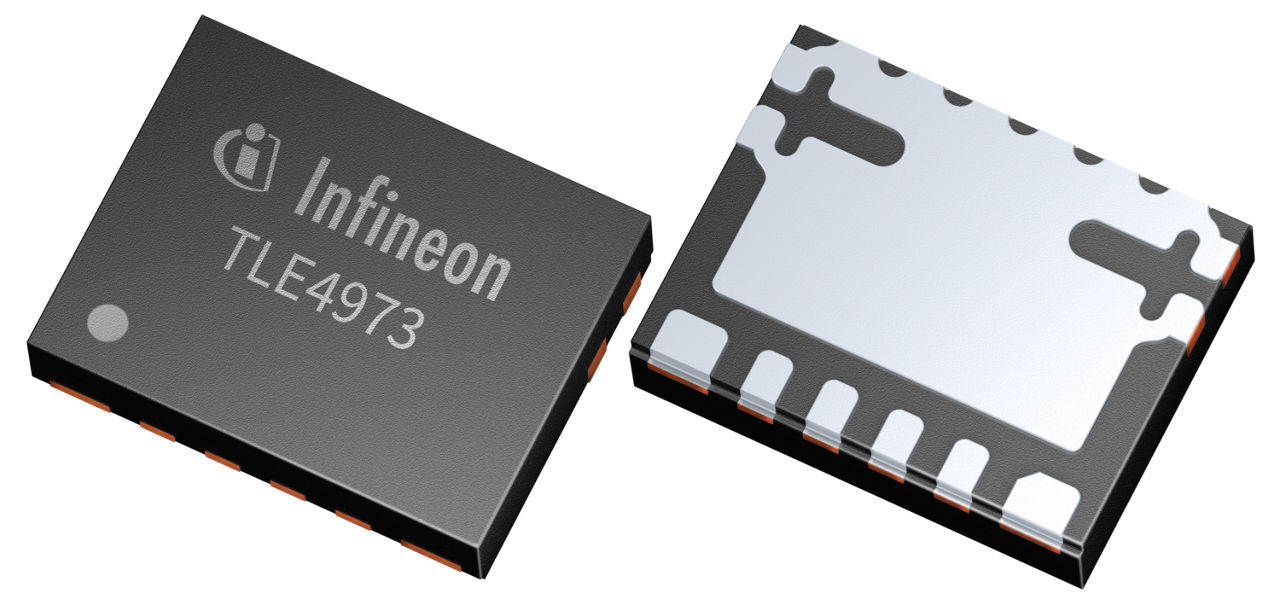

XENSIV™ TLE4973-RE35S5-S3510 - high accuracy coreless current sensor with digital control and diagnostic interface in a leadless VSON-6 package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4973-RE35S5-S3510
TLE4973-RE35S5-S3510
Data Sheet

Product details

  • Accuracy
    2 %
  • Classification
    ISO 26262-compliant ASIL B, AEC-Q100
  • Diagnosis
    OCD, OV, UV, diagnosis mode
  • Interfaces
    Analog output, DCDI programming
  • Measurement range
    20.8 mT
  • Planned to be available until at least
    2039
  • Supply Voltage
    4.5 - 5.5
OPN
TLE4973RE35S5S3510XUMA1
Product Status on request
Infineon Package
PG-VSON-6
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
PG-VSON-6
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE4973-RE35S5-S3510 is a high-precision coreless current sensor with external current rail to measure currents from 100 A on PCB up to several kilo Amps on external busbar, designed for automotive and industrial applications. The -S3510 version is optimised for low offset. Additionally to a fast Over Current Detection (OCD) for fast protection and a low voltage programming pin, the sensor is classified as ASIL B according to the ISO2626.

Features

  • Low drift over temperature and lifetime
  • S3510 version optimized for low offset
  • Fast Over Current Detection
  • DCDI to program 8 sensors with one line
  • ISO 2626 ASIL B classified
  • VSON-6-4 package with small foot print
  • AEC-Q100 grade 0 qualified

Benefits

  • No magnetic core, small size and weight
  • Precise over temperature and life time
  • Fast protection for SiC and GaN devices
  • Simple low voltage digital interface
  • Scalable solution accross power classes
