TLE4290D

END OF LIFE
The TLE4290D is a monolithic integrated low drop voltage regulator which can supply loads up to 450 mA with power good feature.
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4290D
TLE4290D
View replacement
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    1.75
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 42 V
  • Output Current max
    400 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    n.a
  • Power Fail
    no
  • Power Good
    yes
  • Qualification
    Automotive
  • Quiescent Current
    200 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
OPN
TLE4290DATMA1
Product Status discontinued
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
The TLE4290 is a monolithic integrated low drop voltage regulator capable of supplying loads up to 450mA with a power good feature. It regulates an input voltage up to 42V to VQ,nom = 5.0V, designed for supplying μ-controllers in the severe automotive environment. It is protected against overload, short circuit, and over-temperature conditions, suitable for various applications requiring a stabilized 5V voltage.

Features

  • Output voltage 5 V ± 2%
  • Very low current consumption
  • 450 mA current capability
  • Power Good Feature
  • Very low-drop voltage
  • Short-circuit-proof
  • Reverse polarity proof
  • Suitable for use in automotive electronics
  • Green Product (RoHS compliant)
  • AEC Qualified
  • Wide Temperature Range  40 °C = T j ; = 150 °C

Benefits

  • Robust protection features
  • Wide input operation and temperature range

Applications

Diagrams

TLE4290-Block-Diagram
TLE4290-Block-Diagram

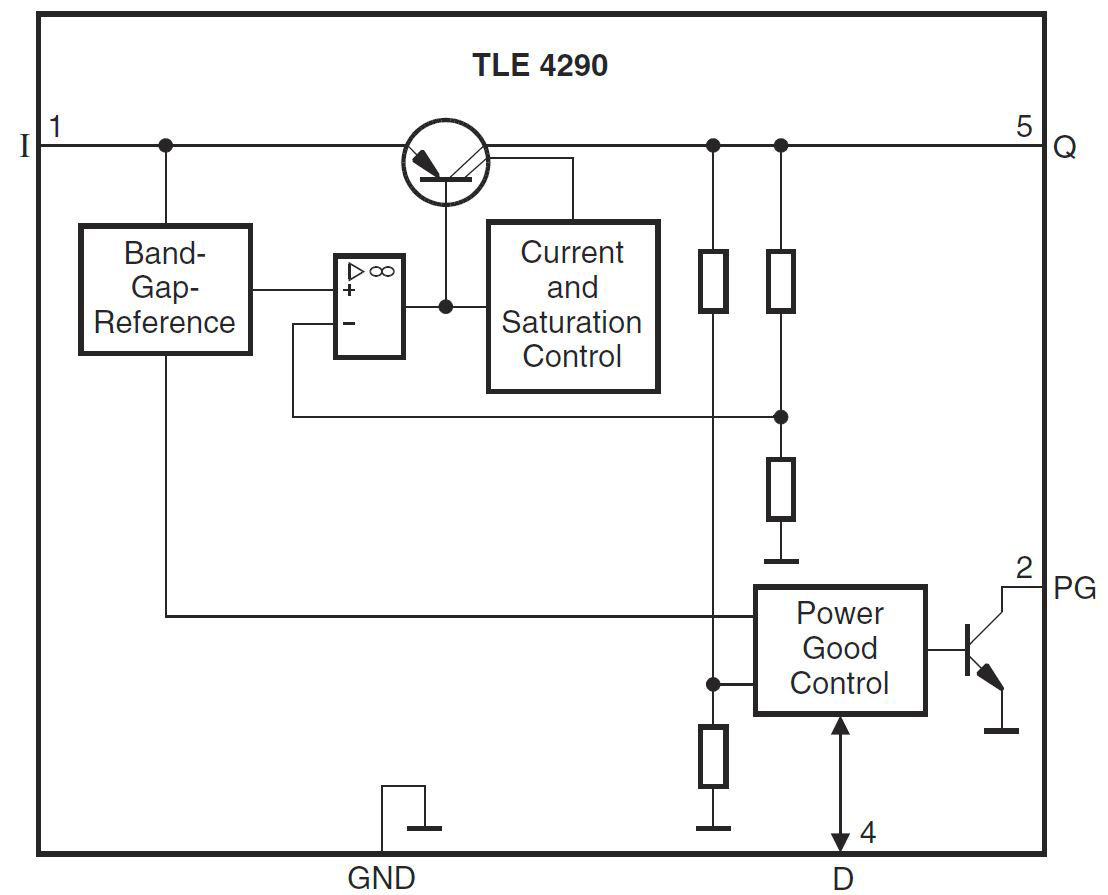

TLE4290-Block-Diagram TLE4290-Block-Diagram TLE4290-Block-Diagram

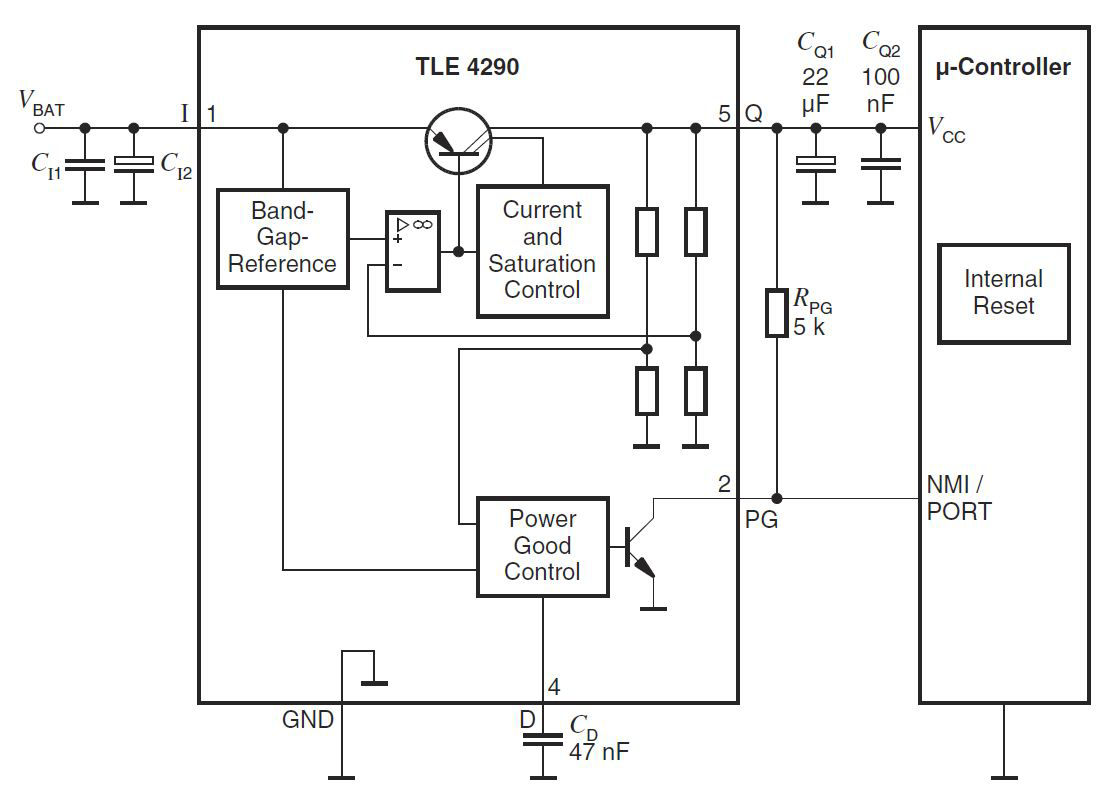

TLE4290-Application-Diagram TLE4290-Application-Diagram TLE4290-Application-Diagram
×
